Garmin
Garmin GT17M-THF, 0 Degrees
£1,199.99
/
Tax included.
Shipping calculated at checkout.
010-02930-00

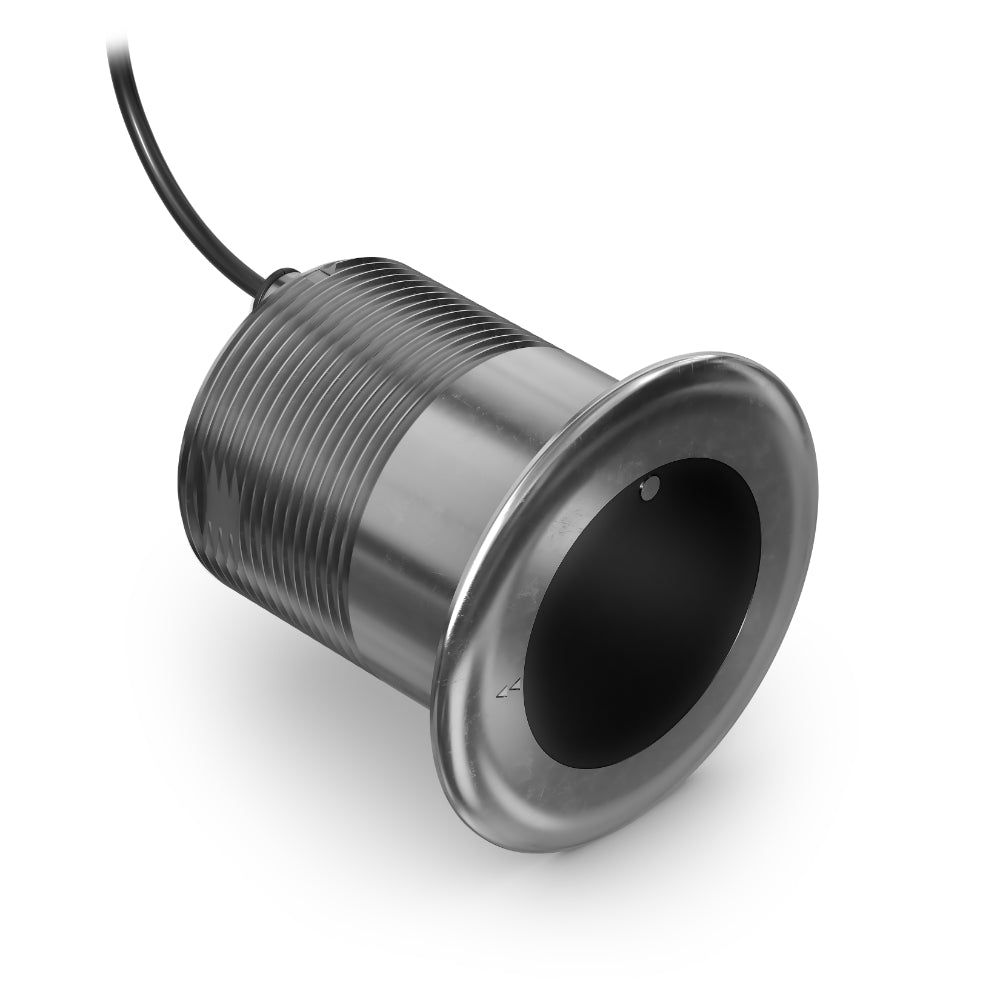

The Garmin GT17M-THF 0 degree is a stainless steel thru-hull transducer delivering 1 kW mid-band CHIRP traditional sonar for serious depth performance. The built-in 0 degree element flush-mounts on hulls of 0 to 5 degrees deadrise with no fairing block, suiting fibreglass through to metal hulls.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GT17M-THF is a high-power 1 kW mid-band CHIRP traditional transducer in a flush stainless steel thru-hull fitting, suitable for fibreglass, wood, composite, aluminium and steel hulls. Operating from 80 to 165 kHz, its concentrated 18 to 9 degree beam puts strong power on targets and reads to 730 m (2,400 ft) in freshwater and 545 m (1,800 ft) in saltwater. This 0 degree version has the correcting angle built into the housing, so it flush-mounts on hulls with 0 to 5 degrees of deadrise without cutting a separate fairing block, and included galvanic isolation components allow safe fitting to metal hulls. It is Garmin RapidReturn compatible, and a 15 m (50 ft) cable terminates in an 8-pin connector. As a 1 kW transducer it should be paired with a 1 kW-capable Garmin sounder; performance depends on the connected display.
PRODUCT DETAILS
- 1 kW mid-band CHIRP traditional sonar (80 to 165 kHz) for deep, high-power performance
- Reaches depths to 730 m (2,400 ft) in freshwater and 545 m (1,800 ft) in saltwater
- Stainless steel thru-hull housing for fibreglass, wood, composite, aluminium and steel hulls
- 0 degree element flush-mounts on hulls with 0 to 5 degrees of deadrise, no fairing block to cut
- Narrow 18 to 9 degree beam concentrates power for strong returns and target separation
- Garmin RapidReturn compatible; 8-pin connector on a 15 m (50 ft) cable
- GT17M-THF stainless steel thru-hull transducer (0 degree element)
- 15 m (50 ft) cable with 8-pin connector
- Two nylon washers, spacer, jam nut and two set screws
- Galvanic isolation components (flange isolator and housing isolator) for metal hulls
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Sonar
| Sonar type | Mid-band CHIRP traditional sonar (single channel); Garmin RapidReturn compatible |
| Frequency | 80 to 165 kHz (dependent upon the chartplotter, fishfinder or sounder) |
| Transmit power | 1 kW (1000 W) |
| Maximum depth | Freshwater 730 m (2,400 ft); saltwater 545 m (1,800 ft), dependent upon water conditions |
Beam
| Beamwidth | 18 to 9 degrees |
Mounting
| Mount type | Thru-hull, flush, with deadrise angle built into the housing (no separate fairing block required); secured with spacer, jam nut and two set screws |
| Deadrise (this variant) | 0 degree element, for hull deadrise 0 to 5 degrees |
| Compatible hull materials | Fibreglass, wood, composite, aluminium and steel. In aluminium or steel hulls the included galvanic isolation components (flange isolator and housing isolator) must be fitted to prevent galvanic corrosion |
| Hole saw required | 98 mm (3 7/8 in) for fibreglass; 101 mm (4 in) for a metal hull |
| Anti-fouling | Apply water-based anti-fouling paint every six months; never use ketone-based paint |
Physical
| Housing material | Stainless steel |
| Weight | 3.83 kg (8.44 lb); add 198 g (7 oz) for the metal-hull isolation components |
| Dimensions | Housing diameter 95 mm (3.74 in); flange diameter 135 mm (5.31 in); height 132 mm (5.20 in) |
| Operating temperature | 0 to 50 C (32 to 122 F) |
| Storage temperature | -40 to 70 C (-40 to 158 F) |
Connectivity
| Connector | 8-pin |
| Cable length | 15 m (50 ft) |
Compatibility
| Compatible devices | Connects to a Garmin chartplotter, fishfinder or sonar black box with an 8-pin sonar port; as a 1 kW transducer it requires a 1 kW-capable Garmin sounder. Garmin RapidReturn function depends on sonar module and chartplotter compatibility. Performance dependent upon the chartplotter, fishfinder or sounder model; a Garmin chartplotter software update is required at installation. |
General
| In the box | GT17M-THF stainless steel thru-hull transducer (0 degree) with 15 m cable, two nylon washers, spacer, jam nut, two set screws, and galvanic isolation components (flange isolator and housing isolator) for metal-hull installation, documentation |
No videos available for this product.
What sonar does the GT17M-THF provide?
It is a 1 kW mid-band CHIRP traditional transducer covering 80 to 165 kHz, designed for deep, high-power traditional sonar with strong target separation. It is Garmin RapidReturn compatible and supports a water-temperature reading on compatible displays. It does not provide ClearVu or SideVu scanning sonar.
Do I need a fairing block with this transducer?
No. The deadrise correction is built into the housing. This 0 degree version suits hulls with 0 to 5 degrees of deadrise. Point the arrow on the top to the keel so the internal angle aligns with the hull. Choose the 0 degree variant for 0 to 5 degrees, the 12 degree variant for 6 to 16 degrees, or the 20 degree variant for 17 to 24 degrees.
Which hull types can it be fitted to?
It has a stainless steel housing suitable for fibreglass, wood, composite, aluminium and steel hulls. When fitting it to an aluminium or steel hull you must install the included galvanic isolation components (flange isolator and housing isolator) to prevent galvanic corrosion.
How deep will it read?
Maximum depth is 730 m (2,400 ft) in freshwater and 545 m (1,800 ft) in saltwater, depending on water conditions, bottom type and the connected display.
What chartplotter or sounder do I need?
It uses an 8-pin connector on a 15 m (50 ft) cable. As a 1 kW transducer it should be connected to a 1 kW-capable Garmin sounder or sonar black box. Garmin RapidReturn depends on the sonar module and chartplotter. Update your chartplotter software when you install it.
