Maretron Depth Speed Temperature Triducer 100 Meter Depth
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

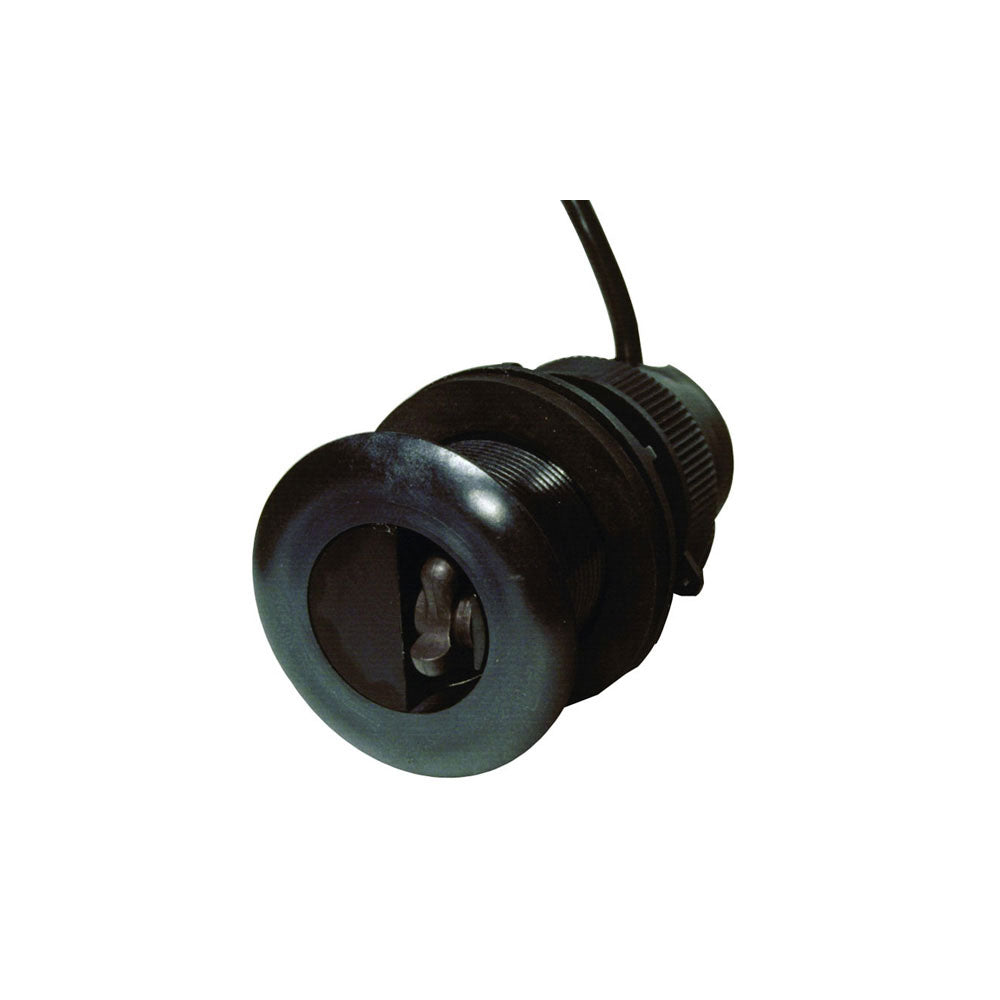

The Maretron DST110 Smart Retractable Depth/Speed/Temperature Triducer delivers precise digital depth, accurate speed and exact water temperature, even at speeds above 40 knots. It detects depth with a 235 kHz transducer, speed with a paddlewheel and Hall effect sensor, and temperature with a precision thermistor, then reports all three parameters directly onto your NMEA 2000 network.
Patented Smart sensor technology means no programming or calibration is needed out of the box, while user-customisable calibrations for speed and temperature let you fine-tune readings for your installation. The wide beam width is tolerant of most deadrise angles, and at 235 kHz the DST110 can double as a fish-finding aid, making it well suited to sport, commercial and sailing vessels of all sizes.
The retractable and removable sensor lifts out for cleaning and can be replaced with the supplied blank plug when the vessel is docked for extended periods or trailered, preventing damage and reducing fouling. Plastic, bronze or stainless steel housing options make it compatible with any hull material, and it is CE compliant to IEC 60945.
PRODUCT DETAILS
- Combined depth, speed and water temperature triducer
- Depth 0.4 to 100 metres, tolerant of most deadrise angles
- Speed 1 to 50 knots, temperature -10C to +40C
- No programming or calibration required out of the box
- Retractable, removable sensor with supplied blank plug
- Plastic, bronze or stainless steel housing for any hull
- Reports directly onto the NMEA 2000 network
- DST110 Depth/Speed/Temperature Triducer (100 metre depth)
- Blank plug for sensor removal
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Depth
| Operating Frequency | 235 kHz (wide beam angle) |
| Beam Width | 10 deg x 44 deg |
| Minimum Depth | 0.4 metres |
| Maximum Depth | 100 metres |
| Depth Accuracy | +/-20cm (0.6-7m), +/-3% (7-100m) |
| Depth Tracking Speeds | Up to 50 knots |
| Transmission Power | 100 Watts (2% duty cycle) |
Speed
| Speed Sensor | Paddlewheel |
| Speed Range | 1-50 knots |
Temperature
| Water Temperature Range | -10C to 40C |
| Water Temperature Accuracy | +/-1.0C |
| Water Temperature Resolution | 0.01C |
Electrical
| Operating Voltage | 9 to 32 Volts DC |
| Power Consumption | <200mA average |
| Load Equivalence Number (LEN) | 4 |
| Reverse Battery Protection | Yes (indefinitely) |
Mechanical
| Size | 74.7mm dia. x 123.7mm tall (2.94" dia. x 4.87" tall) |
| Weight | 340 g (12 oz) |
| Hole Diameter for Mounting | 51mm (2") |
| Housing Options | Lexan / bronze / stainless steel |
Environmental
| Degree of Protection | IP68 (submerged) |
| Operating Temperature | -10C to 40C |
| Storage Temperature | -30C to 70C |
NMEA 2000
| Certification Level | Level B+ |
Certifications
| Standards | IEC 60945, IEC 61162-3, FCC and CE Mark |
