Garmin

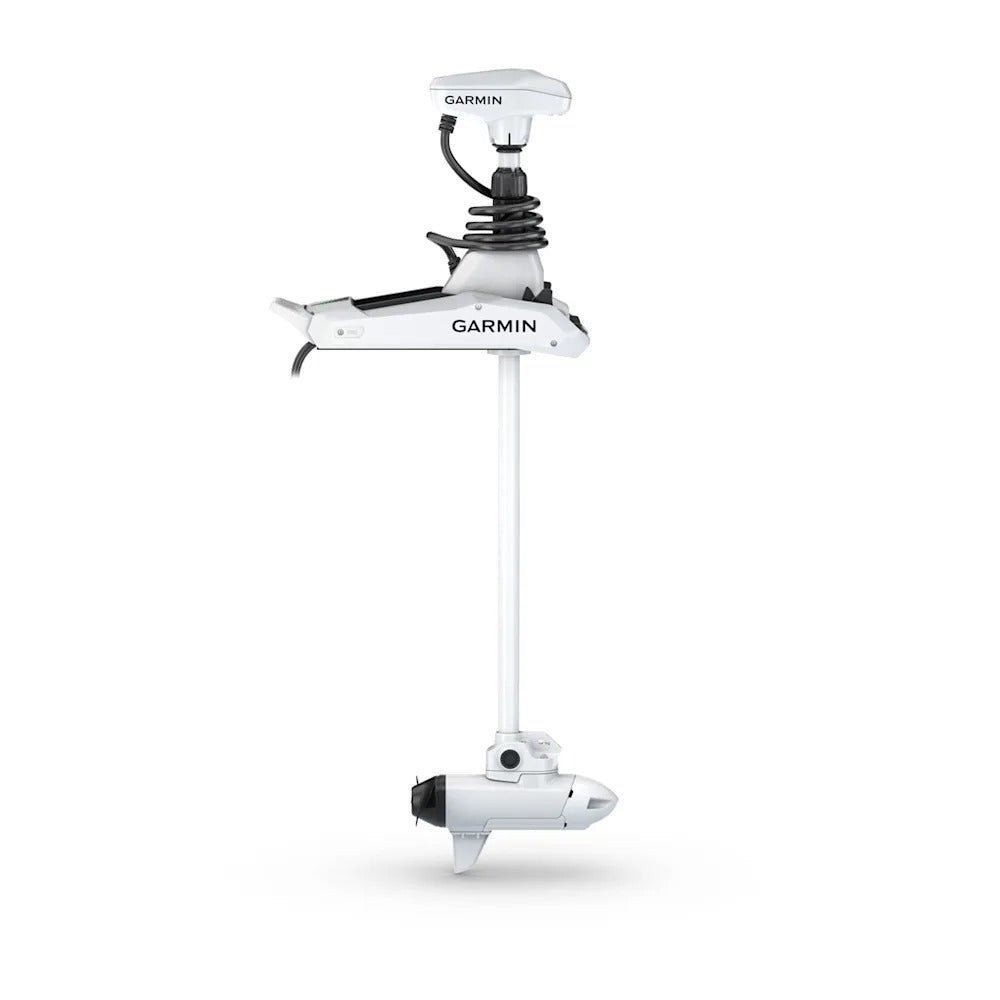

Force® Kraken Trolling Motor, White, 48" trolling motor with remote control
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin Force Kraken takes the proven Force platform and rebuilds it with true reverse thrust and an internally routed sonar cable. A quiet brushless motor delivers up to 100 lb of peak thrust while sipping power, and this compact 48 in. shaft suits boats with a lower-profile bow. Reverse thrust lets you back the bow off cover and hold position more precisely than a forward-only motor.
This white model is supplied with a handheld remote control and ships as a motor only, ready for sonar: add a GT56UHD-TR transducer to gain Garmin ClearVu and SideVu ultra-high-definition scanning and traditional CHIRP sonar. The shaft is engineered so a forward-facing sonar cable can be routed internally, making the Kraken ready for LiveScope. Full GPS autopilot adds anchor lock, heading hold and route and track following, with control from the remote, the wireless foot pedal, a compatible Garmin chartplotter, the ActiveCaptain app or a Garmin watch.
PRODUCT DETAILS
- Up to 100 lb of peak thrust from a quiet, efficient brushless motor
- Compact 48 in. shaft suited to lower-profile bows
- Supplied with a handheld remote control
- Sonar-ready: add a GT56UHD-TR transducer for ClearVu, SideVu and CHIRP
- Route a forward-facing sonar cable inside the shaft for LiveScope-ready scanning
- GPS anchor lock, heading hold and route and track following
- True reverse thrust for finer boat positioning
- Runs on a 24 V or 36 V battery system (36 V for full thrust)
- Force Kraken trolling motor (48 in. shaft, white) with mount
- Handheld remote control
- Wireless foot pedal
- Power cable
- Stabiliser bar
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Motor
| Peak Thrust | Up to 100 lbf (445 N) nominal; brushless motor |
| Motor Type | Brushless, variable-speed propeller drive with reverse thrust |
| Shaft Length | 48 in. (1.22 m); stowed overall length 156 cm (61 7/16 in.) |
| Shaft Material | Fibreglass |
Electrical
| Rated Input Voltage | 24 / 36 Vdc capable (operating range 20 to 45 Vdc) |
| Input Amperage | 60 A continuous |
| Circuit Breaker | 42 Vdc or greater, suitable for 60 A continuous (not included; do not exceed 90 A) |
Sonar
| Sonar Compatibility | Sonar-ready; transducer not included. Accepts a Garmin GT56UHD-TR transducer for ClearVu, SideVu and CHIRP sonar |
| Forward-facing Sonar Ready | Transducer cable can be routed inside the shaft to add forward-facing sonar such as LiveScope |
Control
| Control Methods | Handheld remote control (included), wireless foot pedal, compatible Garmin chartplotter, ActiveCaptain app and compatible Garmin watch |
| Autopilot Features | GPS anchor lock (position hold), heading hold, route and track following, reverse thrust |
Physical
| Weight (motor, mount, cables) | 22.6 kg (50 lb) - 48 in. white model |
| Mount and Housing Material | Aluminium mount and motor housing; plastic shaft cap, display panel and side panels |
| Water Rating | Propeller drive motor IPX8; steering and display housings IPX7; shaft cap IPX5 |
General
| Mount Type | Bow-mount, freshwater; short shaft suited to lower-profile bows |
| Colour | White |
