Scanstrut DS21A-P Small Cable Seal - Plastic - Grey Scanstrut DS21A-P Small Cable Seal - Plastic - Grey
Scanstrut DS21A-P Small Cable Seal - Plastic - Grey

Scanstrut

Scanstrut DS21A-P Small Cable Seal - Plastic - Grey

£28.99
Tax included. Shipping calculated at checkout.
DS21A-P

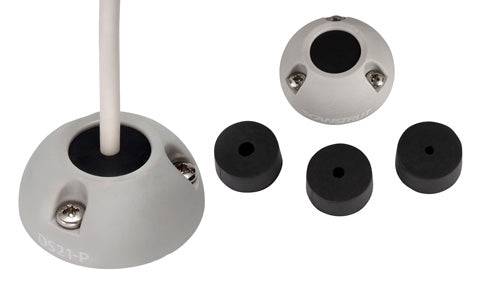

The Scanstrut DS21A Small is a vertical entry cable seal configured for one larger cable or connector up to around 21mm. Moulded in grey high-impact plastic, it routes a heavier lead through a deck or bulkhead and seals the entry to IP68 watertight. You install it without removing the connector, and no sealant is required.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Scanstrut DS21A Small is built around a single larger cable or connector up to roughly 21mm, making it the seal of choice for chunkier runs such as power feeds, radar cables and multi-core electronics leads that will not pass through a smaller bung.

The grey low-profile dome is ultra-strong and impact-resistant, and the included pre-drilled, blank and split bungs let one seal accommodate a range of diameters up to its limit. Captive nuts make assembly fast and easy to repeat on later installs.

Because the cable is routed without removing its connector and no sealant touches the bungs, a dependable IP68 waterproof entry for a single heavy lead is achieved quickly.

PRODUCT DETAILS

  • Watertight cable seal for routing a single cable through a deck or panel
  • Suits cable diameters from 4 to 9 mm (0.17-0.31 in)
  • 49 mm flange with a 45.7 mm cut-out
  • Graduated bungs to match the exact cable size
  • No messy sealant needed on the bungs
  • Supplied with stainless fixings and gasket
  • Cable seal shell x1
  • Base x1
  • Gasket x1
  • Sealing bungs x4
  • No. 6 x 16 self-tapping screws x3
  • M4 x 10 bolts x3
  • Installation instructions

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

General

Cable typeSingle cable
Cable diameter range4-9 mm (0.17-0.31 in)
OrientationVertical (deck / top entry)
Waterproof ratingWatertight seal

Dimensions

Outer flange diameter49 mm (1.93 in)
Bore / cable opening diameter21 mm (0.83 in)
Height20.5 mm (0.81 in)

Fixing

Cut-out diameter45.7 mm (1.8 in)
Fixings3 x No. 6 x 16 self-tapping screws and 3 x M4 x 10 bolts (supplied)
Pilot hole2.5 mm (3/32 in) soft material, 3 mm (1/8 in) hard material

Materials

Trim materialPlastic
Sealing bungs4 x graduated bungs
