Scanstrut DS21A-S Small Cable Seal - Stainless Steel
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

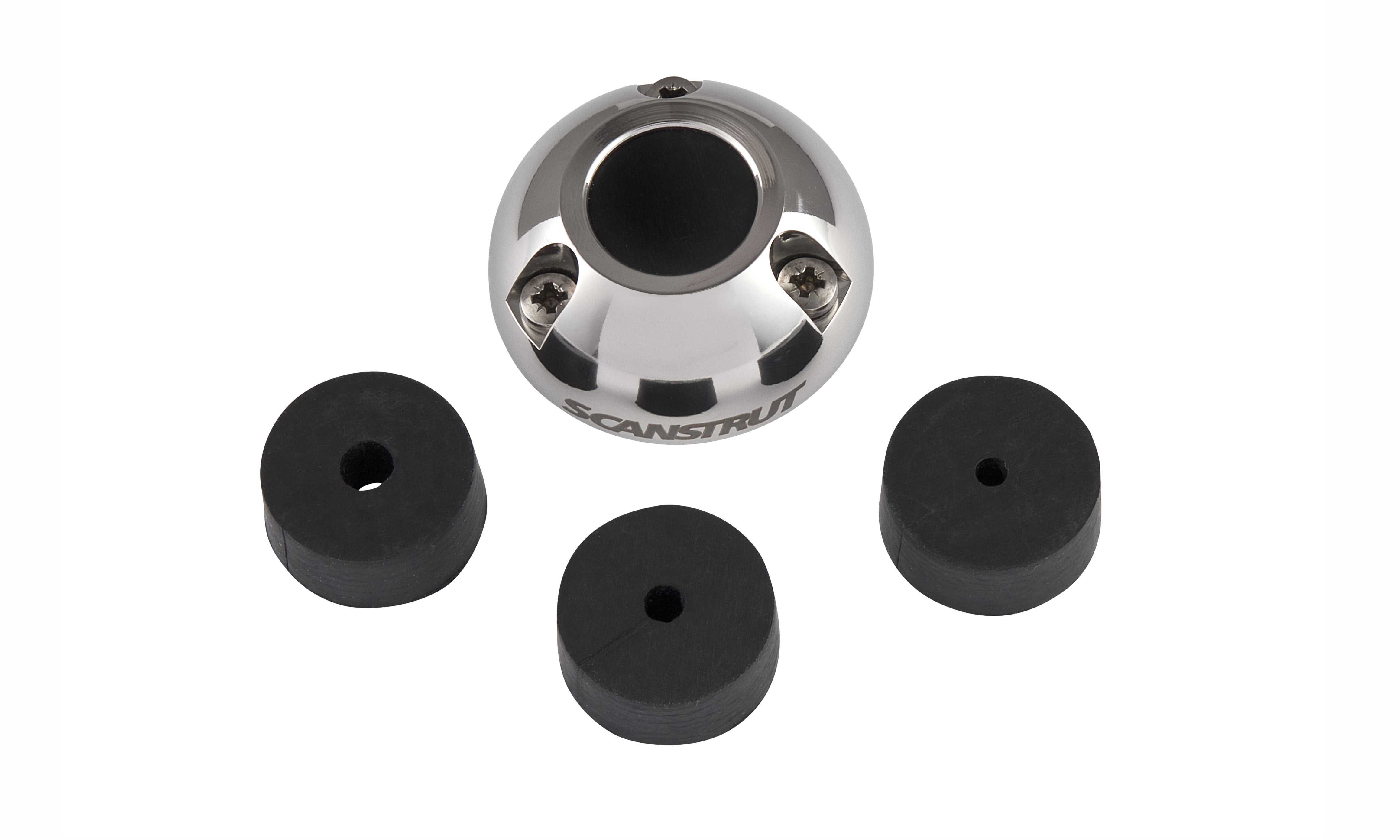

The Scanstrut DS21A Small in 316 stainless steel pairs the capacity for a single larger cable or connector up to roughly 21mm with a premium marine-grade finish, suiting power and radar runs on flybridges, arches and exposed helm stations.
The polished 316 stainless dome resists salt-water corrosion and lends a high-end look alongside quality hardware, while the included pre-drilled, blank and split bungs let one seal adapt across a range of diameters up to its limit. Captive nuts give fast, repeatable assembly.
In keeping with the range you install it without removing the connector and without sealant, achieving a clean IP68 waterproof entry for a single heavy lead in minutes.
PRODUCT DETAILS
- Watertight cable seal for routing a single cable through a deck or panel
- 316 stainless steel trim for a premium, corrosion-resistant finish
- Suits cable diameters from 4 to 9 mm (0.17-0.31 in)
- 49 mm flange with a 45.7 mm cut-out
- Graduated bungs to match the exact cable size
- No messy sealant needed on the bungs
- Cable seal shell x1 (316 stainless steel)
- Base x1
- Gasket x1
- Sealing bungs x4
- No. 6 x 16 self-tapping screws x3
- M4 x 10 bolts x3
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Cable type | Single cable |
| Cable diameter range | 4-9 mm (0.17-0.31 in) |
| Orientation | Vertical (deck / top entry) |
| Waterproof rating | Watertight seal |
Dimensions
| Outer flange diameter | 49 mm (1.93 in) |
| Bore / cable opening diameter | 21 mm (0.83 in) |
| Height | 20.5 mm (0.81 in) |
Fixing
| Cut-out diameter | 45.7 mm (1.8 in) |
| Fixings | 3 x No. 6 x 16 self-tapping screws and 3 x M4 x 10 bolts (supplied) |
| Pilot hole | 2.5 mm (3/32 in) soft material, 3 mm (1/8 in) hard material |
Materials
| Trim material | 316 stainless steel |
| Sealing bungs | 4 x graduated bungs |
