Vesper

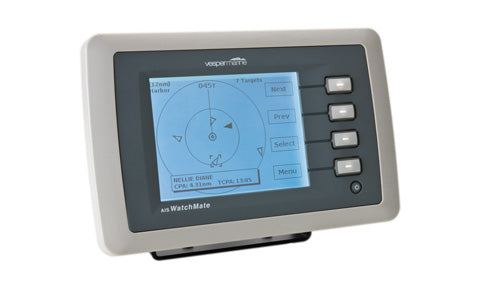

Vesper WatchMate 850 Class B Standalone AIS Transponder
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Vesper WatchMate 850 is an award winning standalone Class B AIS transponder with an integrated colour LCD display, designed to bring dedicated AIS collision awareness to any helm without the need for a separate chartplotter. It transmits your vessel's position and receives data from all nearby Class A and Class B equipped vessels, presenting them on a clear, prioritised display.
An internal GPS patch antenna is built in, so in most installations no external antenna needs to be wired. The intelligent display filters out non priority targets and highlights only the vessels that may pose a collision risk, with graphical crossing predictions that show whether to turn to port or starboard. Multiple location based profiles, an anchor watch and configurable alarms are all managed directly on the unit.
Built for reliable offshore use, the WatchMate 850 is fully waterproof to IPx7, consumes very little power and includes a waterproof USB connection for interfacing to a PC. This model is discontinued; Vesper Marine is now part of Garmin and the WatchMate line has been superseded.
PRODUCT DETAILS
- Standalone Class B AIS transponder with dedicated colour LCD display, no chartplotter required
- Built in GPS patch antenna eliminates the need for an external antenna in most installations
- Intelligent target prioritisation and graphical crossing display show real collision risks
- Location based profiles, anchor watch and fully configurable alarm filtering
- Silent Mode inhibits transmissions while receivers and GPS keep running
- Fully waterproof to IPx7 with waterproof USB connection for PC interfacing
- Very low power consumption at 3 watts nominal
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
AIS
| AIS class | Class B (CSTDMA) |
| Receivers | 2 AIS, 1 DSC (timeshared) |
| Transmitters | 1 AIS |
| Transmit power | 33 dBm (2 W) |
| Receive sensitivity | -113 dBm |
GPS
| GPS receiver | 50 channel, built in patch antenna (TNC for optional external antenna) |
Display
| Display | 125 mm (5") FSTN 320 x 240 backlit LCD |
Connectivity
| Serial data | 1 USB (mini), 1 NMEA 0183 input (RS422), 1 NMEA 0183 output (RS422) |
| VHF antenna | PL-259 connector, 50 ohm, max 2:1 VSWR |
Electrical
| Power supply | 12-24 VDC, 3 W nominal |
| External alarm output | Maximum 150 mA |
Physical
| Dimensions | 208 mm W x 135 mm H x 76 mm D |
| Waterproof rating | IPx7 (USCG CFR-46) |
| Operating temperature | -25 C to +55 C |
