Vesper WatchMate XB-8000 smartAIS Transponder
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

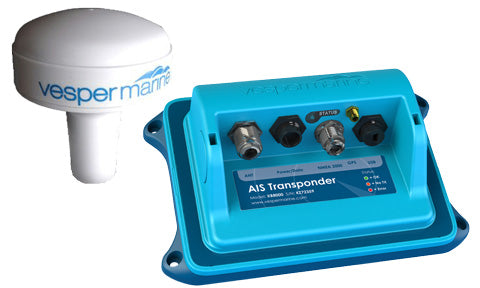

The Vesper WatchMate XB-8000 is a low profile black box Class B smartAIS transponder that packs a built in WiFi router, a fully certified NMEA 2000 and NMEA 0183 gateway, waterproof USB and a 50 channel GPS receiver into a single waterproof enclosure. It transmits your vessel's position and receives Class A and Class B AIS data from surrounding traffic, feeding it to your existing plotter, MFD or navigation software.
The integrated WiFi allows AIS and GPS data to be viewed wirelessly on up to five devices at once, so a laptop, phone and tablet can all display live traffic from anywhere on board. A free companion app provides configuration, status monitoring and remote control of Silent Mode, while smartAIS safety features add anchor watch and man overboard alarms. The included external GPS antenna ships with a 10 m cable.
Multi processor architecture with dedicated AIS processors ensures fast, reliable data acquisition, and galvanically isolated ports protect the transponder and connected equipment. This model is discontinued following Garmin's acquisition of Vesper Marine.
PRODUCT DETAILS
- Class B smartAIS transponder in a compact, fully waterproof black box enclosure
- Built in WiFi serves AIS and GPS data to up to five devices simultaneously
- Fully certified NMEA 2000 plus NMEA 0183 and waterproof USB connectivity
- 50 channel GPS receiver with WAAS and EGNOS, external antenna with 10 m cable included
- smartAIS anchor watch and man overboard alarms with free companion app
- Galvanically isolated ports protect the transponder and connected equipment
- Very low power consumption and IPx7 waterproof rating
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
AIS
| AIS class | Class B (CSTDMA) |
| Receivers | 2 AIS, 1 DSC (timeshared) |
| Transmitters | 1 AIS |
| Transmit power | 33 dBm (2 W) |
| Receive sensitivity | -113 dBm |
GPS
| GPS receiver | 50 channel with WAAS and EGNOS, external antenna with 10 m cable included |
Connectivity
| Networking | NMEA 2000, NMEA 0183, Wireless 802.11 b/g |
| Wireless | Access Point for up to 5 devices or client of existing router |
| Wireless security | WPA / WPA2 Personal (PSK) |
| Serial data | 1 isolated USB (mini), 1 isolated NMEA 0183 input (RS422), 1 NMEA 0183 output (RS422) |
| VHF antenna | 50 ohm, 156-162 MHz, max 2:1 VSWR, PL-259 connector |
Electrical
| Power supply | 12-24 VDC, 4 W nominal |
Physical
| Dimensions | 200 mm W x 130 mm H x 60 mm D |
| Waterproof rating | IPx7 (USCG CFR-46) |
| Operating temperature | -25 C to +55 C |
Approvals
| Approvals | BSH, BABT, CE, FCC, US Coast Guard |
