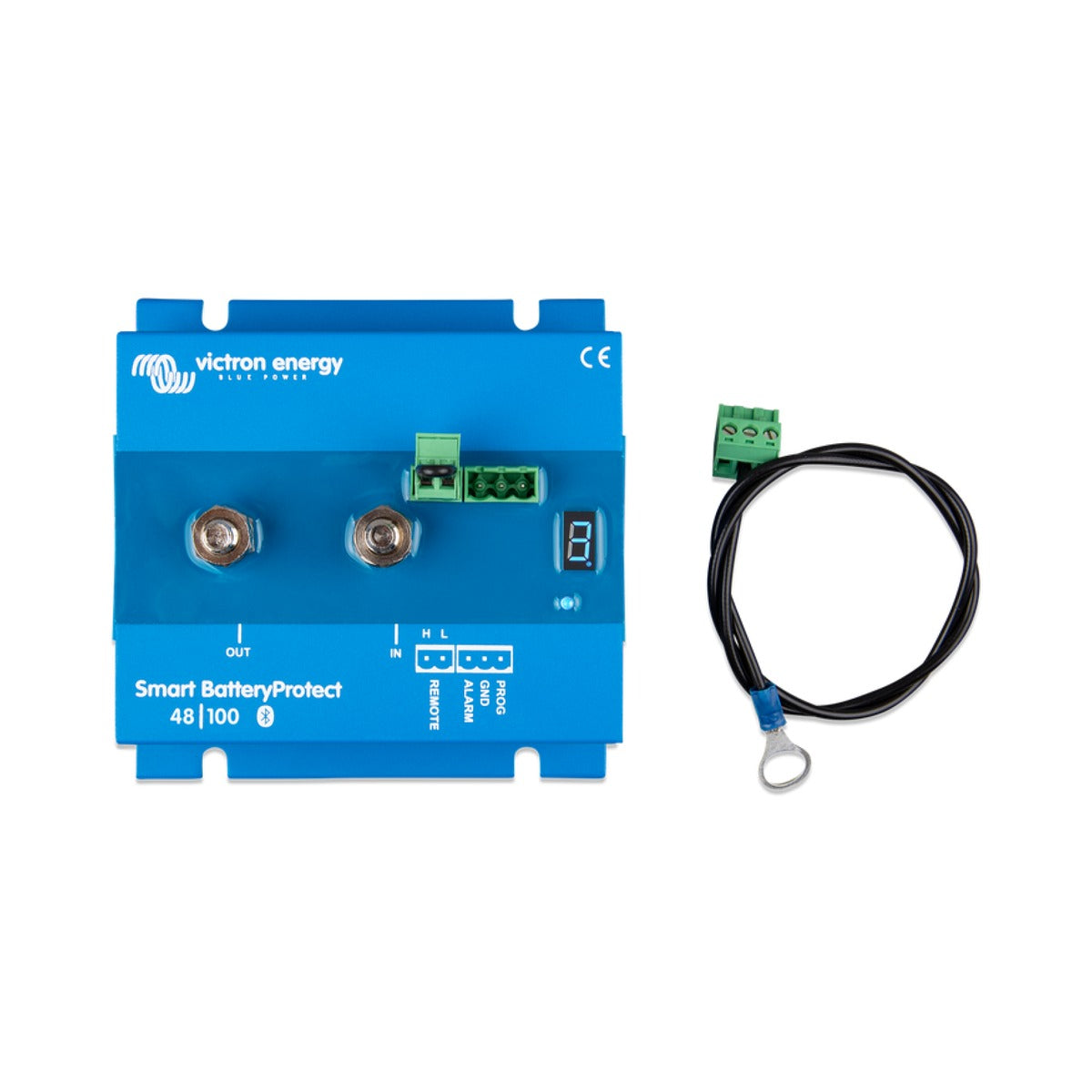

Victron BatteryProtect 48V 100A
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron BatteryProtect 48V 100A disconnects the battery from non-essential loads before it is completely discharged, protecting the bank from damaging deep discharge on 48V systems. It suits larger marine, off-grid and industrial installations where a low-voltage load disconnect is needed.
The unit is set up with a seven-segment LED display, which shows the chosen engage and disengage threshold at a glance. A dedicated Li-ion setting lets the device be controlled by a VE.Bus BMS, and it can also serve as a charge interrupter between a charger and a lithium battery.
Solid-state MOSFET switching makes the BatteryProtect ignition proof, with no relays and no sparks. Delayed alarm, load-disconnect and reconnect timing avoids nuisance tripping during brief voltage dips.
PRODUCT DETAILS
- Disconnects non-essential loads before the battery is deeply discharged
- 100A maximum continuous load current on 48V systems
- Seven-segment LED display for simple threshold setup
- Ignition proof: MOSFET switching, no relays or sparks
- Special Li-ion mode, controllable by a VE.Bus BMS
- Delayed alarm, load-disconnect and reconnect to avoid nuisance tripping
- Over-voltage protection disconnects loads above 64V
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous current | 100 A |
| System voltage | 48 V |
| Bluetooth | No |
Electrical
| Maximum load current | 100 A continuous (peak 250 A) |
| Cut-off / reconnect voltage | Default disengage 42 V, engage 48 V (adjustable via display) |
| Standby consumption | 2 mA when on, 1.5 mA when off or in low-voltage shutdown |
| Operating voltage range | 24 to 64 V |
| Over-voltage protection | Load disconnected above 64 V |
| Alarm output | Open collector, delay 12 seconds, max 50 mA (short-circuit proof) |
| Load disconnect / reconnect delay | Disconnect 90 seconds, reconnect 30 seconds |
Physical
| Dimensions | 62 x 123 x 120 mm (H x W x D) |
| Weight | 0.8 kg |
| Connection | M8 terminals |
| Protection category | Electronics IP67 (potted), connections IP00 |
Environmental
| Operating temperature range | -40 to +40°C at full load (up to 60% of nominal load at 50°C) |
