Victron
Victron Busbar 150A 2-Pole, 20 Screws (with Cover)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

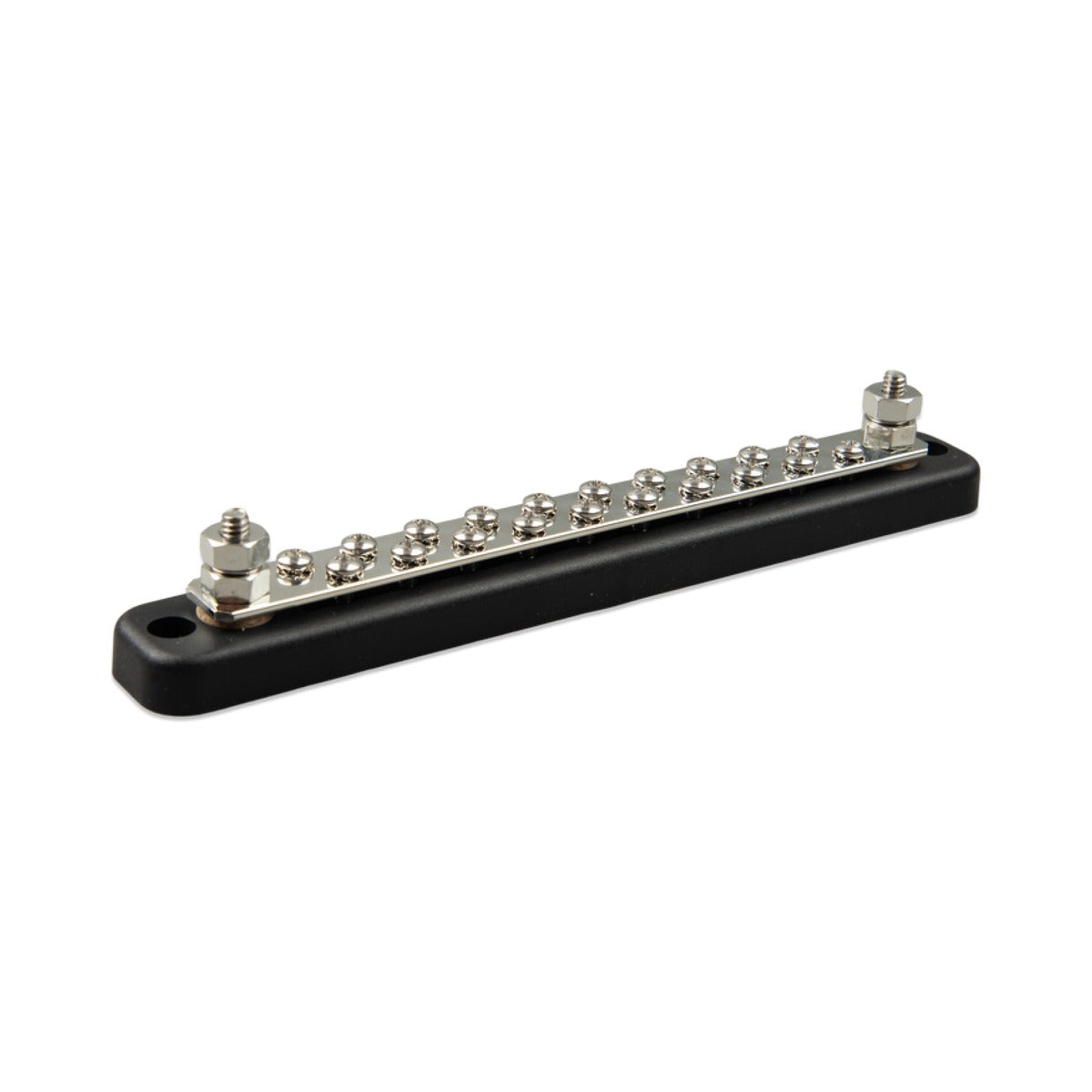

This Victron power distribution busbar gives a single common point for connecting several DC loads or sources to the battery. Rated for a continuous 150 A, it combines two heavy current stud terminals with a row of twenty screw terminals for smaller circuits, letting a positive and a negative bar each feed a larger group of accessories from one tidy connection.
The busbar strip is tin-plated copper for a low resistance path, mounted on a black ABS base rated UL 94 V-0. A removable protective cover is supplied to guard against accidental short circuits and to keep the installation neat.
PRODUCT DETAILS
- Common DC distribution point for connecting multiple loads and sources
- Continuous current rating of 150 A at up to 70 VDC
- Two high current 1/4 inch (M6) stud terminals plus twenty screw terminals
- Low resistance tin-plated copper busbar strip
- Black ABS base rated UL 94 V-0
- Removable protective cover included
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Continuous current | 150 A |
| Number of connections | 2 studs plus 20 screws |
| Number of poles | 2-pole |
Electrical
| Continuous current rating | 150 A at 70 VDC |
Physical
| Stud size | 1/4 inch (6.35 mm), stainless steel |
| Cover included | Yes, clear polycarbonate |
| Material | Tin-plated copper strip, ABS base |
