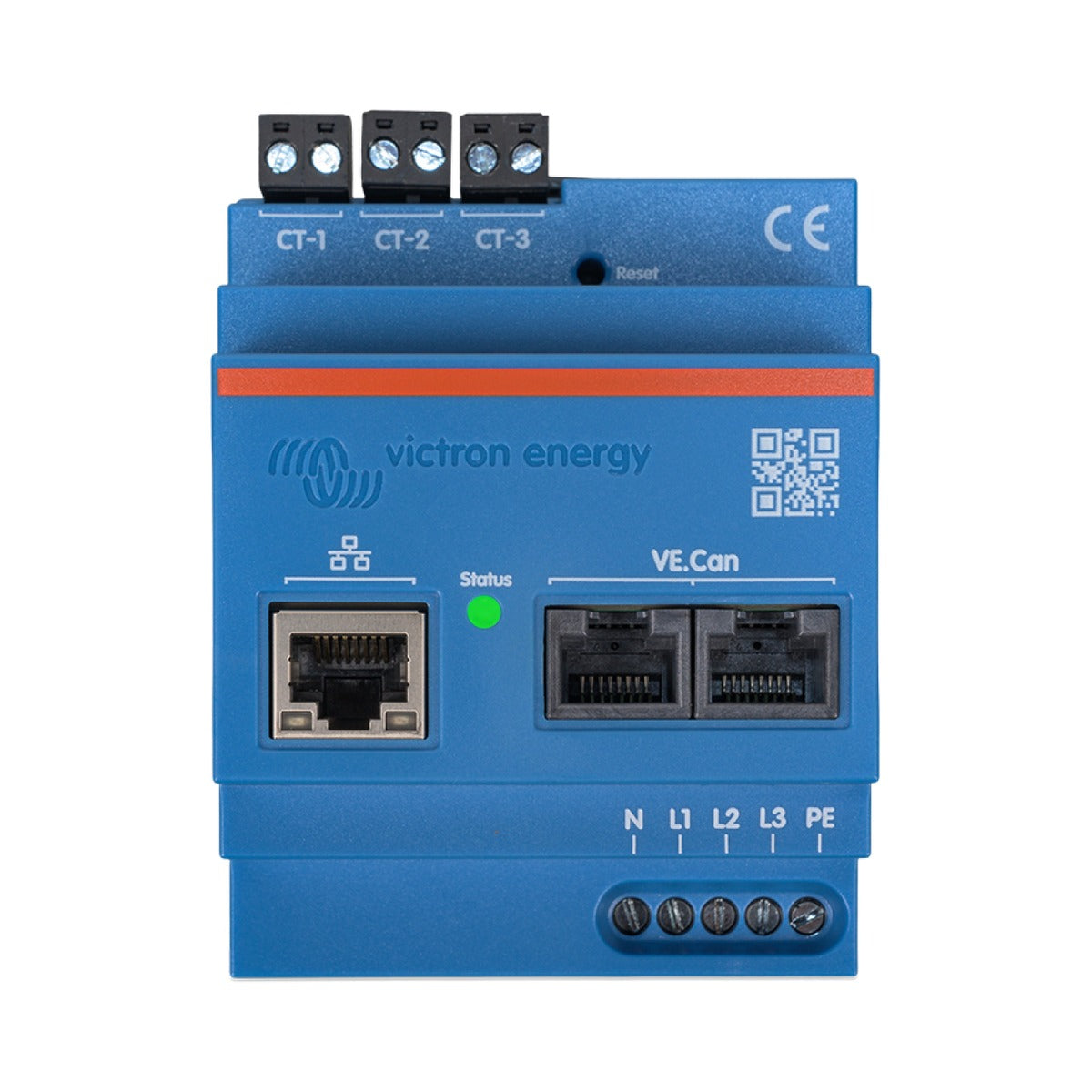

Victron Energy Meter VM-3P75CT (3-Phase, VE.Can)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron VM-3P75CT is Victron's own three-phase energy meter, designed to measure the power and energy of single-phase, split-phase and three-phase applications, for example at the distribution board or on the output of a PV inverter, AC generator or inverter/charger. Unlike the rebadged Carlo Gavazzi meters, it is engineered by Victron for native integration with the Victron ecosystem.
It uses supplied clamp-type current transformers to sense current up to 75 A per phase (rated) without modifying existing wiring, and connects to a GX device such as a Cerbo GX or Ekrano GX over VE.Can or Ethernet. The VE.Can connection is a direct link to the GX device that works independently of any network, while Ethernet suits installations where a network already reaches the board. It works out of the box as a grid meter for most systems, with configuration through VictronConnect needed only to change its role or set a fixed IP address.
A high 100 ms refresh rate gives accurate power, grid-import and feed-in figures for ESS systems, and the meter reports a full set of electrical parameters including line-to-neutral and line-to-line voltage, power factor, phase sequence and protective-earth voltages. A configurable energy registration method (vector, arithmetic or absolute) makes it suitable across different regional requirements. It is covered by Victron's standard five-year warranty.
PRODUCT DETAILS
- Victron three-phase energy meter, also suitable for single-phase and split-phase
- Measures up to 75 A per phase using the supplied clamp-on current transformers
- Native VE.Can and Ethernet (Modbus UDP) connection to the GX device
- Plug and play as a grid meter, no configuration required for most systems
- High 100 ms refresh rate for accurate grid-import and feed-in measurement
- Reports line-to-line and line-to-neutral voltage, power factor and phase sequence
- Configurable energy registration (vector, arithmetic or absolute)
- Compact DIN-rail housing, current transformers and VE.Can terminators included
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Key specifications
| Phases | Three-phase (also single-phase and split-phase) |
| Maximum current | 75 A per phase (via supplied current transformers) |
| Communication | VE.Can and Ethernet (Modbus UDP) |
Electrical
| Measurement | Reports line-to-line and line-to-neutral voltage, power factor, phase sequence and protective-earth voltage |
| Current measurement | Via clamp-type current transformers (included, 640 mm lead) |
| Input voltage range | 85 to 265 VAC (L-N), 150 to 460 VAC (L-L) |
| Frequency | 50 / 60 Hz |
| Refresh rate | 100 ms |
| Power supply | Self-powered via L1-N, consumption 1.45 W / 3.1 VA |
Physical
| Mounting | DIN-rail |
| Dimensions | 90 x 71 x 59 mm (H x W x D) |
| Material and colour | Polycarbonate, blue (RAL 5012) |
| Protection category | IP20 |
| Weight | 370 g (including packaging) |
Environmental
| Operating temperature | -10 to +55°C (indoor only) |
