Raymarine Evolution EV-100 Wheel Autopilot Pack

Raymarine

Raymarine Evolution EV-100 Wheel Autopilot Pack

Name: Raymarine Evolution EV-100 Wheel Autopilot Pack
Brand: Raymarine
SKU: T70152
Price: 1895.00 GBP
Availability: InStock

£1,895.00

Tax included. Shipping calculated at checkout.

T70152

Complete Evolution autopilot for wheel-steered sailboats. The EV-100 Wheel pack combines the EV-1 Sensor Core, ACU-100, p70s control head, Evolution cabling kit and the cockpit wheel drive, which clamps directly to the wheel's spokes. Rated for sailboats up to 7,500 kg displacement and designed for DIY installation.

Quantity

✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.

No extended cover
+1 year (up to 4 years total) £170.55
+2 years (up to 5 years total) £341.10

Extended cover is added to your order and confirmed with your warranty documentation.

Description

The Raymarine Evolution EV-100 Wheel Pilot (T70152) is a complete autopilot for wheel-steered sailboats up to 7,500 kg (16,500 lbs) fully laden displacement. The externally mounted wheel drive fits in the cockpit, attached directly to the spokes of the steering wheel, so there is no below-decks drive installation. The intelligent EV-1 Sensor Core monitors pitch, roll, yaw and heading with aerospace-grade 9-axis sensing while the ACU-100 powers the drive, and the system requires no commissioning calibration.

The pack contains the EV-1 Sensor Core, ACU-100 actuator control unit, p70s push-button control head, Evolution SeaTalkng cabling kit and the wheel drive unit (installation instructions document 87287). SeaTalkng networking links the pilot to wind instruments and chartplotters, and the system can also be commanded from a compatible Axiom, Axiom 2 Pro or Axiom 2 XL display. A version without the p70s head is available as T70248.

PRODUCT DETAILS

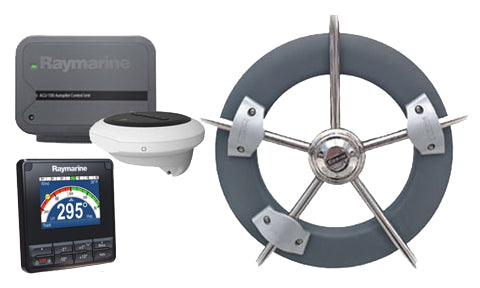

Complete wheel pilot pack: EV-1, ACU-100, p70s, cabling kit and wheel drive
Rated for wheel-steered sailboats up to 7,500 kg (16,500 lbs) displacement
Cockpit-mounted drive clamps to the wheel spokes, no below-decks install
9-axis EV-1 Sensor Core holds course to within +/- 2 degrees
No complicated setup or autopilot calibration required
SeaTalkng / NMEA 2000 networking with sailing instruments and chartplotters
Pilot control also available from compatible Axiom chartplotters

EV-1 Sensor Core (E70096)
ACU-100 actuator control unit (E70098)
p70s control head (E70328)
Evolution wheel drive (E12093)
Evolution cabling kit (R70160)

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.
