B&G

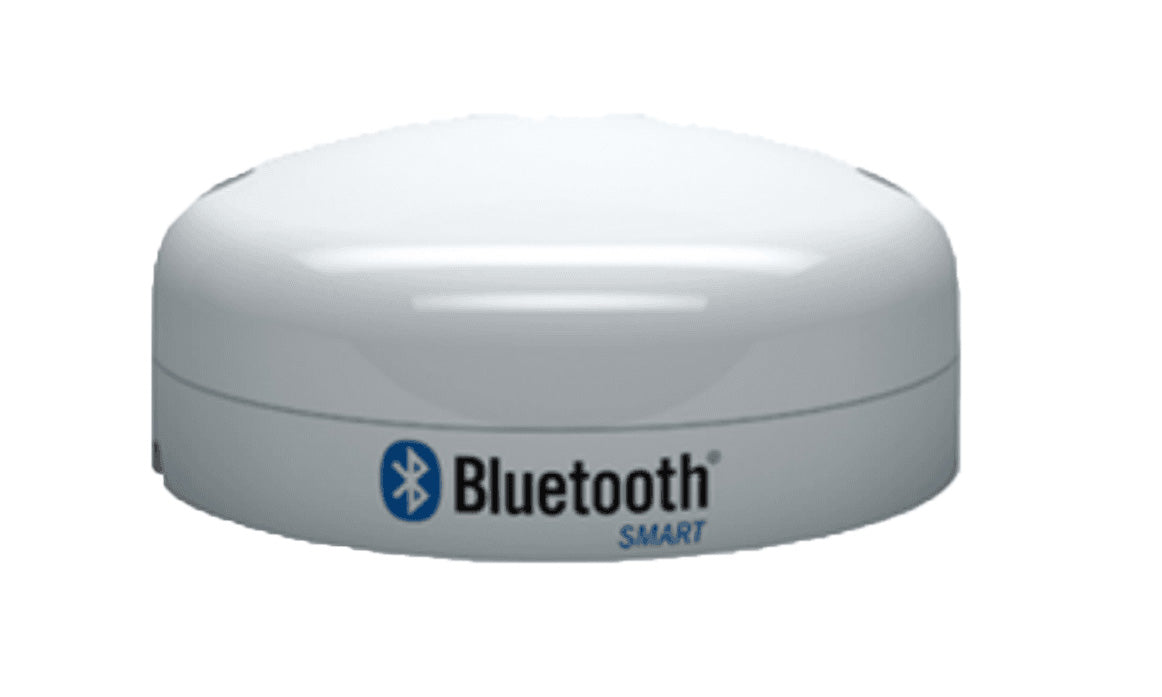

B&G WS320 Wireless Interface
£199.99
/
Tax included.
Shipping calculated at checkout.
000-14388-001
The B&G WS320 Wireless Interface is the Bluetooth base station that pairs with the WS320 wireless masthead sensor. It receives apparent wind speed and angle wirelessly and converts the data to NMEA 2000 for compatible displays and MFDs. Powered from the network and rated IPx7, it is the below-deck half of the cable-free WS320 wind system.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Navico Extended Warranty
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The WS320 Wireless Interface: Receives wireless signals from the WS320 and converts to NMEA 2000
PRODUCT DETAILS
- Bluetooth base station receives data from the WS320 wireless sensor
- Converts wireless wind data to NMEA 2000
- Range suitable for mast heights up to 30m / 98ft
- Powered directly from the NMEA 2000 network, 2 LEN load
- Compact Ø90mm puck with IPx7 protection
- Backed by a 2 year warranty
- WS320 Bluetooth base station with mounting accessories
- NMEA 2000 drop cable
- Micro-C T-Joiner
- Screws M4 30 mm SS316 (2x)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Physical
| Dimensions | Ø 90 mm (3.54 in), H 38 mm (1.50 in) |
| Weight | 0.1 kg (0.22 lbs) |
Electrical
| Power Supply and Interface | 9 - 16V DC via Micro-C network |
| Power Consumption | 1.2 W (<100 mA at 12V DC) |
| In-rush Current | 2 A for 20 ms (at internal 5V) |
Connectivity
| NMEA 2000 Network Load | 2 LEN (100 mA) |
| Connection Cable | Micro-C drop cable 1.8 m (6 ft) |
| Wireless Connectivity | <= 30 m (98 ft) to wind sensor |
Environment
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% RH at 66°C, 18 hrs |
| Environmental Protection | IPx7 |
No videos available for this product.
What does the WS320 wireless interface do?
It is the Bluetooth base station that receives apparent wind data from the WS320 masthead sensor and converts it to NMEA 2000 for compatible instruments and MFDs.
How is the base station powered?
It is powered directly from the NMEA 2000 network at 9 to 16V DC and presents a load of 2 LEN.
What mast height does the wireless range support?
The base station communicates with the WS320 sensor over distances up to 30 metres (98 ft), suitable for most mast heights.
Where should the base station be mounted?
Mount it within wireless range of the masthead sensor and connect it to the NMEA 2000 backbone using the supplied drop cable and T-joiner. Pairing should be completed before the sensor is installed at the masthead.
