B&G WS710 Wind Pack
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The WS710 Wind Pack offers superb aerodynamics and accuracy. A 0.8m high modulus carbon spar elevates the wind sensor into clear air, above any sail-plan disturbance at the masthead. Pack includes 35m mast cable and junction box to aid mast-base connection.
The WS700 series is the ultimate wind sensor for performance sailing, providing the most accurate wind angle and speed data. The new one-piece vane design gives superb aerodynamics and stability, as a result of over 200,000 hours of combined design and wind tunnel testing.
The vertical spar minimises the effect of sail-plan disturbance on wind measurement ensuring the best performance with minimum calibration. This means reliable True Wind Direction to make precise race calls when needed and better steer-to-wind performance in all conditions when on autopilot.
WS700 sensors are compatible with a variety of instrument systems.
PRODUCT DETAILS

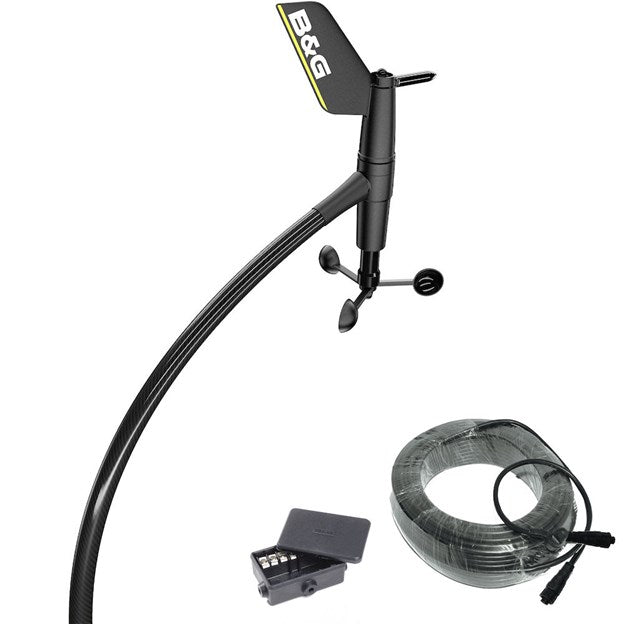

- Complete WS710 wind pack with sensor, junction box and 35m cable
- 0.8m high-modulus carbon spar lifts the vane into clear, undisturbed air
- One-piece vane design refined over 200,000 hours of design and wind-tunnel testing
- Wind range 0.5 to 90 knots, accuracy +/- 0.2 kt and +/- 0.5°
- Reliable True Wind Direction for precise race calls and better steer-to-wind on autopilot
- Connects to NMEA 2000 via optional WS310 interface, or NMEA 0183 directly
- Backed by a 2 year warranty
- WS710 0.8m vertical wind sensor
- WS300 35m (115 ft) mast cable
- Junction box, 7 terminal
- Documentation pack
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Performance
| Wind Range | 0.5 - 90 knots |
| Wind Speed Accuracy | +/- 0.2 knots (from 2 - 80 knots), 0.1 knot resolution |
| Wind Angle Accuracy | +/- 0.5° |
Electrical
| Supply Voltage | 12V DC nominal (via interface or separate supply) |
| Power Consumption | 15 mA at 12V DC / <0.2 W |
Connectivity
| Data Output | NMEA 0183 MWV,R at 10Hz (NMEA 2000 via optional WS310 interface) |
Environment
| Water Resistance | IPx6 |
| Operating Temperature | -15°C to +55°C (5°F to 131°F) |
General
| Cable Length | 35 m (115 ft) mast cable included |
Physical
| Spar Length | 0.8 m (32 in) |
| Wind Sensor Weight | 0.3 kg (0.7 lbs) |
