Scanstrut
Rokk Wireless - Hidden 10W Waterproof Wireless Charger 12 / 24V
£97.00
/
Tax included.
Shipping calculated at checkout.
SC-CW-01F
Hidden 10W is a waterproof Qi wireless charger engineered to mount beneath the surface, leaving the top deck uncluttered and clean. Simply etch in a logo or marker to identify the charging location. Runs on 12/24V for marine and RV installations.
✓
Available for collection or delivery in ~2 days
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
Hidden from view and ready to charge, the Hidden 10W is built to sit under your chosen surface so the helm or console stays uncluttered and looks perfect. The charging coil works through non-metallic materials, keeping the install discreet.
Because nothing breaks the surface above, you can simply etch a small logo or marker to show where to place the phone. It is fully waterproof and wired for 12/24V systems, making it ideal for boats, campervans and other rugged builds.
PRODUCT DETAILS
- 10W fast wireless charging, up to 60% faster than previous generation
- Qi certified for compatibility with all Qi phones, including with cases
- IPX6 fully waterproof, sealed and encapsulated unit
- Sub-surface install hidden from view for a clean, uncluttered finish
- Pocket or bond installation, ideal for GRP or wood
- 12V and 24V compatible (10-30V DC)
- Allows for custom branding to mark the charge location

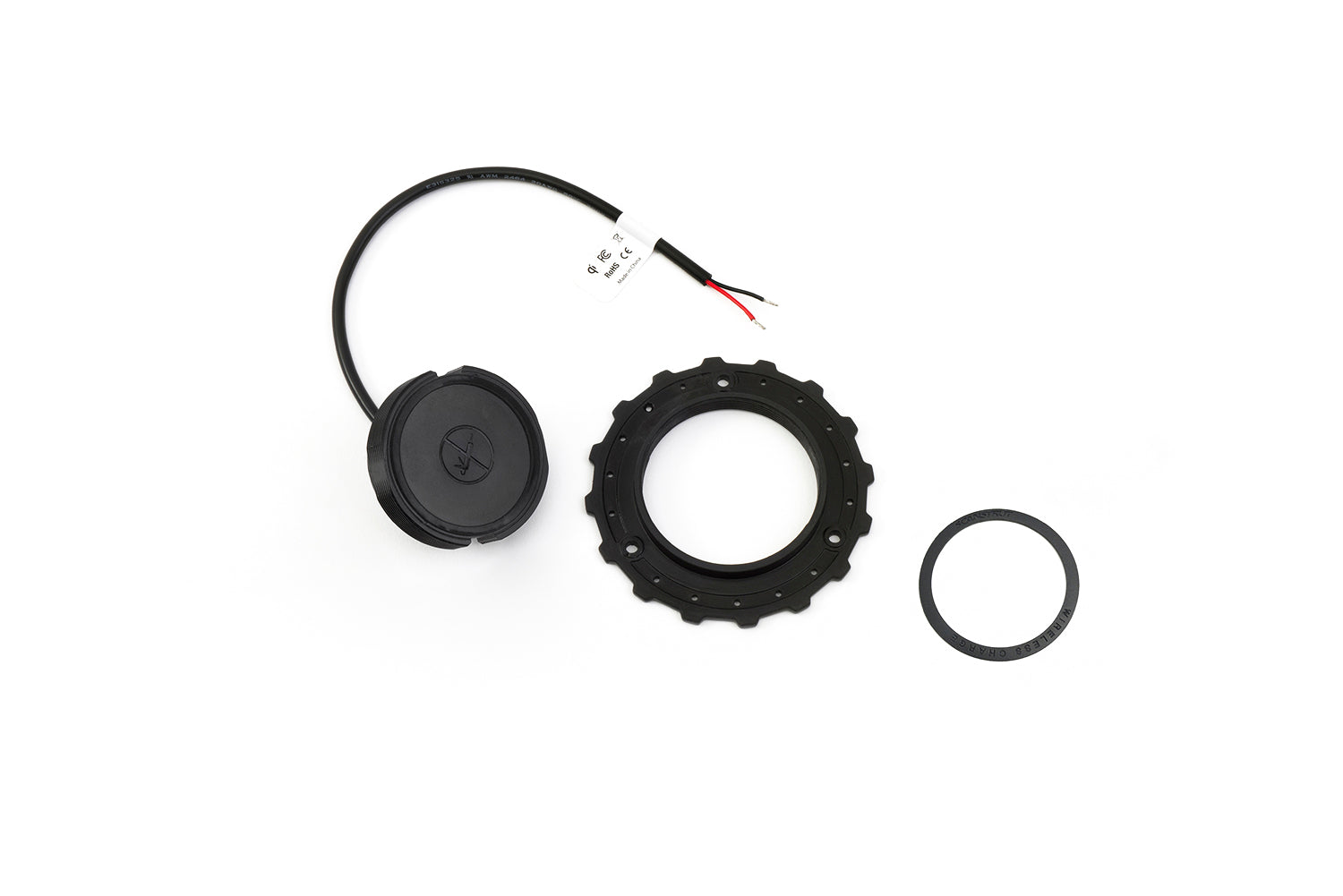

- ROKK Wireless Hidden 10W charger unit
- 300mm power lead
- Installation instructions and cutting template
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Range | ROKK Wireless 10W |
| Wireless Standard | Qi certified |
| Installation | Sub-surface (pocket or bond install) |
Electrical
| Input Voltage Range | 10-30V DC (12/24V system) |
| Input Current (max) | 2A |
| Output Power | 10W (9V, 1.1A) |
| Standby Power Draw | Less than 0.2W |
Dimensions
| Diameter | 61mm (2.40") |
| Depth | 14mm (0.57") |
| Cable Length | 300mm (11.81") |
| Max Panel Thickness | 3mm (0.1") |
Environment
| Waterproof Rating | IPX6 |
Approvals
| Certifications | Qi, CE, UKCA, FCC, RoHS, C-Tick, UN ECE R10, IC, PSE |
Can the charger be installed using mains power?
The ROKK Wireless range is designed for 12/24V electrical systems, but we can supply transformers that enable them to be fitted to a mains supply. As each country has its own power specification, please contact technical@scanstrut.com for more information.
Can I mount the charger overhead or in any orientation?
Yes, you can mount it in any orientation.
Will it charge through my waterproof phone case?
Yes, it will charge through any case under 3mm thick that does not contain any metal.
