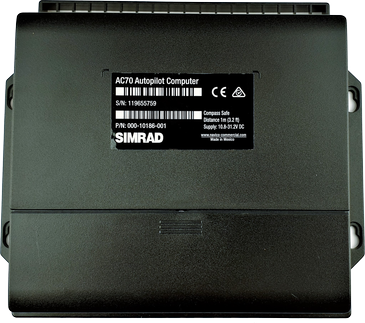

Simrad AC70 Autopilot Computer for rudder or propeller (i.e. Voith Schneider), for reversible motor or galvanic non-isolated solenoids.

Simrad

Simrad AC70 Autopilot Computer for rudder or propeller (i.e. Voith Schneider), for reversible motor or galvanic non-isolated solenoids.

Name: Simrad AC70 Autopilot Computer for rudder or propeller (i.e. Voith Schneider), for reversible motor or galvanic non-isolated solenoids.
Brand: Simrad
SKU: 000-10186-001
Price: 1720.00 GBP
Availability: InStock

£1,720.00

Tax included. Shipping calculated at checkout.

000-10186-001

The Simrad AC70 is an autopilot drive computer for rudder or propeller steering (including Voith Schneider), driving reversible motors or galvanic non-isolated solenoids. It connects to the SimNet/Micro-C network and forms part of Simrad AP60 and AP70/AP80 autopilot systems.

Quantity

✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

No extended cover
+1 year cover £86.00
+2 years cover £172.00
+3 years cover £258.00

Extended cover is added to your order and confirmed with your warranty documentation.

Description

The Simrad AC70 is a professional autopilot drive computer for rudder or propeller (for example Voith Schneider) steering systems, controlling reversible motors or galvanic non-isolated solenoid valves. It is part of the Simrad AP60 and AP70/AP80 autopilot family and connects to the SimNet/Micro-C CAN network.

The AC70 provides connections for 12/24 V supply, drive and drive-engage outputs, frequency rudder feedback (such as RF300 or RF45X), a non-follow-up steering lever, an external alarm, external mode selection and NMEA 0183 (IEC 61162-1/2) devices. NMEA 0183 port count can be expanded using an SI80 or AT10 interface.
