This product has been discontinued by Simrad and is no longer available to buy.
Simrad

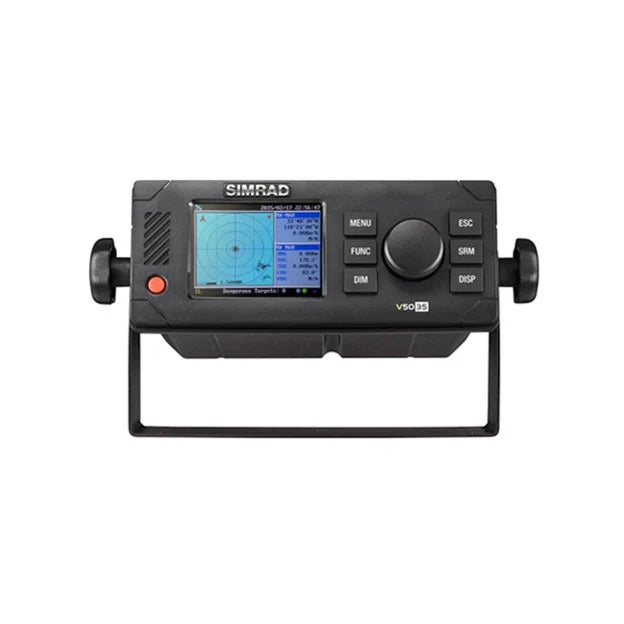

Simrad AIS V5035 Class A Transceiver
Description
Now replaced by the Simrad V5043 Class A AIS System (000-16280-001). The Simrad V5035 is an IMO type-approved Class A AIS transponder, supplied as a complete standalone system with an integrated 3.5-inch colour display, junction box, GPS antenna and pilot port connector, so it requires only a VHF antenna to complete the installation. A control knob and keypad allow it to be operated on its own, showing AIS traffic in coastline, radar, alphanumeric and satellite views.
The V5035 transmits and receives on the two AIS channels, includes a dedicated DSC receiver and an internal 50-channel GPS receiver with SBAS, and integrates easily with Simrad GPS and charting systems over NMEA 2000, including the GN70, MX610 and MX612 navigation systems and NSO, NSS and E5000 ECDIS. Its junction box provides multiple sensor inputs and bi-directional data ports for connection to external GPS, ECDIS, radar and VDR.
PRODUCT DETAILS
- IMO type-approved Class A AIS transponder, also approved for Inland AIS
- Complete standalone system with integrated 3.5-inch colour display, junction box, GPS antenna and pilot plug
- Two AIS channels (transmit and receive) plus a dedicated DSC receiver
- Internal 50-channel GPS receiver with SBAS
- Integrates with Simrad GN70, MX610 and MX612 and NSO/NSS/E5000 ECDIS via NMEA 2000
- Coastline, radar, alphanumeric and satellite display modes
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| AIS class | Class A AIS transponder (IMO and Inland AIS type approved) |
Transmitter
| Frequency range | 156.025 - 162.025 MHz |
| Channel bandwidth | 25 kHz |
| Modulation | GMSK / FM |
| Data rate | 9,600 bps |
| TX power output | 1 / 12.5 W (30 / 41 dBm +/- 1.5 dB) |
| Number of AIS transmitters | 1 |
Receiver
| Number of AIS receivers | 2 |
| AIS channels | CH 87B (161.975 MHz) and CH 88B (162.025 MHz) |
| RX sensitivity | < -107 dBm @ 20% PER |
DSC
| Number of DSC receivers | 1 |
| DSC frequency | 156.525 MHz |
| DSC sensitivity | < -107 dBm @ BER < 10-2 |
GPS
| GPS receiver | 50-channel GPS L1 C/A code with SBAS (WAAS, EGNOS, MSAS, GAGAN) |
| GPS accuracy | < 2.5 m autonomous; < 2.0 m SBAS |
Display
| Screen | 3.5 in colour TFT, 320 x 240 pixels |
| Display modes | Coastline map, radar, alphanumeric and satellite |
Connectivity
| NMEA 2000 | Yes (IEC 61162-3) |
| NMEA 0183 / sensor ports | Sensor interfaces 1-3, pilot/auxiliary, external display, long-range (IEC 61162-1/-2) |
| VHF antenna connector | SO-239 (female) |
| GPS antenna connector | TNC (female) |
Electrical
| Supply voltage | 12 / 24 V DC |
| Power consumption | Less than 9 W average, less than 65 W peak @ 12 V DC |
Environment
| Operating temperature | -15 C to +55 C |
| Waterproof rating | IPX2 |
Physical
| Dimensions (W x H x D) | 205 x 85 x 160 mm (depth excluding connectors) |
| Weight | < 1.16 kg |
