Simrad NSO EVO3S 16 Inch MFD

Simrad

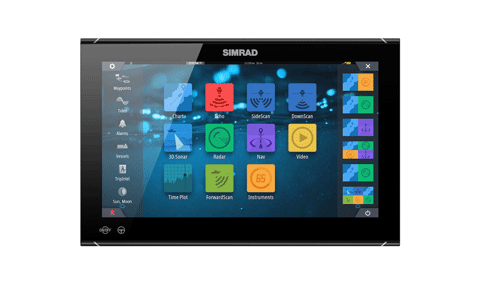

Simrad NSO EVO3S 16 Inch MFD

Name: Simrad NSO EVO3S 16 Inch MFD
Brand: Simrad
SKU: 000-15047-001
Price: 6095.99 GBP
Availability: InStock

£6,095.99

Tax included. Shipping calculated at checkout.

000-15047-001

The Simrad NSO evo3S 16-inch MFD is the heart of a glass-helm navigation system, built around a fast iMX 8 six-core processor for rapid, smooth operation. Its Full HD SolarMAX IPS touchscreen stays clear from wide angles and through polarised sunglasses, with up to six split-screen panels. Wired Ethernet, NMEA 2000 and built-in Wi-Fi connect radar, sonar, autopilot and mobile devices across the vessel.

Quantity

✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

No extended cover
+1 year cover £304.79
+2 years cover £609.59
+3 years cover £914.39

Extended cover is added to your order and confirmed with your warranty documentation.

Description

The Simrad NSO evo3S 16-inch display puts an iMX8 six-core processor behind a SolarMAX IPS glass helm, delivering up to twice the CPU performance of its predecessor for smooth screen transitions and instant access to charts, radar and sonar. The ultra-bright 1200-nit Full HD touchscreen stays clear in direct sun and through polarised sunglasses, with wide viewing angles and the option to combine up to six panels in a split-screen layout. Low-profile glass styling conceals the core and complements any helm.

Built-in wireless links the display to mobile devices for remote viewing and easy software updates over any internet hotspot. Wired Ethernet, NMEA 2000 and J1939 networking open near-limitless integration, from vessel-wide display systems to radar, sonar and engine data. As a black-box-style MFD it needs an external GPS for position and an external or networked sonar module for echosounder.

PRODUCT DETAILS

iMX 8 integrated six-core processor for category-leading response times
Ultra-bright 16-inch Full HD (1920 x 1080) SolarMAX IPS touchscreen, 1200 nits
Wide 80 degree viewing angles, readable through polarised sunglasses
Combine up to six panels in a split-screen layout
Built-in Wi-Fi (802.11b/g/n), Bluetooth, three Ethernet ports and NMEA 2000
Pre-loaded C-MAP coastal charting out of the box (AMER region)
Low-profile glass-helm styling for panel or bracket mounting
Integrates with radar, CHIRP sonar, autopilot and a wide range of third-party systems

NSO evo3S 16" display unit
Suncover
Bezels (1 set black, 1 set silver)
Power cable and connector block
RJ45 to 5-pin Ethernet adapter cable
NMEA 0183 connector block
Cable retainer kit
Panel mounting kit
Documentation pack

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

Image coming soon

12kW X-Band SRT LAN Pedestal (R5000)

B&G Halo20 Pulse Compression Radar

Image coming soon

B&G Halo20+ Pulse Compression Radar

B&G, Simrad NAC-2 Autopilot Computer

B&G, Simrad NAC-3 Autopilot Computer

Lowrance Halo 24 Radar

Lowrance, Simrad NAC-1 Autopilot Computer

Simrad R3016 Halo 6 Radar Kit

Image coming soon

AC70 PCB

Image coming soon

AD80 Analog Drive PCB

Image coming soon

Ghost lift assist kit 47"

Recon™ Saltwater 54" Trolling Motor

Image coming soon

SG05 Pro Autopilot Computer

Display

Screen Size	16 inches
Resolution	1920 x 1080 (Full HD)
Display Type	SolarMAX IPS, full multi-touch
Brightness	1200 nits
Viewing Angles	80 degrees top/bottom, 80 degrees left/right
Backlight Colour	White

Electrical

Supply Voltage	10 - 32 V DC
Power Consumption (max)	40 W (+/- 4 W)
Recommended Fuse Rating	6 A at 12 V DC

Connectivity

Ethernet	3 x 100 Mbit/s ports (RJ45)
NMEA 2000	1 x Micro-C port, 1 LEN
NMEA 0183	4 ports
Wi-Fi	Internal 802.11b/g/n
Bluetooth	Internal
Video	2 x composite video (BNC) in, 1 x HDMI in (1080p, HDCP 1.4), 1 x HDMI out (1080p)
USB	3 x USB-A
Card Reader	1 microSD slot (max 32 GB); optional MI10 USB reader with 2 microSD slots

General

Internal Storage	16 GB
GPS	External GPS required
Sonar	External echosounder module or networked MFD required
Cartography Included	Pre-loaded C-MAP coastal charts (AMER region); world basemap
Waypoints / Routes / Tracks	6000 waypoints, 500 routes (100 points each), 50 tracks (12,000 points)

Environment

Operating Temperature	-15 C to +55 C
Storage Temperature	-20 C to +60 C
Waterproof Rating	IPX6 on the front when panel mounted (rear not waterproof)

Physical

Dimensions (W x H x D)	400.1 x 260 x 83 mm (with bracket 474.9 x 307.5 x 222.5 mm)
Weight	3.9 kg
Mounting	Panel or bracket mount
Compass Safe Distance	50 cm

Approvals

Compliance

CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2 V1.4.1

What processor and screen does the NSO evo3S 16-inch have?

It uses an iMX8 six-core processor behind a 16-inch SolarMAX IPS Full HD (1920 x 1080) multi-touch display with 1200 nits brightness and wide 80-degree viewing angles, readable in sunlight and through polarised sunglasses.

Does it have a built-in GPS or sonar?

No. The evo3S requires an external GPS for position, and an external echosounder module or a networked MFD with built-in sonar to display echosounder images.

What wireless and networking does it offer?

It has internal Wi-Fi (802.11b/g/n) and Bluetooth, three 100 Mbit Ethernet ports, one NMEA 2000 Micro-C port and four NMEA 0183 ports, plus HDMI in/out, two composite video inputs and three USB-A ports.

Are charts included?

Yes. It comes pre-loaded with C-MAP coastal charts for the AMER region plus a world basemap. Additional charts can be loaded on a microSD card (max 32 GB).

What is the waterproof rating and warranty?

The front is rated IPX6 when panel mounted; the rear is not waterproof. The display is supplied with a 2-year warranty.

Is this the display only?

Yes. It ships with a suncover, black and silver bezels, power and NMEA connector blocks, an Ethernet adapter, cable retainer and panel mounting kit. A GPS antenna and remote controller are not included.
