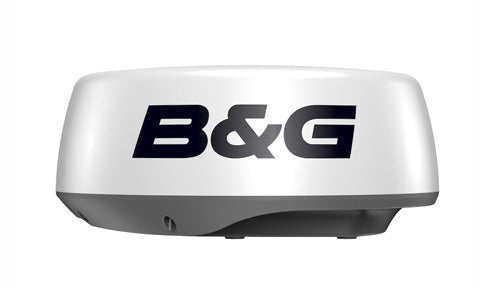

B&G Halo20 Pulse Compression Radar B&G Halo20 Pulse Compression Radar
B&G Halo20 Pulse Compression Radar

B&G

B&G Halo20 Pulse Compression Radar

£2,209.99
Tax included. Shipping calculated at checkout.
000-14540-001
The B&G Halo20 is a compact 20 inch pulse compression dome radar that gives unrivalled short-range detection with up to 24 nautical mile range, ideal for sailors who want dependable close-quarters awareness. As an all solid-state radar it is radiation safe and InstantOn, so there is no warm up and no high-power transmission. Simple harbour, offshore and weather modes, MARPA target tracking and guard zones make it easy to use, and it is supplied with a 20 metre radar cable.
✓ Available for collection or delivery in ~1 day

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Navico Extended Warranty

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

Extended cover is added to your order and confirmed with your warranty documentation.

Description

10W Pulse Compression Radar. 24 nm range from a compact 20-inch dome. Unrivalled short range. Radiation safe. Easy operation with harbour, offshore and weather mode. MARPA target tracking 10. InstantOn™. Low Power Consumption. Guard Zones. Comes withe 20 meter radar cable.

PRODUCT DETAILS

  • 10W Pulse Compression
  • 24 nm range from a compact 20-inch dome
  • Unrivalled short range
  • Radiation safe
  • Easy operation with harbour, offshore and weather mode
  • MARPA target tracking
  • InstantOn
  • Low power consumption
  • Guard Zones
  • Halo Radar
  • Mounting bolts and washers (Hex bolt M8x30 x4, flat washer x4, spring washer x4)
  • Documentation pack
  • Interconnection cable
  • Ethernet adapter RJ45 to 5-pin, 1.5m (4.9 ft)
  • Waterproof cable boot for interconnection cable RJ45 plug
  • Cable retainer kit (clip x2, screw x4)

No exploded diagram available for this product.

No compatible transducers listed for this product.

B&G PT2001 PowerTower for Broadband Radar - 350mm (14 inch) white comp

B&G PT2001 PowerTower for Broadband Radar - 350mm (14 inch) white comp

B&G Zeus S-12 Ultrawide 12 Inch Display

B&G Zeus S-12 Ultrawide 12 Inch Display

B&G Zeus SR - 10" Chartplotter

B&G Zeus SR - 10" Chartplotter

B&G Zeus2 - ZM16-T 16 inch Glass Helm Touch Monitor

B&G Zeus2 - ZM16-T 16 inch Glass Helm Touch Monitor

B&G Zeus3 16 GH 16 inch Glass Helm Display

B&G Zeus3 16 GH 16 inch Glass Helm Display

B&G Zeus3S 9 MFD

B&G Zeus3S 9 MFD

Lowrance Elite FS 7 No Transducer

Lowrance Elite FS 7 No Transducer

Lowrance HDS PRO 9. No Transducer

Lowrance HDS PRO 9. No Transducer

Lowrance HDS-7 Carbon ROW with No Transducer

Lowrance HDS-7 Carbon ROW with No Transducer

Lowrance HDS-7 Live No Transducer

Lowrance HDS-7 Live No Transducer

Image coming soon

R2009 & R3016 Keypad Kit

Simrad NSO EVO3S 16 Inch MFD

Simrad NSO EVO3S 16 Inch MFD

Simrad NSO evo2 Processor No Charts

Simrad NSO evo2 Processor No Charts

Simrad NSS 4 - 10" Chartplotter and Fishfinder

Simrad NSS 4 - 10" Chartplotter and Fishfinder

Simrad NSS9 EVO3S 9 Inch MFD

Simrad NSS9 EVO3S 9 Inch MFD

Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer

Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer

Simrad NSS7 evo2 Combo 7-inch Multi-function Display

Simrad NSS7 evo2 Combo 7-inch Multi-function Display

Electrical

Power Consumption max20W
Power Consumption typical18W
Recommended Fuse Rating5A
Supply Voltage10.5 - 31.2 VDC (12/24V systems)

Environment

Operating Temperature Range-25 to +55 C (-13 to +130 F)
Waterproof ratingIPX6

Physical

Dimensions510mm dia x 223 mm H (20 in dia x 8.8 in H)
Weight5.9 kg (13 lbs) without cable

Radar

Beam width4.9 deg H x 25 deg V
Max Range24 NM
Min Range50 m / 200 ft / 50 yd
Radar TechnologyPulse Compression
Rotation speed24 RPM
Radar ModesHarbour, Offshore, Weather, North Up, Course Up, Relative motion, True Motion

Other

InterfaceB&G MFD
Warranty Period2 Years

Radar Scanner

InterfaceN/A
TechnologyPULSE COMP
ARRAY SIZE (INCH/FEET)20"
Max Range (NM)24
Rotation (RPM)24
POWER (W)6

No videos available for this product.

Which displays is the Halo20 compatible with?
The Halo20 connects over Ethernet to compatible B&G, Simrad and Lowrance multifunction displays such as Zeus and Vulcan. Some older displays may not support Halo dome radars, so check your display software is up to date. The radar does not need NMEA 2000 or heading data for MARPA to work.
What is the difference between the Halo20 and the Halo20+?
Both use the same 20 inch dome. The Halo20 is the 10 W model with 24 nm range and 20 to 24 RPM rotation. The Halo20+ steps up to 25 W for 36 nm range, adds VelocityTrack Doppler, target separation control, faster 60 RPM rotation and a blue accent light.
What is in the box and is a cable included?
The Halo20 comes with the radar dome, mounting bolts and washers, the interconnection cable, an Ethernet adapter, a waterproof cable boot, a cable retainer kit and the documentation pack. Longer interconnection cables up to 30 m are available as an option.
Is the Halo20 safe to mount close to people?
Yes. As a low-power solid-state radar the Halo20 is radiation safe, with an independently measured RF safe distance of 0.0 m. This makes it well suited to smaller yachts where the dome may be close to the cockpit or deck.
How high should the radar be mounted?
Mount the dome high above the keel line with a clear all-round view, but not so high that close-range performance suffers. The vertical beam extends 25 degrees above and below horizontal, so raise it on a pedestal where a hard top would block the beam, and keep it at least 0.7 m from a compass.
