Simrad NSS7 evo2 Combo 7-inch Multi-function Display

Name: Simrad NSS7 evo2 Combo 7-inch Multi-function Display
Brand: Simrad
SKU: 000-11184-001
Availability: Discontinued

000-11184-001

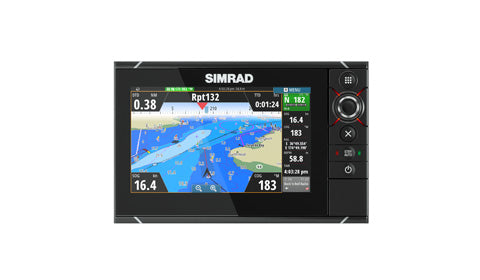

The Simrad NSS7 evo2 is a 7-inch multifunction display combining a widescreen multi-touch screen with keypad and rotary control. It includes a built-in GPS receiver, CHIRP sounder and StructureScan HD support. NMEA 2000 and Ethernet networking allow integration with radar, autopilot and sonar. Supplied with a world base map.

Description

The NSS7 evo2 combines an easy-to-use, 7-inch chartplotter/multifunction display with built-in GPS positioning, StructureScan® HD, CHIRP-enabled broadband sonar, and powerful expansion capabilities.

Standalone in a centre console or fully integrated in a modern glass bridge, the widescreen NSS7 evo2 is well suited to sportfishing and power boats.

PRODUCT DETAILS

7-inch widescreen multi-touch display with 1200 nits brightness
Combined multi-touch screen and keypad/rotary control
Built-in 10 Hz GPS receiver (WAAS, EGNOS, MSAS)
Built-in CHIRP sounder with StructureScan HD and ForwardScan support
NMEA 2000 and Ethernet networking for radar, autopilot and sonar
Full autopilot control and commissioning, plus AIS support
IPX6 and IPX7 waterproof rating

No exploded diagram available for this product.

B&G, Lowrance, Simrad TotalScan Skimmer Transducer

B&G, Lowrance, Simrad TotalScan Thru Hull Transducer Medium High CHIRP

B&G, Lowrance, Simrad TotalScan Thru Hull Transducer with Low and High CHIRP

B&G, Simrad ForwardScan Long Stem Transducer

B&G, Simrad ForwardScan transducer kit with Sleeve and plug

Lowrance Airmar TM150M Transom-Mount Transducer

Lowrance HST - DFSBL 50/200kHz transom-mount skimmer depth/temp

Lowrance HST - WSBL 83/200kHz transom-mount skimmer depth/temp

Lowrance PTI-WBL - Ice transducer with Blue connector

Lowrance, Simrad - HDI Bronze Thru Hull Transducer Blue Plug 0 deg Tilt

Lowrance, Simrad - HDI Bronze Thru Hull Transducer Blue Plug 20 deg Tilt

Lowrance, Simrad Airmar B150M Thru-Hull Transducer 12-degree

Lowrance, Simrad Airmar B150M Thru-Hull Transducer 20-degree

Lowrance, Simrad Airmar B75H 12 Degree Tilt Bronze Thru Hull Chirp 10m Cable

Lowrance, Simrad Airmar B75M 12 Degree Tilt Thru Hull Chirp 10m Cable

Lowrance, Simrad Blue Plug Skimmer HDI 50-200, 455-800 kHz Transom Mount

Lowrance, Simrad Blue Plug Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer

Lowrance, Simrad LSS-2 - StructureScan HD Skimmer transducer

Lowrance, Simrad Plastic StructureScan HD thru-hull transducer

Lowrance, Simrad Stainless Steel StructureScan HD Pair off thru-hull transducers

Lowrance, Simrad Stainless Steel StructureScan HD Sonar thru-hull transducer.

Navico Airmar B75H 0 Degree Tilt Bronze Thru Hull Chirp 10m Cable

Navico Airmar B75H 20 Degree Tilt Bronze Thru Hull Chirp 10m Cable

9PIN HIGH SPEED SKIMMER L/H PK ASY

9PIN HIGH SPEED SKIMMER M/H PK ASY

B&G, Lowrance, Simrad XSonic Airmar B258 Bronze 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar B45 Bronze 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar M260 50-200 kHz In Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar P319 600W 50-200 kHz Plastic Through Hull

B&G, Lowrance, Simrad XSonic Airmar P66 Plastic 50-200 khz Transom mount transducer

B&G, Lowrance, Simrad XSonic Airmar P79 Plastic 50-200 kHz In Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 kHz Through Hull 0 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 12 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 20 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS260 1 kW 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 0 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 12 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 20 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar TM260 Plastic 50-200 khz Transom mount transducer

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 0 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 12 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 20 degree tilt

B&G, Lowrance, Simrad XSonic Skimmer HDI 50-200, 455-800 kHz Transom Mount

B&G, Lowrance, Simrad XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount

Lowrance, Simrad StructureScan 3D Stainless Steel Dual Thru-Hull Transducer

Lowrance, Simrad StructureScan 3D Transducer Stainless Steel Thru-Hull Single

Simrad NSS7 Evo2 MkII Sun Cover

12kW X-Band SRT LAN Pedestal (R5000)

B&G, Simrad NAC-2 Autopilot Computer

B&G, Simrad NAC-3 Autopilot Computer

Lowrance Halo 24 Radar

Lowrance, Simrad NAC-1 Autopilot Computer

Simrad R3016 Halo 6 Radar Kit

AC70 PCB

AD80 Analog Drive PCB

B&G Halo20 Pulse Compression Radar

B&G Halo20+ Pulse Compression Radar

SG05 Pro Autopilot Computer

Display

Screen size	7 inch
Resolution	480 x 800 px (WVGA)
Brightness	1200 nits
Touchscreen	Multi-touch screen with keypad and rotary control

Electrical

Supply voltage	10 to 31.2 V DC
Maximum power consumption	12 W
Recommended fuse rating	5 A

Environment

Operating temperature range	-15 C to +55 C
Storage temperature range	-20 C to +60 C
Waterproof rating	IPX6 and IPX7

Connectivity

GPS receiver	Internal 10 Hz, 32 channels; WAAS, EGNOS, MSAS
NMEA 2000	Micro-C, 1 LEN
Wi-Fi	Compatible with external WIFI-1 module

Sonar

Echosounder

Integrated CHIRP downscan and StructureScan/ForwardScan; compatible with SonarHub, BSM-3, BSM-2, BSM-1

Physical

Dimensions (W x H x D)	233 x 147 x 106 mm
Weight (display only)	1.164 kg
Mounting type	Supplied bracket, panel or flush mount

Approvals

Warranty

2 years

No videos available for this product.

What size and resolution is the NSS7 evo2 screen?

It has a 7-inch multi-touch display with a 480 x 800 pixel (WVGA) resolution and 1200 nits brightness, operated by touchscreen, keypad and rotary control.

Does it have built-in sonar?

Yes. It has an integrated CHIRP echosounder with DownScan and StructureScan/ForwardScan support, and is compatible with the SonarHub and BSM-3, BSM-2 and BSM-1 sonar modules.

Does the NSS7 evo2 have a built-in GPS?

Yes. It has an internal 10 Hz, 32-channel GPS receiver with WAAS, EGNOS and MSAS support.

How does it network with other devices?

It has a NMEA 2000 connection (Micro-C, 1 LEN) and is compatible with the external WIFI-1 module for wireless connectivity.

What is the waterproof rating and supply voltage?

The unit is rated to IPX6 and IPX7 and runs on a 10 to 31.2 V DC supply, drawing up to 12 W.

What warranty does it come with?

The NSS7 evo2 is supplied with a 2 year warranty.
