B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 20 Degree Tilt
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

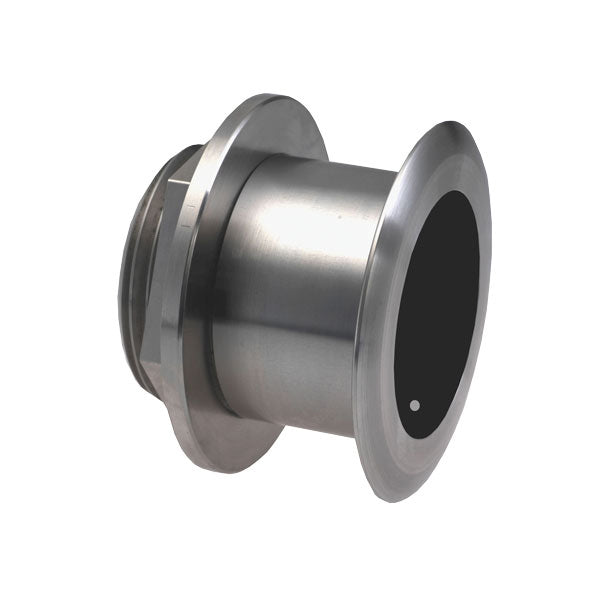

The SS164 is a low-profile, stainless-steel, 1 kW, 50/200 kHz through-hull transducer with a 20° tilted element, suited to hulls with 16° to 24° deadrise. The tilted-element design aims the beam vertically toward the seabed for stronger return echoes, while the low-profile housing keeps drag to a minimum at speed. Compatible with fibreglass and wood hulls and supplied with a 10 m cable and 9-pin connector.
PRODUCT DETAILS
- 1 kW dual-frequency 50/200 kHz stainless-steel through-hull transducer
- 20° tilted element suited to hulls with 16° to 24° deadrise
- Tilted-element design aims the beam vertically for stronger echoes
- Low-profile housing protrudes less than 6.35 mm (0.25 in) for clean high-speed performance
- Built-in depth and water-temperature sensing
- 10 m cable with 9-pin connector for B&G, Lowrance and Simrad displays
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
B&G Zeus S-12 Ultrawide 12 Inch Display
B&G Zeus3S 9 MFD
Lowrance Elite FS 7 No Transducer
Lowrance Elite-7 Ti2 No Transducer
Lowrance Elite-9 Ti Fishfinder Chartplotter TotalScan N Europe C-Map
Lowrance HDS PRO 9. No Transducer
Lowrance HDS-7 Live No Transducer
S3100 Sonar Module
Simrad NSS 4 - 10" Chartplotter and Fishfinder
Simrad NSS9 EVO3S 9 Inch MFD
Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer
Simrad S5100 high-performance CHIRP sonar module
B&G Zeus SR - 10" Chartplotter
Lowrance HDS-7 Carbon ROW with No Transducer
Lowrance HDS-7 Gen3 Multi -Touch Fishfinder Chartplotter no Transducer
Lowrance, Simrad, B&G SonarHub Sounder Module
Simrad NSS7 evo2 Combo 7-inch Multi-function Display
Simrad S2009 Dedicated 9-inch portrait display Fish Finder
Sonar
| Frequency | 50 / 200 kHz (dual frequency) |
| RMS Power | 1 kW |
| Element Tilt | 20° (tilted-element) |
| Element Configuration | Multiple-ceramic tilted-element array |
Sensor
| Functions | Depth and water temperature |
Installation
| Housing Material | Stainless steel |
| Hull Deadrise | 16° to 24° |
| Compatible Hull Material | Fibreglass and wood |
| Acoustic Window | Urethane |
| Connector | 9-pin |
| Cable Length | 10 m (33 ft) |
Physical
| Weight | 2.7 kg (6 lb) |
Application
| Recommended Boat Size | 8 m to 11 m (25 ft to 35 ft) |
Sonar Capability
| Traditional | Yes |
