This product has been discontinued by Lowrance and is no longer available to buy.
Lowrance

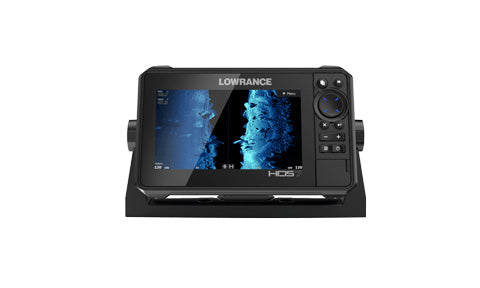

Lowrance HDS-7 Live No Transducer
Description
The Lowrance HDS-7 LIVE is a 7-inch multi-touch fishfinder and chartplotter that brings the best of Lowrance sonar to a compact display. It is compatible with Active Imaging 3-in-1, ActiveTarget Live Sonar, FishReveal and LiveSight, and supports CHIRP, DownScan and SideScan across two sonar channels. C-MAP charting with C-MAP Genesis Live real-time mapping and LiveCast smartphone integration keep you on the fish, while Ethernet and NMEA 2000 networking let the unit grow with your boat. The high-resolution SolarMAX HD display stays clear from any angle, even through polarised sunglasses. This version is supplied without a transducer.
PRODUCT DETAILS
- 7-inch multi-touch SolarMAX HD display, 1024 x 600 resolution, viewable from any angle including through polarised sunglasses
- Compatible with Active Imaging 3-in-1, ActiveTarget Live Sonar, FishReveal and LiveSight sonar
- Built-in CHIRP, DownScan and SideScan sonar across two sonar channels
- C-MAP charts with C-MAP Genesis Live real-time mapping and LiveCast smartphone integration
- Networks over Ethernet and NMEA 2000, with internal Wi-Fi and Bluetooth
- IPX6 and IPX7 waterproof rating
- HDS-7 LIVE display unit
- U-bracket kit (plastic)
- Sun cover
- Power cable kit
- Documentation pack
No exploded diagram available for this product.
9PIN HIGH SPEED SKIMMER L/H PK ASY
9PIN HIGH SPEED SKIMMER M/H PK ASY
B&G, Lowrance, Simrad TotalScan Skimmer Transducer
B&G, Lowrance, Simrad TotalScan Thru Hull Transducer Medium High CHIRP
B&G, Lowrance, Simrad TotalScan Thru Hull Transducer with Low and High CHIRP
B&G, Lowrance, Simrad XSonic Airmar B258 Bronze 50-200 khz Through Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar B45 Bronze 50-200 khz Through Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar M260 50-200 kHz In Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar P319 600W 50-200 kHz Plastic Through Hull
B&G, Lowrance, Simrad XSonic Airmar P66 Plastic 50-200 khz Transom mount transducer
B&G, Lowrance, Simrad XSonic Airmar P79 Plastic 50-200 kHz In Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 kHz Through Hull 0 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 12 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 20 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS260 1 kW 50-200 khz Through Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 0 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 12 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 20 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar TM260 Plastic 50-200 khz Transom mount transducer
B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 0 degree tilt
B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 12 degree tilt
Lowrance ActiveTarget 2 (Module + Transducer + Mounts)
B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 20 degree tilt
B&G, Lowrance, Simrad XSonic Skimmer HDI 50-200, 455-800 kHz Transom Mount
B&G, Lowrance, Simrad XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount
Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Lowrance Active Target Live Sonar, Transducer Module and Cables
Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer
Lowrance, Simrad LSS-2 - StructureScan HD Skimmer transducer
Lowrance, Simrad Plastic StructureScan HD thru-hull transducer
Lowrance, Simrad Stainless Steel StructureScan HD Pair off thru-hull transducers
Lowrance, Simrad Stainless Steel StructureScan HD Sonar thru-hull transducer.
Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 20 Degree Tilt
Lowrance Halo20 Pulse Compression Radar
Lowrance Halo20+ Pulse Compression Radar
Lowrance Halo 24 Radar
Lowrance NAC-1 Outboard Hydraulic Pilot Pack
Lowrance Point-1 GPS Glonass With Electronic Compass
Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance Active Target Live Sonar, Transducer Module and Cables
Lowrance ActiveTarget 2 (Module + Transducer + Mounts)
Lowrance HDI Skimmer® Transom Mount transducer
Lowrance HDI Skimmer® Transom Mount transducer with Temperature
Lowrance Bullet Skimmer Transducer
Lowrance SplitShot Skimmer Transducer
Lowrance TripleShot Skimmer Transducer
Lowrance, Branded XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer
Lowrance, Simrad NAC-1 Autopilot Computer
B&G, Simrad NAC-2 Autopilot Computer
B&G, Simrad NAC-3 Autopilot Computer
B&G Halo20+ Pulse Compression Radar
B&G Halo20 Pulse Compression Radar
Ghost lift assist kit 47"
Recon™ Saltwater 54" Trolling Motor
Display
| Screen size | 7 in |
| Resolution | 1024 x 600 |
| Brightness | >1200 nits |
| Touchscreen | Multi-touch |
| Viewing angles | 80 deg top/bottom, 80 deg left/right |
Sonar
| Sonar CH1 (blue) | CHIRP sonar and DownScan |
| Sonar CH2 (black) | CHIRP sonar, DownScan, SideScan and Active Imaging / 3-in-1 / TotalScan / StructureScan |
| Sonar ports | 2 ports |
Electrical
| Supply voltage | 13.8 V DC (10 - 17 V DC) |
| Power consumption (max) | 23.5 W (1.7 A at 13.8 V DC) |
| Recommended fuse rating | 3 A |
Connectivity
| NMEA 2000 | 1 port (Micro-C) |
| NMEA 0183 | 1 port (via the power connector) |
| Ethernet | 1 port (5-pin connector) |
| Analog video | 1 port (via the power cable, adapter cable sold separately) |
| Card reader | 2 slots (microSD SDXC), max 32 GB per card |
| Wi-Fi | Internal 802.11b/g/n |
| Bluetooth | Bluetooth 4.0 with support for Bluetooth Classic |
Environment
| Operating temperature | -15 C to +55 C (5 F to 131 F) |
| Storage temperature | -20 C to +60 C (4 F to 140 F) |
| Waterproof rating | IPX6 and IPX7 |
| Shock and vibration | 100,000 cycles of 20 G |
Physical
| Dimensions (W x H x D) | 234.0 x 145.6 x 64.7 mm |
| Weight (display only) | 1.04 kg (2.29 lb) |
| Compass safe distance | 50 cm |
| Mounting type | Panel mount or bracket mount |
