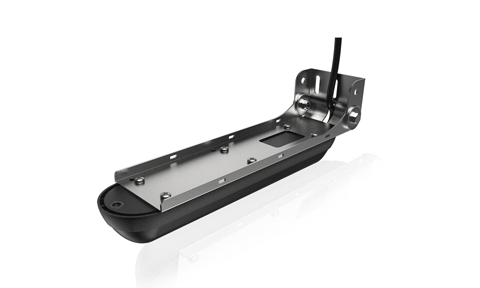

Lowrance Active Imaging 3 in 1 Transducer 1.8m cable

Lowrance

Lowrance Active Imaging 3 in 1 Transducer 1.8m cable

Name: Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Brand: Lowrance
SKU: 000-14814-001
Price: 400.00 GBP
Availability: InStock

£400.00

Tax included. Shipping calculated at checkout.

000-14814-001

The Lowrance Active Imaging 3-in-1 transducer combines CHIRP, SideScan and DownScan in one transom-mount unit, with FishReveal to show fish clearly against structure. It runs 200/83 kHz CHIRP plus 455/800 kHz imaging on a 1.8 m cable and 9-pin connector for HDS LIVE, HDS Carbon and Elite Ti2.

Quantity

✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

No extended cover
+1 year cover £20.00
+2 years cover £40.00
+3 years cover £60.00

Extended cover is added to your order and confirmed with your warranty documentation.

Description

The Lowrance Active Imaging 3-in-1 transducer combines CHIRP sonar, SideScan and DownScan in a single transom-mount unit, giving anglers a complete picture of fish and structure around and beneath the boat. High-resolution imaging makes it easy to pick out fish-holding cover such as rockpiles, standing timber, weedbeds and drop-offs at greater range than conventional imaging.

Its standout feature is FishReveal, which overlays CHIRP sonar fish returns on the detailed DownScan view so fish stand out clearly against structure on one screen. Built-in depth and temperature sensing are included, and the short 1.8 m cable with a 9-pin connector suits transom installations on compatible HDS LIVE, HDS Carbon and Elite Ti2 displays.

PRODUCT DETAILS

Three sonar technologies in one: CHIRP, SideScan and DownScan
FishReveal Smart Target View shows fish clearly against detailed DownScan
200 kHz / 83 kHz CHIRP plus 455 / 800 kHz SideScan and DownScan
CHIRP soundings to 305 m (1,000 ft); DownScan to 91 m (300 ft)
Plastic transom mount with built-in depth and temperature sensing
1.8 m (6 ft) cable with 9-pin connector for HDS LIVE, HDS Carbon and Elite Ti2

Lowrance Active Imaging 3-in-1 transom-mount transducer (1.8 m cable, 9-pin connector)
Transom mounting bracket and hardware
Installation instructions

No exploded diagram available for this product.

No compatible transducers listed for this product.

xSonic Pigtail Transducer Wiring Block Adapter

Sonar

Sonar Types	CHIRP (2D) + SideScan + DownScan with FishReveal
2D / CHIRP Frequency	200 kHz (High CHIRP) / 83 kHz (Medium CHIRP)
SideScan / DownScan Frequency	455 kHz / 800 kHz
Maximum Depth (2D)	305 m (1,000 ft)
Maximum Depth (DownScan)	91 m (300 ft)
SideScan Range	91 m (300 ft) side at 455 kHz; 46 m (150 ft) side at 800 kHz
Functions	Depth and water temperature

Physical

Mount Type	Plastic transom mount (also flush-step / jack-plate)
Cable Length	1.8 m (6 ft)

Connectivity

Connector

9-pin (black Lowrance)

Environment

Operating Temperature

-15°C to +55°C (5°F to 131°F)

Compatibility

Compatible Displays

HDS LIVE, HDS Carbon, Elite Ti2

HDS8/8m & HDS10/10m Quick Start Guide

What sonar does the Active Imaging 3-in-1 provide?

It combines CHIRP 2D sonar, SideScan and DownScan in one transducer, plus FishReveal to show fish clearly against detailed DownScan images.

What frequencies does it use?

It runs 200 kHz High CHIRP and 83 kHz Medium CHIRP for 2D, plus 455 and 800 kHz for SideScan and DownScan.

How deep will it read?

CHIRP 2D soundings reach around 305 m (1,000 ft), with DownScan to around 91 m (300 ft).

Which displays is it compatible with?

The Active Imaging 3-in-1 works with HDS LIVE, HDS Carbon and Elite Ti2 displays.

What is the cable length on this version?

This version (000-14814-001) has a 1.8 m (6 ft) cable with a 9-pin connector.
