Lowrance

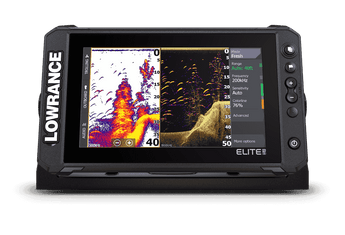

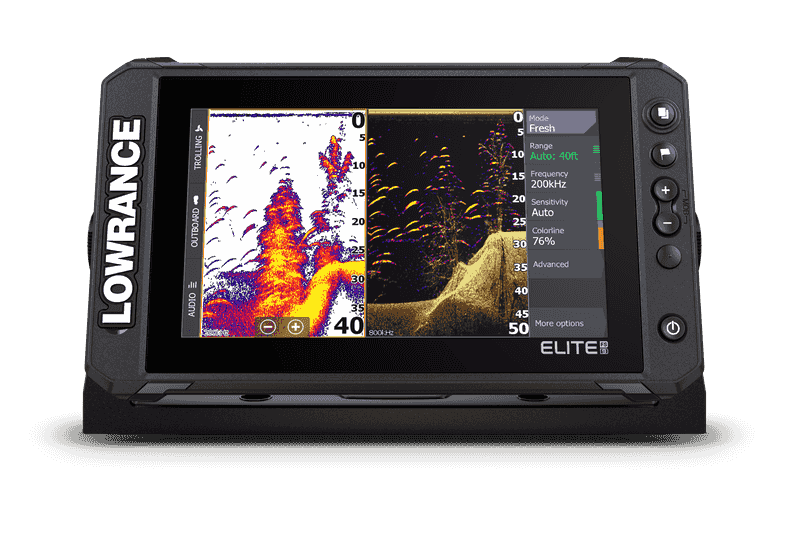

Lowrance Elite FS 9 Active Imaging 3-in-1 Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Lowrance Elite FS 9 is a 9-inch fishing system that gives you access to the full line-up of Lowrance fishfinding tools on a larger, easy-to-read display. Its high-resolution SolarMAX multi-touch screen stays bright and clear in direct sunlight and through polarised glasses, so your sonar and charts remain easy to follow in any conditions.
\nSupplied with the Active Imaging 3-in-1 transducer, this model delivers wide-angle CHIRP sonar together with the high-resolution SideScan and DownScan Imaging views that reveal structure, cover and fish around the boat. Add the ActiveTarget Live Sonar module and you can watch fish move and react to your lure in real time. The Elite FS networks over Ethernet, NMEA 2000 and Wi-Fi, drives Lowrance HALO radar domes directly, and gives full touchscreen control of compatible Ghost trolling motors and Power-Pole anchors.
\nBuilt-in 10 Hz GPS and preloaded C-MAP charts make it easy to navigate and return to productive water, with C-MAP Genesis Live real-time mapping and upgrade paths to C-MAP, Navionics and more.
PRODUCT DETAILS
- High-resolution 9-inch multi-touch SolarMAX display, sunlight readable at over 1200 nits
- Supplied with the Active Imaging 3-in-1 transducer for CHIRP sonar, SideScan and DownScan Imaging
- FishReveal combines CHIRP sonar and DownScan Imaging on one screen to make fish easier to spot
- Compatible with ActiveTarget Live Sonar via an add-on module for real-time fish movement
- Built-in 10 Hz GPS with preloaded C-MAP charts for precise navigation and waypoint marking
- Full networking with Ethernet, NMEA 2000 and Wi-Fi to share sonar, charts and data between displays
- Drives Lowrance HALO radar domes directly and integrates with NMEA 2000 instruments
- Elite FS 9 display unit
- Active Imaging 3-in-1 transducer
- Plastic gimbal bracket kit
- Sun cover
- Power cable kit
- Documentation pack
No exploded diagram available for this product.
No compatible transducers listed for this product.
Lowrance Point-1 GPS Glonass With Electronic Compass
Lowrance, Branded XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer
Lowrance HDI Skimmer® Transom Mount transducer with Temperature
Lowrance Bullet Skimmer Transducer
Lowrance SplitShot Skimmer Transducer
Lowrance TripleShot Skimmer Transducer
Lowrance HDI Skimmer® Transom Mount transducer
Image coming soonLowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance Halo 24 Radar
Lowrance Halo20+ Pulse Compression Radar
Lowrance Halo20 Pulse Compression Radar
Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Lowrance Active Target Live Sonar, Transducer Module and Cables
Lowrance NAC-1 Outboard Hydraulic Pilot Pack
Lowrance ActiveTarget 2 (Module + Transducer + Mounts)
Display
| Screen size | 9 in |
| Resolution | 800 x 480 |
| Brightness | > 1200 nits |
| Touch screen | Multi-touch |
| Viewing angles | 50 deg top, 60 deg bottom, 70 deg left/right |
Sonar
| Sonar port | 1 x 9-pin connector |
| Sonar support | CHIRP sonar, DownScan, SideScan, Active Imaging / Active Imaging 3-in-1, TotalScan, StructureScan, LiveSight (via PSI-1), ActiveTarget (via module) |
GPS
| Internal GPS | 10 Hz high-speed update |
| GPS augmentation | WAAS, MSAS, EGNOS, GLONASS |
Connectivity
| NMEA 2000 | 1 port (Micro-C connector) |
| Ethernet | 1 port (5-pin, 100Base-T) |
| Wi-Fi | Internal 802.11 b/g/n |
| Bluetooth | 4.0 with Bluetooth Classic support |
| Card reader | 1 x slot (microSD, SDXC) |
Electrical
| Supply voltage | 12 V DC (10.8 - 17 V DC min - max) |
| Fuse rating | 3 A |
| Power consumption (max) | 28 W (2 A at 13.8 V DC) |
Environment
| Operating temperature | -15 C to 55 C (5 F to 131 F) |
| Storage temperature | -20 C to 60 C (-4 F to 140 F) |
| Waterproof rating | IPx6 and IPx7 |
Physical
| Weight (display only) | 1.2 kg (2.7 lb) |
| Dimensions (W x H x D) | 289.0 x 170.5 x 91.9 mm (display, excl. bracket) |
| Compass safe distance | 0.5 m (1.6 ft) |
| Mounting | Gimbal bracket or flush/panel mount |
