Lowrance

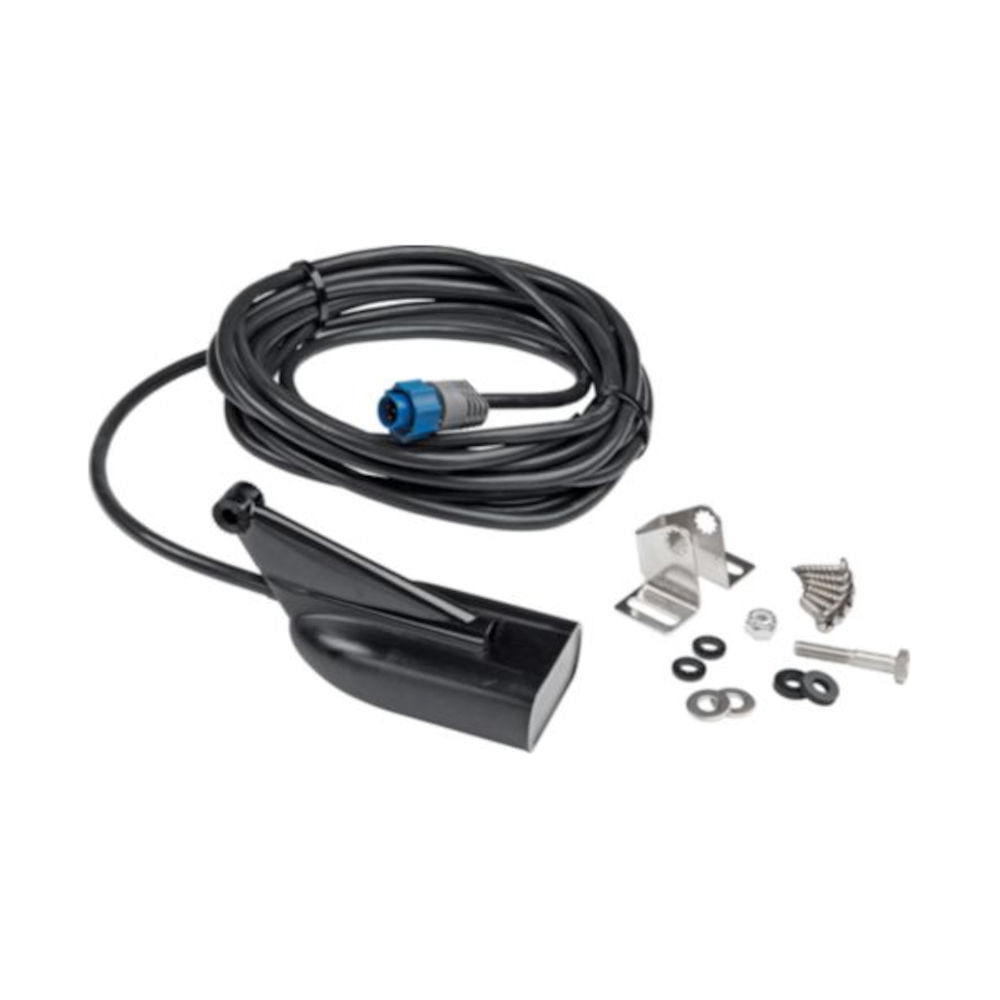

Lowrance HDI Skimmer® Transom Mount transducer with Temperature
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Lowrance HDI Skimmer transom-mount transducer pairs a broadband 2D sounder with DownScan Imaging, so you get clear fish arches and photo-like images of structure from a single unit. It runs 83/200 kHz for traditional sounding and 455/800 kHz for DownScan, reaching around 305 m (1,000 ft) on 2D and 107 m (350 ft) on DownScan.
This version includes a built-in water-temperature sensor and is supplied with a transom mounting bracket and hardware, on a 1.8 m (6 ft) cable terminating in a 9-pin xSonic connector for compatible Lowrance displays.
PRODUCT DETAILS
- Hybrid Dual Imaging: broadband 2D sounder plus DownScan Imaging
- 83/200 kHz sounder with 455/800 kHz DownScan
- 2D soundings to 305 m (1,000 ft); DownScan to 107 m (350 ft)
- Built-in water-temperature sensor
- Transom mount with bracket and hardware included
- 1.8 m (6 ft) cable with 9-pin xSonic connector
- Lowrance HDI Skimmer transom-mount transducer with temperature (1.8 m cable, 9-pin xSonic)
- Transom mounting bracket and hardware
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
Lowrance Hook Reveal-5 83-200 HDI Chartplotter Fishfinder
Lowrance Hook Reveal-7 50-200 HDI Chartplotter Fishfinder
Lowrance Hook Reveal-7 83-200 HDI Chartplotter Fishfinder
Lowrance Hook Reveal-9 50-200 HDI Chartplotter Fishfinder
Lowrance Elite FS 7 No Transducer
Lowrance Elite FS 9 No Transducer
Lowrance HDS-7 Live No Transducer
Lowrance HDS-9 Live No Transducer
Lowrance HDS-12 Live No Transducer
Lowrance HDS-16 Live No Transducer
Lowrance HDS PRO 9. No Transducer
Lowrance HDS PRO 10. No transducer
Lowrance HDS PRO 16. No Transducer
Sonar
| Sonar Types | Hybrid Dual Imaging (HDI): broadband 2D sounder + DownScan Imaging |
| Operating Frequency | 83 / 200 kHz (2D) + 455 / 800 kHz (DownScan) |
| Maximum Depth (2D) | Up to 305 m (1,000 ft) |
| Maximum Depth (DownScan) | Up to 107 m (350 ft) |
| Functions | Depth and water temperature (built-in temperature sensor) |
Physical
| Mount Type | Transom mount (bracket and hardware included) |
| Cable Length | 1.8 m (6 ft) |
| Housing | Lowrance-branded blue |
Connectivity
| Connector | 9-pin (black xSonic) |
No videos available for this product.
No downloads available for this product.
