Lowrance

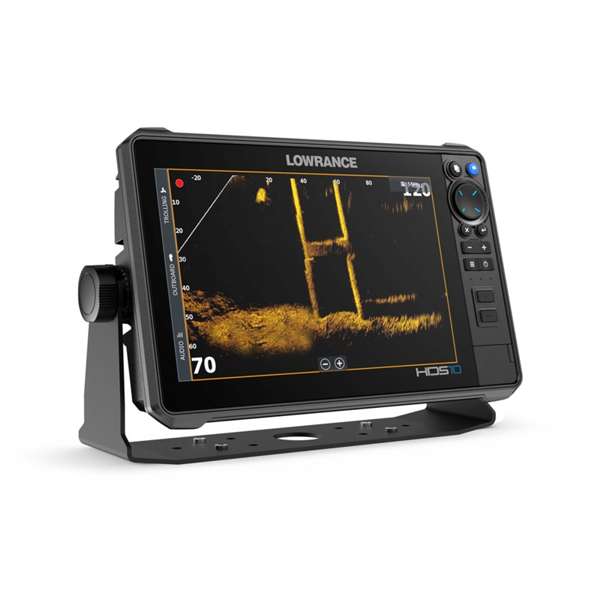

Lowrance HDS PRO 10. No transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The HDS PRO 10 is a 10-inch fishfinder and chartplotter from Lowrance's flagship HDS PRO range, offering a generous high-definition view without the footprint of the larger glass-bridge displays. Its SolarMAX HD touchscreen stays bright and readable in direct sunlight and through polarised glasses, while large programmable keys keep control easy when conditions turn rough.
Supplied without a transducer, it lets you pair the Active Imaging HD or ActiveTarget 2 system that best suits how and where you fish. The unit sits at the heart of a full Lowrance system, with bow-to-stern networking over Ethernet and NMEA 2000, built-in Wi-Fi and Bluetooth, and touchscreen control of compatible radar, autopilot, Ghost trolling motors and Power-Pole anchors.
Preloaded C-MAP charts and C-MAP Genesis Live real-time mapping help you find productive water and navigate back to it, with upgrade paths to C-MAP DISCOVER, C-MAP REVEAL and Navionics charts.
PRODUCT DETAILS
- 10-inch multi-touch SolarMAX HD display, 1280 x 800 resolution and over 1200 nits brightness for clear viewing in direct sunlight
- Ultra high-definition Active Imaging HD sonar and high-resolution ActiveTarget 2 Live Sonar ready for detailed views of fish and structure
- Built-in CHIRP, DownScan and SideScan sonar across two sonar channels (up to 1 kW)
- Preloaded with the latest C-MAP charts plus C-MAP Genesis Live real-time mapping
- Full networking from bow to stern over Ethernet and NMEA 2000, with internal Wi-Fi and Bluetooth 5.2
- IPX6 and IPX7 waterproof rating for reliable performance in the marine environment
- HDS PRO 10 display unit
- Gimbal bracket kit (metal)
- Sun cover
- Power cable kit
- Documentation pack
No exploded diagram available for this product.
Lowrance Halo20 Pulse Compression Radar
Lowrance Halo20+ Pulse Compression Radar
Lowrance Halo 24 Radar
Lowrance NAC-1 Outboard Hydraulic Pilot Pack
Lowrance Point-1 GPS Glonass With Electronic Compass
Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Image coming soonLowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance Active Target Live Sonar, Transducer Module and Cables
Lowrance ActiveTarget 2 (Module + Transducer + Mounts)
Lowrance HDI Skimmer® Transom Mount transducer
Lowrance HDI Skimmer® Transom Mount transducer with Temperature
Lowrance Bullet Skimmer Transducer
Lowrance SplitShot Skimmer Transducer
Lowrance TripleShot Skimmer Transducer
Lowrance, Branded XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer
Display
| Screen size | 10 in |
| Resolution | 1280 x 800 |
| Brightness | >1200 nits |
| Touchscreen | Multi-touch |
| Viewing angles | 80 deg top/bottom, 80 deg left/right |
Sonar
| CHIRP sonar | Low, Medium and High CHIRP up to 1 kW |
| DownScan | 455 kHz, 800 kHz; CHIRP 700 kHz and 1200 kHz |
| SideScan | 455 kHz, 800 kHz; CHIRP 455 kHz and 1075 kHz |
| Sonar ports | 2 ports (9-pin connector) |
Electrical
| Supply voltage | 12 V DC (10.8 - 18 V DC) |
| Power consumption (max) | 40 W (2.9 A at 13.8 V DC) |
| Recommended fuse rating | 3 A |
Connectivity
| NMEA 2000 | 1 port (Micro-C connector) |
| NMEA 0183 | 1 port (via the power connector) |
| Ethernet | 100BASE-T, 2 ports (5-pin connector) |
| Analog video | 1 port (via the power cable, adapter cable sold separately) |
| Card reader | 2 slots (microSD SDXC) |
| Wi-Fi | Internal 802.11b/g/n |
| Bluetooth | Bluetooth 5.2 with support for Bluetooth classic |
Environment
| Operating temperature | -15 C to 55 C (5 F to 131 F) |
| Storage temperature | -30 C to 70 C (-22 F to 158 F) |
| Waterproof rating | IPX6 and IPX7 |
| Shock and vibration | 100,000 cycles of 20 G |
Physical
| Weight (display only) | 1.66 kg (3.66 lb) |
| Compass safe distance | 65 cm (2.1 ft) |
| Mounting type | Panel mount or bracket mount |
