Lowrance

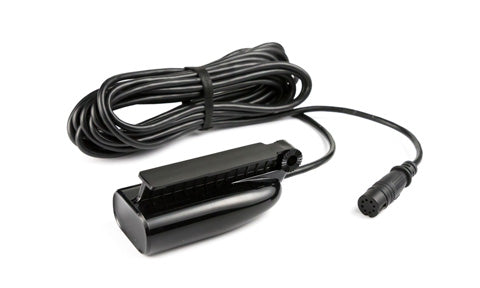

Lowrance SplitShot Skimmer Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Lowrance SplitShot Skimmer transducer features wide-angle High CHIRP sonar plus DownScan Imaging, giving HOOK2 and HOOK Reveal SplitShot fishfinders a broad 2D view of fish alongside detailed images of structure below the boat. It reaches around 152 m (500 ft) on 2D sonar and 91 m (300 ft) on DownScan.
Built-in water-temperature sensing is included, and the transom-mount Skimmer is supplied on a 6.1 m (20 ft) cable with an 8-pin connector.
PRODUCT DETAILS
- Wide-angle High CHIRP 2D sonar plus DownScan Imaging
- High CHIRP / 200 kHz 2D with 455/800 kHz DownScan
- 2D soundings to around 152 m (500 ft); DownScan to 91 m (300 ft)
- Built-in water-temperature sensing
- Transom mount on a 6.1 m (20 ft) cable with 8-pin connector
- For HOOK2 and HOOK Reveal SplitShot fishfinders
- Lowrance SplitShot Skimmer transom-mount transducer (6.1 m cable, 8-pin connector)
- Transom mounting hardware
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
Sonar Capability
| Downscan | Yes |
| Chirp | Yes |
| Traditional | Yes |
Sonar
| Sonar Types | Wide-angle High CHIRP 2D + DownScan Imaging |
| Operating Frequency | High CHIRP / 200 kHz (2D) + 455 / 800 kHz (DownScan) |
| Maximum Depth (2D) | Up to 152 m (500 ft) |
| Maximum Depth (DownScan) | Up to 91 m (300 ft) |
| Functions | Depth and water temperature (built-in) |
Physical
| Mount Type | Transom |
| Cable Length | 6.1 m (20 ft) |
Connectivity
| Connector | 8-pin |
Compatibility
| Compatible Displays | HOOK2 and HOOK Reveal SplitShot units |
