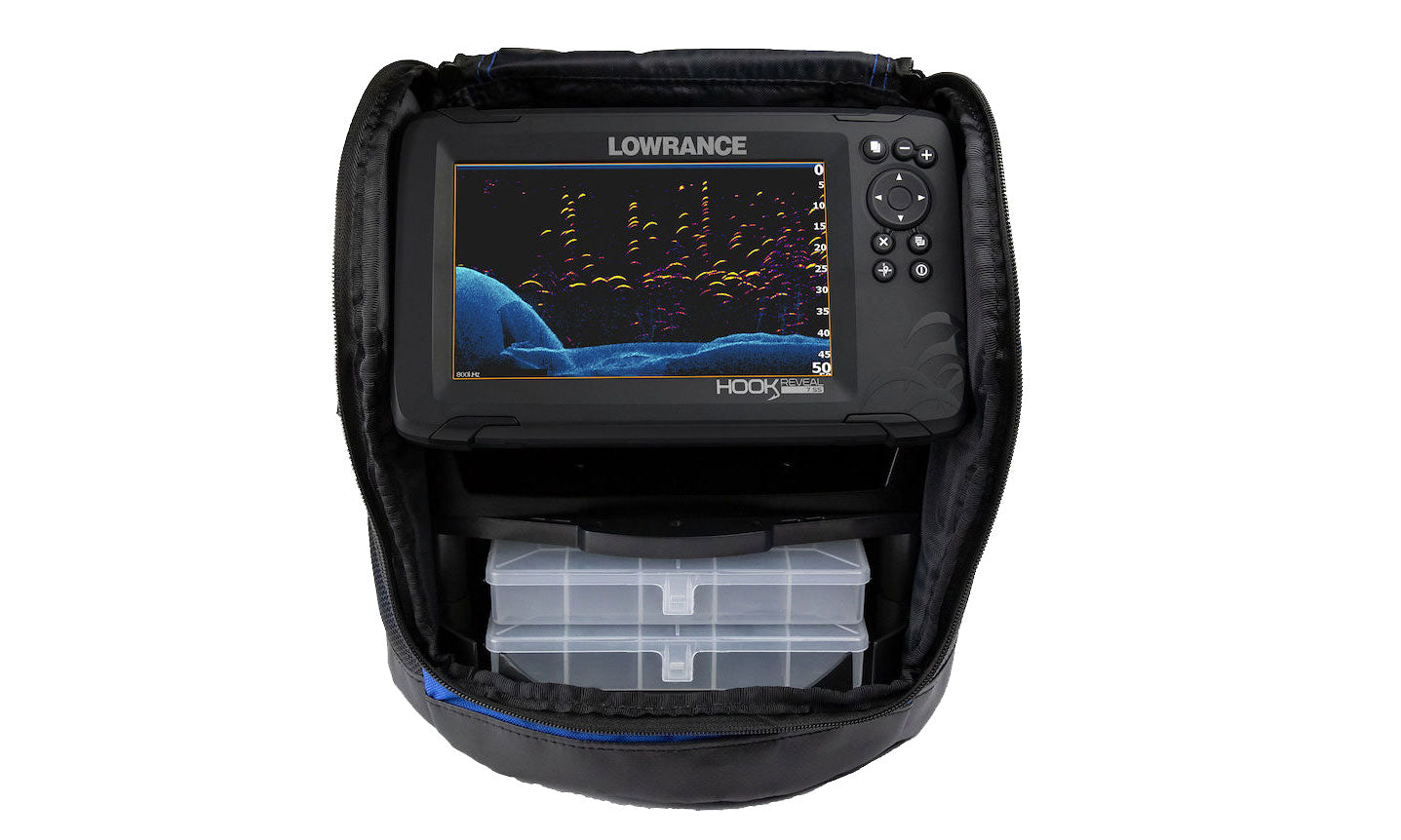

Lowrance Hook Reveal-7 Splitshot Icemachine Chartplotter Fishfinder
Description
From the world's best-selling series of fishfinders, the Lowrance HOOK Reveal 7 SplitShot Ice Machine is an all-season package built for anglers who fish through the seasons. Its sunlight-readable 7-inch SolarMAX display stays clear and bright even in direct sunlight.
The bundle includes a SplitShot transducer, which delivers wide-angle High CHIRP sonar for excellent fish detection together with the high-resolution structure detail of DownScan Imaging, plus a dedicated ice-fishing transducer for hard-water use. The standout FishReveal feature overlays CHIRP sonar and DownScan Imaging on a single screen so fish targets are easier to identify, while Autotuning sonar keeps the image sharp by adjusting settings automatically as conditions change.
A built-in GPS Plotter makes route, trail and waypoint navigation simple, and Genesis Live lets you create custom contour maps of your local water in real time. The HOOK Reveal 7 supports C-MAP DISCOVER OnBoard cartography and mounts easily on a gimbal bracket or flush in the dash.
PRODUCT DETAILS
- 7-inch SolarMAX colour display, sunlight readable for clear views in bright conditions
- All-season pack: supplied with a SplitShot transducer plus an ice-fishing transducer
- SplitShot transducer delivers wide-angle High CHIRP sonar and DownScan Imaging
- FishReveal combines CHIRP sonar and DownScan Imaging on one screen so fish are easier to see
- Autotuning sonar adjusts settings automatically as conditions change
- Built-in GPS Plotter and Genesis Live real-time mapping; C-MAP DISCOVER ready
- Ideal for open-water and hard-water (ice) fishing from a single unit
- HOOK Reveal 7 display unit
- SplitShot transducer
- Ice-fishing transducer
- Bracket mounting kit
- Power cable and fuse kit
- Documentation pack
No exploded diagram available for this product.
No compatible transducers listed for this product.
Lowrance Point-1 GPS Glonass With Electronic Compass
Lowrance HDI Skimmer® Transom Mount transducer with Temperature
Lowrance Bullet Skimmer Transducer
Lowrance SplitShot Skimmer Transducer
Lowrance TripleShot Skimmer Transducer
Lowrance HDI Skimmer® Transom Mount transducer
Lowrance Halo 24 Radar
Lowrance Halo20+ Pulse Compression Radar
Lowrance Halo20 Pulse Compression Radar
Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Lowrance NAC-1 Outboard Hydraulic Pilot Pack
Display
| Screen size | 7 in |
| Resolution | 800 x 480 |
| Display type | SolarMAX colour, Pure White LED backlight |
| Brightness | > 1000 nits |
| Viewing angles | 60 deg top, 50 deg bottom, 70 deg left/right |
| Backlight | Sunlight readable |
Sonar
| Sonar type | Integrated CHIRP, Broadband, DownScan (SideScan on TripleShot models) |
| Sonar features | FishReveal, Autotuning sonar, DownScan Imaging |
GPS
| Internal GPS | 1 Hz (GPS, GLONASS, WAAS, EGNOS, MSAS) |
| GPS correction | DGPS, WAAS |
| Time to first fix | 30 s |
| Waypoints / Routes / Trails | 3000 / 100 / 100 |
Connectivity
| Card reader | 1 x microSD slot (32 GB max) |
| Cartography | GPS Plotter; C-MAP DISCOVER OnBoard (model dependent) |
Electrical
| Supply voltage | 12 V DC (10.4 - 17.0 V DC) |
| Power consumption (max) | < 16.3 W |
| Recommended fuse | 3 A |
Environment
| Operating temperature | -15 C to 55 C (5 F to 131 F) |
| Storage temperature | -20 C to 60 C (-4 F to 140 F) |
| Waterproof rating | IPx6 and IPx7 (card door closed) |
| Shock and vibration | 100,000 cycles of 20 G |
Physical
| Weight (display only) | 0.70 kg (1.54 lb) |
| Dimensions (W x H x D) | 236.4 x 164.2 x 112.3 mm (incl. bracket) |
| Compass safe distance | 300 mm (12 in) |
| Mounting | Gimbal bracket or front-dash flush mount |
| Interface | 8-way keypad with dedicated Zoom, Pages, Cursor/Waypoint, Menu/Enter, Exit and Power keys |
Approvals
| Compliance | FCC, Industry Canada, Radio Equipment Directive (RED), ACMA, RSM |
