Lowrance TripleShot Skimmer Transducer Lowrance TripleShot Skimmer Transducer
Lowrance TripleShot Skimmer Transducer

Lowrance

Lowrance TripleShot Skimmer Transducer

£190.00
Tax included. Shipping calculated at checkout.
000-14029-001
The Lowrance TripleShot Skimmer combines wide-angle High CHIRP 2D sonar with SideScan and DownScan Imaging in one transom-mount transducer for HOOK2 and HOOK Reveal TripleShot units. It offers a 40-degree 2D beam, SideScan out to around 183 m and an 8-pin connection on a 6.1 m cable.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Navico Extended Warranty

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

Extended cover is added to your order and confirmed with your warranty documentation.

Description

The Lowrance TripleShot Skimmer transducer features wide-angle High CHIRP sonar plus SideScan and DownScan Imaging, giving HOOK2 and HOOK Reveal TripleShot fishfinders a complete picture of fish and structure around the boat. The 40-degree 2D beam reaches around 152 m (500 ft), DownScan reaches 91 m (300 ft) and SideScan covers up to 183 m (600 ft) side to side.

Built-in water-temperature sensing is included, and the transom-mount Skimmer is supplied on a 6.1 m (20 ft) cable with an 8-pin connector.

PRODUCT DETAILS

  • Wide-angle High CHIRP 2D sonar plus SideScan and DownScan Imaging
  • High CHIRP / 200 kHz 2D with 455/800 kHz SideScan and DownScan
  • 40° 2D beam; SideScan range to around 183 m (600 ft) side to side
  • 2D soundings to around 152 m (500 ft); DownScan to 91 m (300 ft)
  • Built-in water-temperature sensing
  • Transom mount on a 6.1 m (20 ft) cable with 8-pin connector for HOOK2 and HOOK Reveal TripleShot units

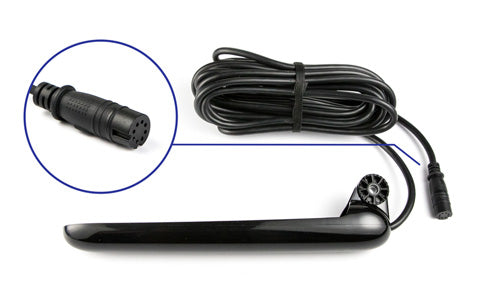

  • Lowrance TripleShot Skimmer transom-mount transducer (6.1 m cable, 8-pin connector)
  • Transom mounting hardware
  • Installation instructions

No exploded diagram available for this product.

No compatible transducers listed for this product.

Lowrance TripleShot Transom Bracket

Lowrance TripleShot Transom Bracket

Image coming soon

Lowrance Hook2 TripleShot/SplitShot 10 Ft Extension Cable

HOOK² / Reveal Transducer Y-Cable

HOOK² / Reveal Transducer Y-Cable

Lowrance Hook Reveal-7 Tripleshot Chartplotter Fishfinder

Lowrance Hook Reveal-7 Tripleshot Chartplotter Fishfinder

Lowrance Hook Reveal-9 Tripleshot Chartplotter Fishfinder

Lowrance Hook Reveal-9 Tripleshot Chartplotter Fishfinder

Sonar Capability

DownscanYes
SidescanYes
ChirpYes
TraditionalYes

Sonar

Sonar TypesWide-angle High CHIRP 2D + SideScan + DownScan Imaging
Operating FrequencyHigh CHIRP / 200 kHz (2D) + 455 / 800 kHz (SideScan & DownScan)
Beamwidth (2D)40°
Maximum Depth (2D)Up to 152 m (500 ft)
Maximum Depth (DownScan)Up to 91 m (300 ft)
SideScan RangeUp to 183 m (600 ft) side to side
FunctionsDepth and water temperature (built-in)

Physical

Mount TypeTransom
Cable Length6.1 m (20 ft)

Connectivity

Connector8-pin

Compatibility

Compatible DisplaysHOOK2 and HOOK Reveal TripleShot units

No videos available for this product.

No downloads available for this product.

What sonar does the TripleShot provide?
It combines wide-angle High CHIRP 2D sonar with SideScan and DownScan Imaging, using High CHIRP / 200 kHz for 2D and 455/800 kHz for SideScan and DownScan.
Which units is it for?
The TripleShot is for HOOK2 and HOOK Reveal TripleShot fishfinders.
What are its ranges?
The 40-degree 2D beam reaches around 152 m (500 ft), DownScan reaches 91 m (300 ft) and SideScan covers up to 183 m (600 ft) side to side.
What connector and cable does it use?
It is supplied on a 6.1 m (20 ft) cable with an 8-pin connector, and includes built-in water-temperature sensing.
