Lowrance HDI Skimmer® Transom Mount transducer

Name: Lowrance HDI Skimmer® Transom Mount transducer
Brand: Lowrance
SKU: 000-14267-001
Availability: Discontinued

000-14267-001

The Lowrance HDI Skimmer transom-mount transducer combines a broadband 2D sounder with DownScan Imaging, running 83/200 kHz plus 455/800 kHz. This version is supplied without a temperature sensor, on a 2 m cable with a 9-pin black xSonic connector.

Description

The Lowrance HDI Skimmer transom-mount transducer pairs a broadband 2D sounder with DownScan Imaging, delivering clear fish arches alongside photo-like images of structure from one unit. It runs 83/200 kHz for traditional sounding and 455/800 kHz for DownScan, reaching around 305 m (1,000 ft) on 2D and 107 m (350 ft) on DownScan.

This variant is supplied without a temperature sensor, in a Lowrance-branded blue housing on a 2 m (6 ft) cable with a 9-pin black xSonic connector for compatible Lowrance displays.

PRODUCT DETAILS

Hybrid Dual Imaging: broadband 2D sounder plus DownScan Imaging
83/200 kHz sounder with 455/800 kHz DownScan
2D soundings to 305 m (1,000 ft); DownScan to 107 m (350 ft)
Transom mount in a Lowrance-branded blue housing
No temperature sensor on this variant
2 m (6 ft) cable with 9-pin black xSonic connector

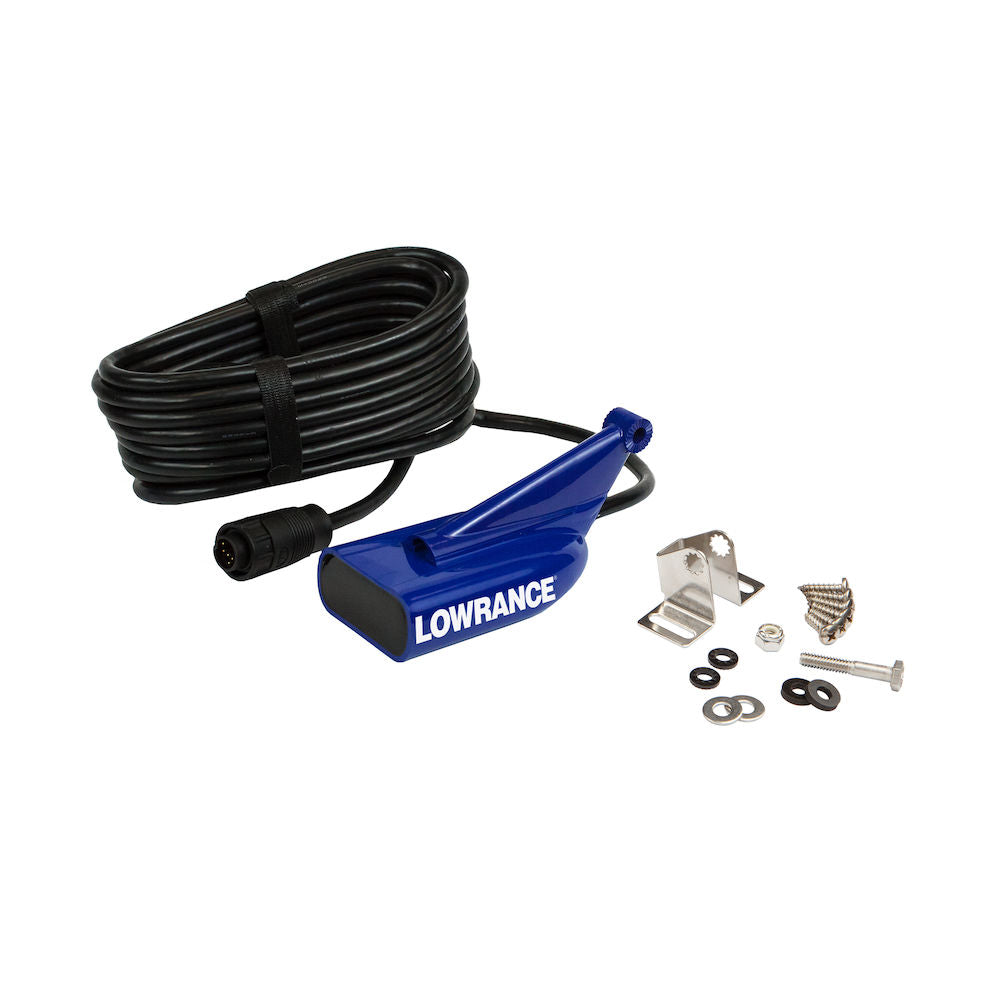

Lowrance HDI Skimmer transom-mount transducer (2 m cable, 9-pin xSonic)
Transom mounting bracket and hardware
Installation instructions

No exploded diagram available for this product.

No compatible transducers listed for this product.

xSonic Pigtail Transducer Wiring Block Adapter

Lowrance 9 Pin black XDCR to 7 pin blue adapter

Lowrance Hook Reveal-5 83-200 HDI Chartplotter Fishfinder

Lowrance Hook Reveal-7 50-200 HDI Chartplotter Fishfinder

Lowrance Hook Reveal-7 83-200 HDI Chartplotter Fishfinder

Lowrance Hook Reveal-9 50-200 HDI Chartplotter Fishfinder

Lowrance Elite FS 7 No Transducer

Lowrance Elite FS 9 No Transducer

Lowrance HDS-7 Live No Transducer

Lowrance HDS-9 Live No Transducer

Lowrance HDS-12 Live No Transducer

Lowrance HDS-16 Live No Transducer

Lowrance HDS PRO 9. No Transducer

Lowrance HDS PRO 10. No transducer

Lowrance HDS PRO 16. No Transducer

Sonar

Sonar Types	Hybrid Dual Imaging (HDI): broadband 2D sounder + DownScan Imaging
Operating Frequency	83 / 200 kHz (2D) + 455 / 800 kHz (DownScan)
Maximum Depth (2D)	Up to 305 m (1,000 ft)
Maximum Depth (DownScan)	Up to 107 m (350 ft)
Functions	Depth (no temperature sensor on this variant)

Physical

Mount Type	Transom mount
Cable Length	2 m (6 ft)
Housing	Lowrance-branded blue

Connectivity

Connector

9-pin (black xSonic)

No videos available for this product.

No downloads available for this product.

What sonar does this HDI Skimmer provide?

It combines a broadband 2D sounder with DownScan Imaging, running 83/200 kHz for sounding and 455/800 kHz for DownScan.

Does this version have a temperature sensor?

No, this variant (000-14267-001) is supplied without a temperature sensor. For built-in temperature, choose 000-13889-001.

How deep will it read?

2D soundings reach around 305 m (1,000 ft) and DownScan reaches around 107 m (350 ft).

What connector does it use?

It has a 2 m (6 ft) cable with a 9-pin black xSonic connector.
