Lowrance
Lowrance Elite FS 9 No Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

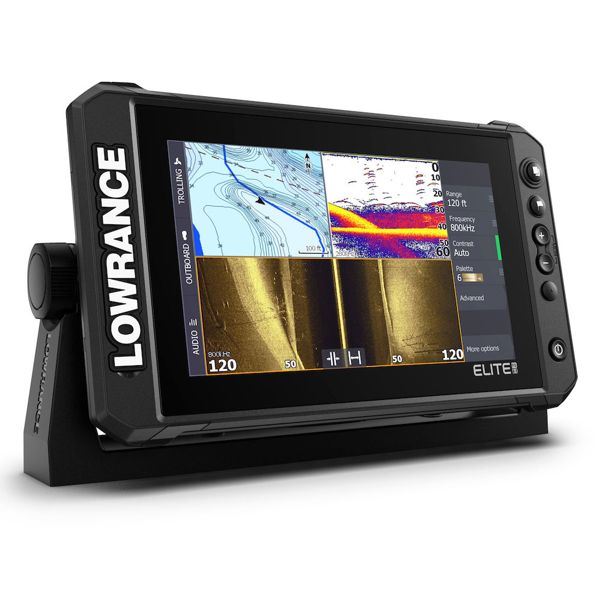

The Lowrance Elite FS 9 is a 9-inch fishing system that gives you access to the full line-up of Lowrance fishfinding tools on a larger, easy-to-read display. Its high-resolution SolarMAX multi-touch screen stays bright and clear in direct sunlight and through polarised glasses, so your sonar and charts remain easy to follow in any conditions.
\nThis display-only version has a 9-pin sonar port ready for the transducer of your choice, from Active Imaging 3-in-1 for CHIRP, SideScan and DownScan Imaging to the ActiveTarget Live Sonar module for real-time views of fish movement. The Elite FS networks over Ethernet, NMEA 2000 and Wi-Fi, drives Lowrance HALO radar domes directly, and gives full touchscreen control of compatible Ghost trolling motors and Power-Pole anchors.
\nBuilt-in 10 Hz GPS and preloaded C-MAP charts make it easy to navigate and return to productive water, with C-MAP Genesis Live real-time mapping and upgrade paths to C-MAP, Navionics and more.
PRODUCT DETAILS
- High-resolution 9-inch multi-touch SolarMAX display, sunlight readable at over 1200 nits
- Display-only version with a 9-pin sonar port, ready for the transducer of your choice
- FishReveal combines CHIRP sonar and DownScan Imaging on one screen to make fish easier to spot
- Compatible with ActiveTarget Live Sonar and Active Imaging via add-on transducers and modules
- Built-in 10 Hz GPS with preloaded C-MAP charts for precise navigation and waypoint marking
- Full networking with Ethernet, NMEA 2000 and Wi-Fi to share sonar, charts and data between displays
- Drives Lowrance HALO radar domes directly and integrates with NMEA 2000 instruments
- Elite FS 9 display unit
- Plastic gimbal bracket kit
- Sun cover
- Power cable kit
- Documentation pack
- (No transducer supplied)
No exploded diagram available for this product.
No compatible transducers listed for this product.
Lowrance Point-1 GPS Glonass With Electronic Compass
Lowrance, Branded XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer
Lowrance HDI Skimmer® Transom Mount transducer with Temperature
Lowrance Bullet Skimmer Transducer
Lowrance SplitShot Skimmer Transducer
Lowrance TripleShot Skimmer Transducer
Lowrance HDI Skimmer® Transom Mount transducer
Image coming soonLowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance Halo 24 Radar
Lowrance Halo20+ Pulse Compression Radar
Lowrance Halo20 Pulse Compression Radar
Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Lowrance Active Target Live Sonar, Transducer Module and Cables
Lowrance NAC-1 Outboard Hydraulic Pilot Pack
Lowrance ActiveTarget 2 (Module + Transducer + Mounts)
Display
| Screen size | 9 in |
| Resolution | 800 x 480 |
| Brightness | > 1200 nits |
| Touch screen | Multi-touch |
| Viewing angles | 50 deg top, 60 deg bottom, 70 deg left/right |
Sonar
| Sonar port | 1 x 9-pin connector |
| Sonar support | CHIRP sonar, DownScan, SideScan, Active Imaging / Active Imaging 3-in-1, TotalScan, StructureScan, LiveSight (via PSI-1), ActiveTarget (via module) |
GPS
| Internal GPS | 10 Hz high-speed update |
| GPS augmentation | WAAS, MSAS, EGNOS, GLONASS |
Connectivity
| NMEA 2000 | 1 port (Micro-C connector) |
| Ethernet | 1 port (5-pin, 100Base-T) |
| Wi-Fi | Internal 802.11 b/g/n |
| Bluetooth | 4.0 with Bluetooth Classic support |
| Card reader | 1 x slot (microSD, SDXC) |
Electrical
| Supply voltage | 12 V DC (10.8 - 17 V DC min - max) |
| Fuse rating | 3 A |
| Power consumption (max) | 28 W (2 A at 13.8 V DC) |
Environment
| Operating temperature | -15 C to 55 C (5 F to 131 F) |
| Storage temperature | -20 C to 60 C (-4 F to 140 F) |
| Waterproof rating | IPx6 and IPx7 |
Physical
| Weight (display only) | 1.2 kg (2.7 lb) |
| Dimensions (W x H x D) | 289.0 x 170.5 x 91.9 mm (display, excl. bracket) |
| Compass safe distance | 0.5 m (1.6 ft) |
| Mounting | Gimbal bracket or flush/panel mount |
No videos available for this product.
