This product has been discontinued by Lowrance and is no longer available to buy.
Lowrance

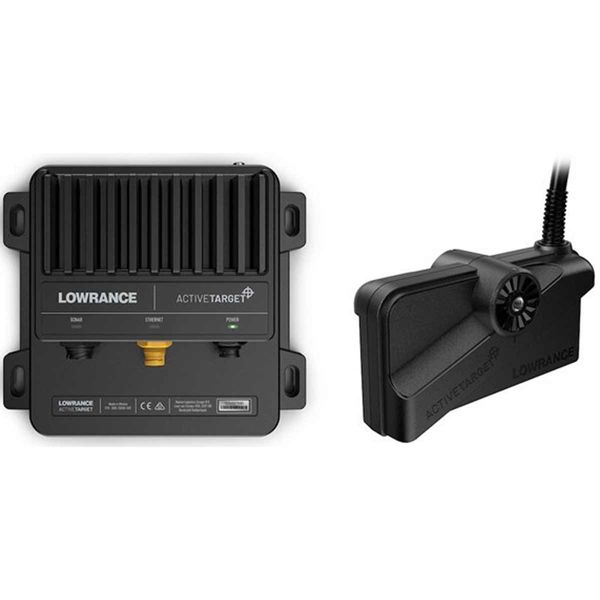

Lowrance Active Target Live Sonar, Transducer Module and Cables
Description
Lowrance ActiveTarget is a live sonar system that shows high-resolution, real-time images of fish as they move in and around cover. Watching how fish respond to your lure tells you immediately whether your presentation is working or needs adjusting, insight that traditional sonar and structure imaging simply cannot give.
A single transducer delivers Forward, Down and Scout views: track fish and your bait ahead of or below the boat, or switch to the ultra-wide overhead Scout view to locate bait balls and schools out in front. The system is supplied as a transducer, Ethernet sonar module and mounting hardware, and is compatible with Lowrance HDS LIVE, HDS Carbon and Elite FS chartplotters.
PRODUCT DETAILS
- Real-time live sonar showing fish movement and lure response
- Forward, Down and Scout views from a single transducer
- 500 to 1100 kHz operation with a 20° beam
- Down view to 24 m (80 ft); Forward view to 41 m (135 ft)
- Ethernet sonar module supplied with the transducer and mounts
- Compatible with HDS LIVE, HDS Carbon and Elite FS
- ActiveTarget sonar module
- ActiveTarget transducer
- Trolling-motor and shaft mounting hardware
- Ethernet cable and power cable
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
Lowrance HDS PRO 9. No Transducer
Lowrance HDS PRO 10. No transducer
Lowrance HDS PRO 16 with Active Imaging™ HD
Lowrance HDS PRO 16. No Transducer
Lowrance HDS-7 Live No Transducer
Lowrance HDS-7 Live 3-in-1 Transducer
Lowrance HDS-9 Live No Transducer
Lowrance HDS-9 Live 3-in-1 Transducer
Lowrance HDS-12 Live No Transducer
Lowrance HDS-12 Live 3-in-1 Transducer
Lowrance HDS-16 Live No Transducer
Lowrance HDS-16 Live 3-in-1 Transducer
Lowrance Elite FS 7 Active Imaging 3-in-1 Transducer
Lowrance Elite FS 7 No Transducer
Lowrance Elite FS 9 Active Imaging 3-in-1 Transducer
Lowrance Elite FS 9 No Transducer
Lowrance HDS-7 Carbon ROW with No Transducer
Sonar Capability
| Forward | Yes |
| Downscan | Yes |
| Traditional | Yes |
Sonar
| Sonar Type | ActiveTarget live sonar (real-time imaging) |
| Operating Frequency | 500 to 1100 kHz |
| Beamwidth | 20° |
| Views | Forward, Down and Scout |
| Range | Down view: up to 24 m (80 ft); Forward view: up to 41 m (135 ft) |
Connectivity
| Module Interface | Ethernet |
Physical
| Module Dimensions (W x H x D) | 219.3 x 72.9 x 192.1 mm (8.63 x 2.86 x 7.56 in) |
| Module Weight | 1.86 kg (4.12 lb) |
| Transducer Dimensions (W x H x D) | 149.8 x 58.0 x 82.4 mm (5.90 x 2.28 x 3.24 in) |
| Transducer Weight | 1.21 kg (2.67 lb) |
Compatibility
| Compatible Displays | HDS LIVE, HDS Carbon, Elite FS |
