Lowrance HDS PRO 16 with Active Imaging™ HD
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

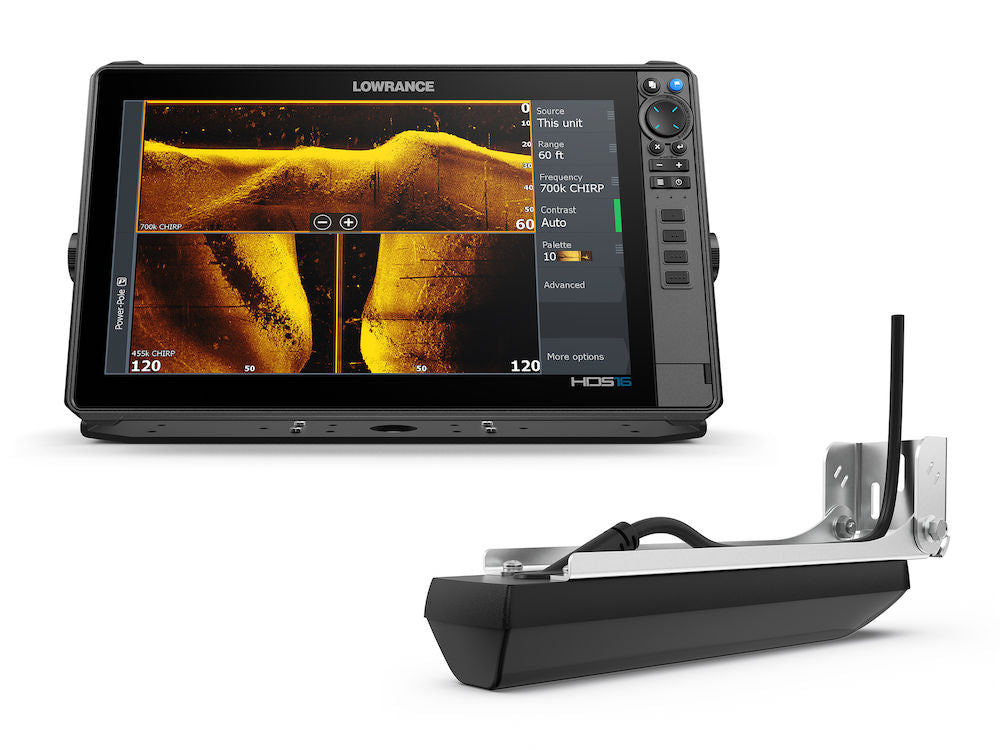

The HDS PRO 16 with Active Imaging HD is the flagship of Lowrance's HDS PRO range, built for anglers who want the largest and clearest possible view of the water beneath and around the boat. Its 16-inch SolarMAX HD touchscreen stays bright and readable in direct sunlight and through polarised glasses, while large programmable keys keep control easy when conditions turn rough.
This package is supplied with the Active Imaging HD transducer, giving high-definition CHIRP, SideScan and DownScan imaging from the moment it is installed, and remains ready for the higher-resolution ActiveTarget 2 Live Sonar system. It sits at the heart of a full Lowrance system, with bow-to-stern networking over Ethernet and NMEA 2000, built-in Wi-Fi and Bluetooth, and touchscreen control of compatible radar, autopilot, Ghost trolling motors and Power-Pole anchors.
Preloaded C-MAP charts and C-MAP Genesis Live real-time mapping help you find productive water and navigate back to it, with upgrade paths to C-MAP DISCOVER, C-MAP REVEAL and Navionics charts.
PRODUCT DETAILS
- 16-inch multi-touch SolarMAX HD display, 1920 x 1080 Full HD resolution and over 1200 nits brightness
- Supplied with the Active Imaging HD 3-in-1 transducer for ultra high-definition CHIRP, SideScan and DownScan imaging
- ActiveTarget 2 Live Sonar ready, with built-in CHIRP, DownScan and SideScan across two sonar channels (up to 1 kW)
- Preloaded with the latest C-MAP charts plus C-MAP Genesis Live real-time mapping
- Full networking from bow to stern over Ethernet and NMEA 2000, plus HDMI input, USB-A, internal Wi-Fi and Bluetooth 5.2
- IPX6 and IPX7 waterproof rating for reliable performance in the marine environment
- HDS PRO 16 display unit
- Active Imaging HD 3-in-1 transducer
- Gimbal bracket kit
- Sun cover
- Power cable kit
- Documentation pack
No exploded diagram available for this product.
Lowrance Halo20 Pulse Compression Radar
Lowrance Halo20+ Pulse Compression Radar
Lowrance Halo 24 Radar
Lowrance NAC-1 Outboard Hydraulic Pilot Pack
Lowrance Point-1 GPS Glonass With Electronic Compass
Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Image coming soonLowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance Active Target Live Sonar, Transducer Module and Cables
Lowrance ActiveTarget 2 (Module + Transducer + Mounts)
Lowrance HDI Skimmer® Transom Mount transducer
Lowrance HDI Skimmer® Transom Mount transducer with Temperature
Lowrance Bullet Skimmer Transducer
Lowrance SplitShot Skimmer Transducer
Lowrance TripleShot Skimmer Transducer
Lowrance, Branded XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer
Display
| Screen size | 16 in |
| Resolution | 1920 x 1080 |
| Brightness | >1200 nits |
| Touchscreen | Multi-touch |
| Viewing angles | 85 deg top/bottom, 85 deg left/right |
Sonar
| CHIRP sonar | Low, Medium and High CHIRP up to 1 kW |
| DownScan | 455 kHz, 800 kHz; CHIRP 700 kHz and 1200 kHz |
| SideScan | 455 kHz, 800 kHz; CHIRP 455 kHz and 1075 kHz |
| Sonar ports | 2 ports (9-pin connector) |
Electrical
| Supply voltage | 12 V DC (10.8 - 18 V DC) |
| Power consumption (max) | 57 W (4.1 A at 13.8 V DC) |
| Recommended fuse rating | 5 A |
Connectivity
| NMEA 2000 | 1 port (Micro-C connector) |
| NMEA 0183 | 1 port (via the power connector) |
| Ethernet | 100BASE-T, 2 ports (5-pin connector) |
| HDMI | 1 port for external input (HDMI 1.4 sink and HDCP) |
| USB | 1 port (USB-A), output 5 V DC 1 A |
| Analog video | 1 port (via the power cable, adapter cable sold separately) |
| Card reader | 2 slots (microSD SDXC) |
| Wi-Fi | Internal 802.11b/g/n |
| Bluetooth | Bluetooth 5.2 with support for Bluetooth classic |
Environment
| Operating temperature | -15 C to 55 C (5 F to 131 F) |
| Storage temperature | -30 C to 70 C (-22 F to 158 F) |
| Waterproof rating | IPX6 and IPX7 |
| Shock and vibration | 100,000 cycles of 20 G |
Physical
| Dimensions (W x H x D) | 430.5 x 259.2 x 74.8 mm |
| Weight (display only) | 3.60 kg (7.94 lb) |
| Compass safe distance | 65 cm (2.1 ft) |
| Mounting type | Panel mount or bracket mount |
