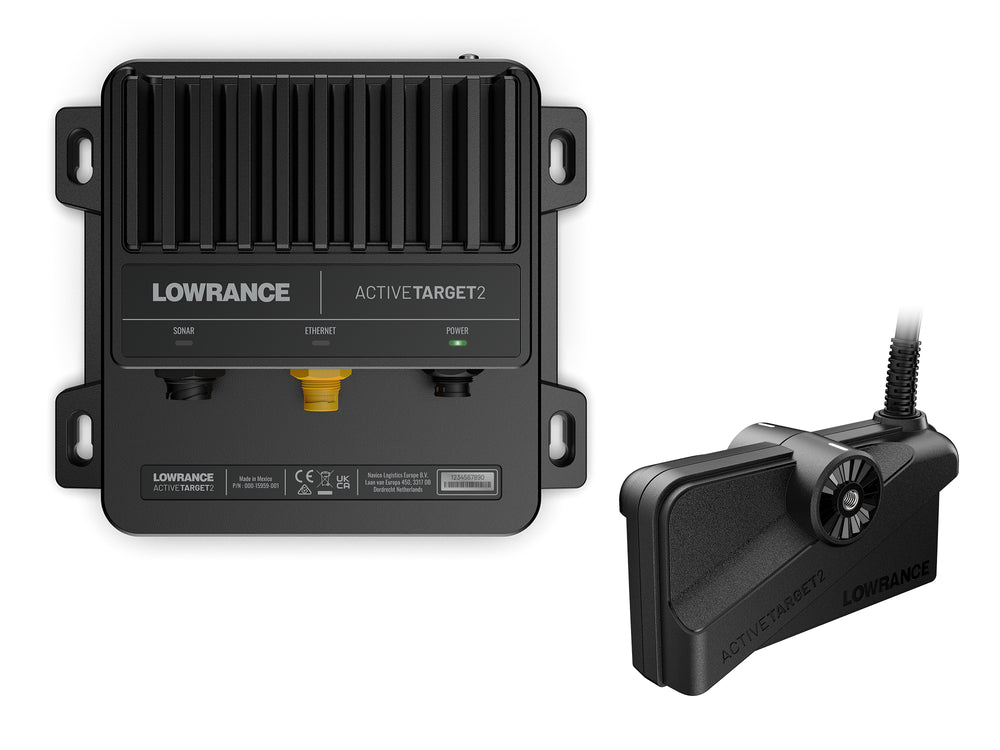

Lowrance ActiveTarget 2 (Module + Transducer + Mounts)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
Lowrance ActiveTarget 2 is the next generation of the brand's live sonar, delivering the highest-resolution, widest and clearest real-time views of fish and structure. Seeing fish react to your lure as it happens lets you make the quick adjustments that turn follows into strikes.
A single transducer provides Forward, Down and Scout views, with optimised image and stabilisation settings that keep the picture crisp and steady even in rough conditions. On HDS PRO a second ActiveTarget 2 system unlocks simultaneous views plus 180-degree and Scout Wide modes for tracking bait further ahead of the boat. Supplied as an IP67-rated Ethernet module, transducer and mounts, it is compatible with HDS PRO, HDS LIVE, HDS Carbon and Elite FS.
PRODUCT DETAILS
- Next-generation live sonar with the highest resolution and widest views
- Forward, Down and Scout views from a single transducer
- Optimised image and stabilisation settings for crisp views in rough conditions
- Dual ActiveTarget 2 systems on HDS PRO enable Scout Wide and 180° views
- 12/24 V DC Ethernet sonar module rated IP67
- Compatible with HDS PRO, HDS LIVE, HDS Carbon and Elite FS
- ActiveTarget 2 sonar module
- ActiveTarget 2 transducer (7.62 m cable)
- Trolling-motor shaft and motor mounting hardware
- Ethernet cable and power cable
- Module grounding screw and mounting screws
- Installation manual
No exploded diagram available for this product.
No compatible transducers listed for this product.
Lowrance HDS PRO 9. No Transducer
Lowrance HDS PRO 10. No transducer
Lowrance HDS PRO 16 with Active Imaging™ HD
Lowrance HDS PRO 16. No Transducer
Lowrance HDS-7 Live No Transducer
Lowrance HDS-7 Live 3-in-1 Transducer
Lowrance HDS-9 Live No Transducer
Lowrance HDS-9 Live 3-in-1 Transducer
Lowrance HDS-12 Live No Transducer
Lowrance HDS-12 Live 3-in-1 Transducer
Lowrance HDS-16 Live No Transducer
Lowrance HDS-16 Live 3-in-1 Transducer
Lowrance Elite FS 7 Active Imaging 3-in-1 Transducer
Lowrance Elite FS 7 No Transducer
Lowrance Elite FS 9 Active Imaging 3-in-1 Transducer
Lowrance Elite FS 9 No Transducer
Lowrance HDS-7 Carbon ROW with No Transducer
Sonar Capability
| Forward | Yes |
| Downscan | Yes |
| Traditional | Yes |
Sonar
| Sonar Type | ActiveTarget 2 next-generation live sonar |
| Views | Forward, Down and Scout (dual views and Scout Wide / 180° on HDS PRO with a second system) |
Connectivity
| Module Interface | Ethernet (synchronises a second system via the power cable blue wire) |
Electrical
| Power Supply | 12 / 24 V DC (operating 10.8 to 31.2 V DC) |
| Maximum Current Drain | 1.5 A at 13.8 V |
| Fuse Rating | 5 A |
Environment
| Module IP Rating | IP67 |
| Module Operating Temperature | -15°C to 55°C (5°F to 131°F) |
| Transducer Water Temperature for Operation | 0°C to 35°C (32°F to 95°F) |
Physical
| Sonar Module Weight | 1.86 kg (4.12 lb) |
| Sonar Module Dimensions (W x H x D) | 219.3 x 72.9 x 197.3 mm (8.63 x 2.86 x 7.76 in) |
| Transducer Weight | 1.21 kg (2.67 lb) |
| Transducer Dimensions (W x H x D) | 149.8 x 58.0 x 82.4 mm (5.90 x 2.28 x 3.24 in) |
| Transducer Cable Length | 7.62 m (25 ft) |
| Mounting Options | Trolling-motor shaft, trolling-motor lower unit, transom (sold separately), Scout Wide (sold separately) |
Compatibility
| Compatible Displays | HDS PRO, HDS LIVE, HDS Carbon, Elite FS (dual views on HDS PRO) |
