This product has been discontinued by Lowrance and is no longer available to buy.
Lowrance

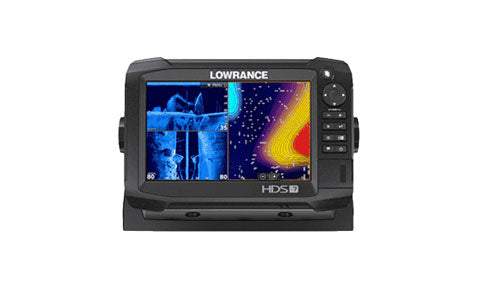

Lowrance HDS-7 Carbon ROW with No Transducer
Description
The Lowrance HDS-7 Carbon was a premium 7-inch multi-touch fishfinder and chartplotter, built around an ultra-clear SolarMAX HD IPS display and a fast dual-core processor. It combined dual-channel CHIRP sonar, Broadband Sounder and StructureScan HD imaging with a 10 Hz internal GPS and integrated wireless connectivity. It was supplied as a display-only unit (no transducer).
The HDS Carbon range has since been succeeded by the current Lowrance HDS LIVE and HDS PRO series, which carry over the same networking and transducer ecosystem. We continue to support installed HDS Carbon units with compatible transducers, covers and mounting spares.
PRODUCT DETAILS
- SolarMAX HD 7" multi-touch IPS display, >1200 nits brightness
- High-performance dual-core processor with touch and keypad control
- Built-in CHIRP and Broadband Sounder for clear target separation
- StructureScan HD (and TotalScan/ForwardScan support) for detailed imaging
- Internal 10 Hz GPS/GLONASS with integrated wireless and Bluetooth
- Dual microSD slots, Ethernet and NMEA 2000 networking
No exploded diagram available for this product.
B&G, Lowrance, Simrad TotalScan Skimmer Transducer
B&G, Lowrance, Simrad TotalScan Thru Hull Transducer Medium High CHIRP
B&G, Lowrance, Simrad TotalScan Thru Hull Transducer with Low and High CHIRP
Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance Active Target Live Sonar, Transducer Module and Cables
Lowrance Airmar TM150M Transom-Mount Transducer
Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer
Lowrance HST - DFSBL 50/200kHz transom-mount skimmer depth/temp
Lowrance HST - WSBL 83/200kHz transom-mount skimmer depth/temp
Lowrance PTI-WBL - Ice transducer with Blue connector
Lowrance, Simrad - HDI Bronze Thru Hull Transducer Blue Plug 0 deg Tilt
Lowrance, Simrad - HDI Bronze Thru Hull Transducer Blue Plug 20 deg Tilt
Lowrance, Simrad Airmar B150M Thru-Hull Transducer 12-degree
Lowrance, Simrad Airmar B150M Thru-Hull Transducer 20-degree
Lowrance, Simrad Airmar B75H 12 Degree Tilt Bronze Thru Hull Chirp 10m Cable
Lowrance, Simrad Airmar B75M 12 Degree Tilt Thru Hull Chirp 10m Cable
Lowrance, Simrad Blue Plug Skimmer HDI 50-200, 455-800 kHz Transom Mount
Lowrance, Simrad Blue Plug Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer
Lowrance, Simrad LSS-2 - StructureScan HD Skimmer transducer
Lowrance, Simrad Plastic StructureScan HD thru-hull transducer
Lowrance, Simrad Stainless Steel StructureScan HD Pair off thru-hull transducers
Lowrance, Simrad Stainless Steel StructureScan HD Sonar thru-hull transducer.
Navico Airmar B75H 0 Degree Tilt Bronze Thru Hull Chirp 10m Cable
Navico Airmar B75H 20 Degree Tilt Bronze Thru Hull Chirp 10m Cable
9PIN HIGH SPEED SKIMMER L/H PK ASY
9PIN HIGH SPEED SKIMMER M/H PK ASY
ActiveImaging HD™ 2-in-1 Transducer
ActiveImaging HD™ 3-in-1 FishReveal High/Wide Transducer
ActiveImaging HD™ 3-in-1 FishReveal Transducer
ActiveImaging HD™ 3-in-1 Transducer
ActiveTarget® 2 XL
B&G, Lowrance, Simrad XSonic Airmar B258 Bronze 50-200 khz Through Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar B45 Bronze 50-200 khz Through Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar M260 50-200 kHz In Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar P319 600W 50-200 kHz Plastic Through Hull
B&G, Lowrance, Simrad XSonic Airmar P66 Plastic 50-200 khz Transom mount transducer
B&G, Lowrance, Simrad XSonic Airmar P79 Plastic 50-200 kHz In Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 kHz Through Hull 0 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 12 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 20 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS260 1 kW 50-200 khz Through Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 0 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 12 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 20 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar TM260 Plastic 50-200 khz Transom mount transducer
Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance HDI Skimmer® Transom Mount transducer
Lowrance HDI Skimmer® Transom Mount transducer with Temperature
Lowrance, Branded XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer
Lowrance Active Target Live Sonar, Transducer Module and Cables
Lowrance ActiveTarget 2 (Module + Transducer + Mounts)
Lowrance HST - WSBL 83/200kHz transom-mount skimmer depth/temp
Lowrance Airmar TM150M Transom-Mount Transducer
Lowrance B175M (20°) - Bronze 1kW Medium-CHIRP Through Hull Depth/Temperature Transducer.
Lowrance Point-1 GPS Glonass With Electronic Compass
Lowrance Remote Controller LR-1 (HDS LIVE, HDS Carbon)
Display
| Screen size | 7" (diagonal) |
| Resolution | 1024 x 600 px |
| Type | SolarMAX HD IPS, multi-touch P-CAP |
| Brightness | >1200 nits |
Sonar
| Sonar | CHIRP (high/medium/low) + Broadband 50/83/200 kHz + StructureScan 455/800 kHz |
| Sonar output power | 500 W RMS |
Navigation
| GPS | Internal 10 Hz, GPS + GLONASS, WAAS/MSAS/EGNOS |
Connectivity
| NMEA 2000 | Micro-C (1) |
| NMEA 0183 | Input/output, up to 38400 baud |
| Wireless | Internal Wi-Fi 802.11 b/g/n + Bluetooth |
| Card slots | 2x microSD |
Electrical
| Supply voltage | 12 V DC (10.8 - 17.0 V DC) |
| Power consumption (max) | 24 W (2.3 A @ 13.8 V DC) |
| Recommended fuse | 5 A |
Environment
| Operating temperature | -15 C to +55 C |
| Waterproof rating | IPX6 and IPX7 |
Physical
| Weight (display only) | 1.13 kg |
General
| Warranty | 2 years |
