Simrad

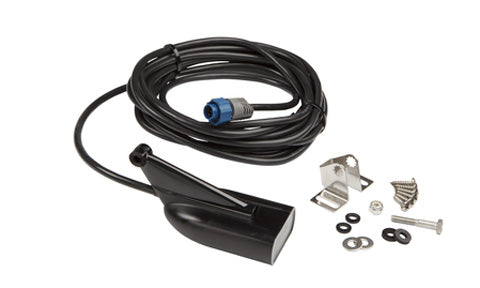

Lowrance, Simrad Blue Plug Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
This Lowrance and Simrad Hybrid Dual Imaging (HDI) transom-mount skimmer is a simple, no-drilling route to dual sonar performance. Traditional 83 and 200 kHz 2D sonar provides reliable target detection and fish marking with a wider 83 kHz cone for shallow and coastal water, while 455 and 800 kHz DownScan Imaging overlays photo-like detail of structure and bottom contours, with DownScan detail to around 300 ft (91 m). A built-in temperature sensor is included.
The plastic skimmer body mounts on the transom and is ideal for trailer boats and smaller craft. It terminates in a blue 7-pin connector on a 6 m cable that plugs directly into a compatible echosounder; current 9-pin XSonic Simrad and Lowrance displays connect using the 000-13313-001 adapter cable.
PRODUCT DETAILS
- Hybrid Dual Imaging: 83/200 kHz 2D plus 455/800 kHz DownScan
- Wide 83 kHz cone for shallow and coastal water
- DownScan Imaging detail to around 300 ft (91 m)
- Easy-fit plastic transom-mount skimmer
- Built-in temperature sensor
- Blue 7-pin connector on a 6 m cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
Lowrance HDS-7 Carbon ROW with No Transducer
Lowrance HDS-7 Gen3 Multi -Touch Fishfinder Chartplotter no Transducer
Lowrance, Simrad, B&G SonarHub Sounder Module
Simrad NSS7 evo2 Combo 7-inch Multi-function Display
B&G Zeus S-12 Ultrawide 12 Inch Display
B&G Zeus SR - 10" Chartplotter
B&G Zeus3S 9 MFD
Lowrance Elite FS 7 No Transducer
Lowrance Elite-7 Ti2 No Transducer
Lowrance Elite-9 Ti Fishfinder Chartplotter TotalScan N Europe C-Map
Lowrance HDS PRO 9. No Transducer
Lowrance HDS-7 Live No Transducer
Image coming soonLowrance Hook2 SplitShot Inline temperature sensor
S3100 Sonar Module
Simrad Cruise 5 ROW 83/200 Transducer
Simrad NSS 4 - 10" Chartplotter and Fishfinder
Simrad NSS9 EVO3S 9 Inch MFD
Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer
Simrad S2009 Dedicated 9-inch portrait display Fish Finder
Sonar
| Type | Hybrid Dual Imaging transom-mount skimmer |
| Imaging | Traditional 2D plus DownScan Imaging |
| Temperature | Built-in temperature sensor |
Frequencies
| Traditional sonar | 83 kHz and 200 kHz |
| DownScan Imaging | 455 kHz and 800 kHz |
Power
| Max depth DownScan | 91 m (300 ft) at 455 kHz |
Connector
| Connector | Blue 7-pin |
Cable
| Cable length | 6 m (20 ft) |
Physical
| Mounting | Transom mount |
| Housing | Plastic skimmer |
No videos available for this product.
No downloads available for this product.
