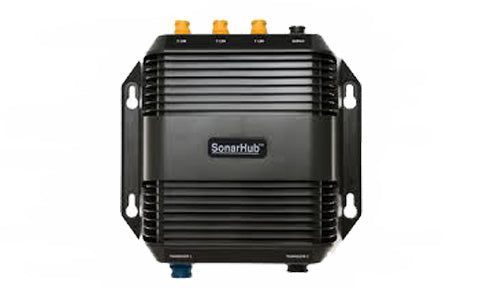

Lowrance, Simrad, B&G SonarHub Sounder Module
Manufacturer Part Number:
000-11142-001
Manufacturer Part Number:
000-11142-001
SonarHub Module, with power cable and Ethernet cable 4.5m (15ft) The compact SonarHub™ module provides an all-in-one solution for adding StructureScan® HD and CHIRP sonar capabilities to B&G, Simrad and Lowrance multifunction displays.
Home or Marina Delivery
Pick up at Hamble
More Information
Navico Sonar module Navigation
| Transmit Power | Max 500W RMS (StructureScan® HD), 250W RMS (CHIRP) |
| Trandsucer Frequencies | 455/800 kHz (StructureScan® HD), 40-60kHz, 85-145kHz, 130-210kHz (CHIRP), 50 kHz/83kHz/200kHz (Narrow Band) |
| Sonar | |
| 300 feet per side | |
| Transducer Type | Multiple selections Lowrance and AIRMAR® |
| Technical/Environmental | |
| Operating Temperature | -20° to 167° F (-28° to 75° C) |
| Waterproof Standard/rating | IPx7 |
| Product Width | 7.1 in \ 180 mm |
| Product Height | 2.2 in \ 57 mm |
| Product Weight | 2 lbs \ 0.9 kg |
| Power | |
| Power Supply (Supply Voltage) | 12 or 24 vDC (9-32 vDC min-max) |
| Networking Connectors | |
| Connectors | Ethernet: Three ports Power: 4-pin power connector Transducer Port 1: Blue 7-pin connector for CHIRP and narrow-band transducers Transducer Port 2: Black 9-pin connector for use with StructureScan® HD and SpotlightScan™ transducers |
| Other | |
| Other Features | Max Depth Per Optional Transducer Type StructureScan: Max 300 ft / 91 m @ 455/800 KHz CHIRP: 3,500 ft / 1067 m (transducer dependent) Warranty: Limited two-year warranty |
Parts included
-
1 x SonarHub module
-
4 x SonarHub installation screws
-
1 x Ethernet cable, 4 m (15 ft)
-
1 x Power cable, 2 m (6.6 ft)
-
1 x Fuse and Fuse holder
