B&G, Lowrance, Simrad XSonic Airmar SS260 1 kW 50-200 khz Through Hull Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

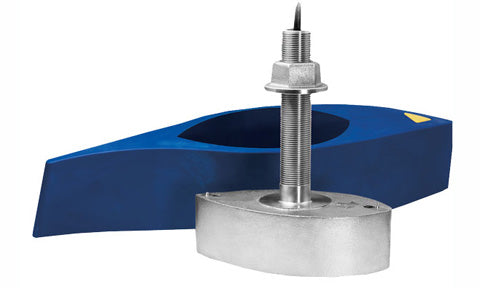

B&G, Lowrance and Simrad XSonic Airmar SS260 stainless-steel 50-200 kHz 1Kw through hull transducer 10 merter cable with 9 pin connector. The SS260 is our best performing, stainless-steel, thru-hull stem for 1 kW echosounders. Its construction utilizes separate 50 kHz and 200 kHz elements for unparalleled deep-water performance and unmatched bottom and water-column detail. The SS260’s narrow beam gives crisp image detail especially suited for fishing shelves, intricate bottom structures, and wrecks.
PRODUCT DETAILS
- Top-of-the-line 1 kW dual-frequency 50/200 kHz stainless-steel through-hull transducer
- Narrow 6° 200 kHz beam for crisp bottom detail; seven-element 19° 50 kHz array for deep water
- Best-performing thru-hull stem for 1 kW echosounders
- Built-in depth and fast-response water-temperature sensing
- Supplied with a high-performance fairing block for clear images at speed
- 10 m cable with 9-pin connector for B&G, Lowrance and Simrad displays
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
B&G Zeus S-12 Ultrawide 12 Inch Display
B&G Zeus3S 9 MFD
Lowrance Elite FS 7 No Transducer
Lowrance Elite-7 Ti2 No Transducer
Lowrance Elite-9 Ti Fishfinder Chartplotter TotalScan N Europe C-Map
Lowrance HDS PRO 9. No Transducer
Lowrance HDS-7 Live No Transducer
S3100 Sonar Module
Simrad NSS 4 - 10" Chartplotter and Fishfinder
Simrad NSS9 EVO3S 9 Inch MFD
Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer
Simrad S5100 high-performance CHIRP sonar module
B&G Zeus SR - 10" Chartplotter
Lowrance HDS-7 Carbon ROW with No Transducer
Lowrance HDS-7 Gen3 Multi -Touch Fishfinder Chartplotter no Transducer
Lowrance, Simrad, B&G SonarHub Sounder Module
Simrad NSS7 evo2 Combo 7-inch Multi-function Display
Simrad S2009 Dedicated 9-inch portrait display Fish Finder
Sonar
| Frequency | 50 / 200 kHz (dual frequency) |
| RMS Power | 1 kW |
| Beamwidth (50 kHz) | 19° |
| Beamwidth (200 kHz) | 6° |
| Maximum Depth | Up to 800 m (2625 ft) at 50 kHz |
| Element Configuration | Seven-element 50 kHz array and single 200 kHz element |
Sensor
| Functions | Depth and water temperature |
Installation
| Housing Material | Stainless steel |
| Maximum Hull Deadrise | Up to 20° with fairing |
| Acoustic Window | Urethane |
| Connector | 9-pin |
| Cable Length | 10 m (33 ft) |
Physical
| Weight | 7.3 kg (16 lb) |
Application
| Recommended Boat Size | Sportfishing boats above 9 m (30 ft) |
Sonar Capability
| Traditional | Yes |
