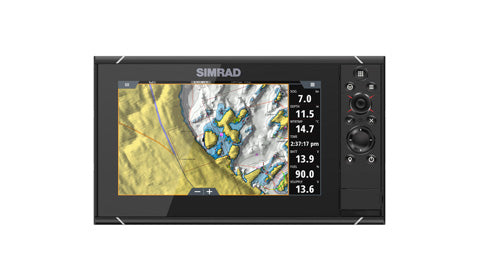

Simrad NSS9 EVO3S 9 Inch MFD
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The NSS9 evo3S is the 9-inch model in Simrad's premium hybrid-touch multifunction range, built around the iMX 8 processor for fast, fluid operation under all conditions. Its SolarMAX HD IPS display stays clear in bright sunlight and through polarised sunglasses, and the all-weather touchscreen pairs with a keypad and rotary dial for precise control when the going gets rough.
A built-in 1 kW CHIRP echosounder and two XSonic transducer ports support conventional 50/200 kHz, HDI, TotalScan and ForwardScan sonar, so a single display can cover bottom tracking, fish finding and forward-looking views ahead of the boat. The internal GNSS receiver, Wi-Fi and NMEA 2000 networking let the unit run standalone or as part of a larger glass-bridge system.
Connect HALO radar, additional sonar modules such as the S5100 or StructureScan 3D, and a Simrad autopilot to build a fully integrated helm. The display can also be mirrored to a phone or tablet through the Simrad app for charts, sonar and engine data from anywhere on board.
PRODUCT DETAILS
- SolarMAX HD IPS optically bonded display with 1200 nits brightness and ultra-wide 80-degree viewing angles
- Fast iMX 8 processor for smooth screen transitions and rapid redraw
- Hybrid control: all-weather multi-touch screen plus rotary dial and keypad
- Built-in 10 Hz GNSS receiver (GPS and GLONASS, SBAS) for accurate positioning
- Built-in 1 kW CHIRP echosounder with two 9-pin XSonic sonar ports
- Built-in Wi-Fi and Bluetooth, plus NMEA 2000 and Ethernet networking
- Supports HALO dome and open array radar, autopilot, AIS and digital switching
- C-MAP and Navionics cartography support with preloaded world base map
- NSS9 evo3S display unit
- Sun cover
- Bezel trim
- Power cable
- U-bracket and bracket knobs
- Mounting hardware and self-adhesive foam gasket
- Connector dust caps
- Documentation pack
No exploded diagram available for this product.
9PIN HIGH SPEED SKIMMER L/H PK ASY
9PIN HIGH SPEED SKIMMER M/H PK ASY
B&G, Lowrance, Simrad TotalScan Skimmer Transducer
B&G, Lowrance, Simrad TotalScan Thru Hull Transducer Medium High CHIRP
B&G, Lowrance, Simrad TotalScan Thru Hull Transducer with Low and High CHIRP
B&G, Lowrance, Simrad XSonic Airmar B258 Bronze 50-200 khz Through Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar B45 Bronze 50-200 khz Through Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar M260 50-200 kHz In Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar P319 600W 50-200 kHz Plastic Through Hull
B&G, Lowrance, Simrad XSonic Airmar P66 Plastic 50-200 khz Transom mount transducer
B&G, Lowrance, Simrad XSonic Airmar P79 Plastic 50-200 kHz In Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 kHz Through Hull 0 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 12 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 20 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS260 1 kW 50-200 khz Through Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 0 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 12 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 20 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar TM260 Plastic 50-200 khz Transom mount transducer
B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 0 degree tilt
B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 12 degree tilt
B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 20 degree tilt
B&G, Lowrance, Simrad XSonic Skimmer HDI 50-200, 455-800 kHz Transom Mount
B&G, Lowrance, Simrad XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount
B&G, Simrad ForwardScan Long Stem Transducer
B&G, Simrad ForwardScan transducer kit with Sleeve and plug
Image coming soonLowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance Active Target Live Sonar, Transducer Module and Cables
Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer
Lowrance, Simrad LSS-2 - StructureScan HD Skimmer transducer
Lowrance, Simrad Plastic StructureScan HD thru-hull transducer
Lowrance, Simrad Stainless Steel StructureScan HD Pair off thru-hull transducers
Lowrance, Simrad Stainless Steel StructureScan HD Sonar thru-hull transducer.
Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 0 Degree Tilt
No spares or accessories listed for this product.
12kW X-Band SRT LAN Pedestal (R5000)
B&G Halo20 Pulse Compression Radar
Image coming soonB&G Halo20+ Pulse Compression Radar
B&G, Simrad NAC-2 Autopilot Computer
B&G, Simrad NAC-3 Autopilot Computer
Lowrance Halo 24 Radar
Lowrance, Simrad NAC-1 Autopilot Computer
Simrad R3016 Halo 6 Radar Kit
Image coming soonAC70 PCB
Image coming soonAD80 Analog Drive PCB
Image coming soonGhost lift assist kit 47"
Recon™ Saltwater 54" Trolling Motor
Image coming soonSG05 Pro Autopilot Computer
Display
| Screen size | 9 inch |
| Resolution | 1280 x 720 px |
| Display type | High Visibility SolarMAX HD IPS optically bonded TFT |
| Brightness | 1200 nits |
| Touchscreen | Full multi-touch screen |
| Viewing angles | 80 degrees top/bottom, 80 degrees left/right (typical at contrast ratio 10) |
Electrical
| Supply voltage | 12/24 V DC (10 to 31.2 V DC min-max) |
| Maximum power consumption | 23 W (plus/minus 4 W) |
| Fuse rating | 5 A |
Environment
| Operating temperature range | -15 C to +55 C |
| Storage temperature range | -20 C to +60 C |
| Waterproof rating | IPX6 and IPX7 |
| Shock and vibration | 100,000 cycles of 20 G |
| Humidity | IEC 60945 damp heat 66 C at 95% relative (48 hr) |
Connectivity
| GNSS receiver | Built-in 10 Hz GNSS receiver for GPS and GLONASS, supports Galileo, Beidou, QZSS; SBAS (WAAS, EGNOS, MSAS, GAGAN) |
| Ethernet | 1 port (5-pin) |
| NMEA 2000 | 1 port (Micro-C), 1 LEN |
| NMEA 0183 | 1 talker/listener via optional adaptor cable |
| Wi-Fi | Internal 802.11 b/g/n |
| Bluetooth | Internal Bluetooth 4.0 (Classic) |
| Video input | 2 ports composite video (RCA) via optional adaptor cable |
| Data card slots | 2 slots (microSD) |
Sonar
| Echosounder | Built-in 1 kW CHIRP, two 9-pin XSonic sonar ports (50/200 kHz, HDI, TotalScan, ForwardScan) |
Physical
| Dimensions (W x H x D) | 287 x 166 x 90 mm (display, including connector boss) |
| Weight (display only) | 1.41 kg |
| Compass safe distance | 50 cm |
| Mounting type | Supplied bracket or panel mount |
Approvals
| Warranty | 2 years |
| Compliance | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 |
