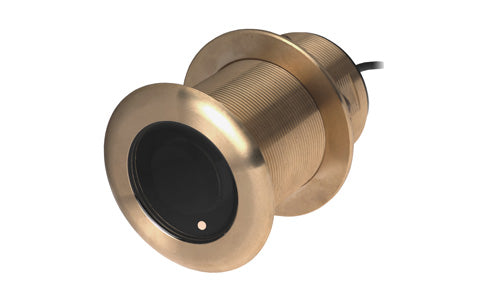

Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 20 Degree Tilt
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Airmar B150M is a compact 300 W Medium CHIRP thru-hull transducer that pairs a wide search beam with broadband target detail. Its single ceramic element sweeps 95 to 155 kHz, giving good fish separation and bottom definition for inshore and coastal fishing to a maximum of around 600 ft (183 m). The wide 26 to 17 degree beam covers plenty of water, making it a popular choice for trailerable and mid-size boats.
The bronze housing suits fibreglass and wood hulls, and this 20 degree version is matched to hulls with 16 to 24 degrees of deadrise so the element fires vertically. A built-in depth and water-temperature sensor is included. The transducer terminates in a Navico XSonic black 9-pin connector on a 10 m cable for a direct connection to compatible 9-pin Simrad and Lowrance displays; legacy 7-pin XSonic displays connect using the 000-13977-001 adapter cable.
PRODUCT DETAILS
- Medium CHIRP 95 to 155 kHz for inshore and coastal fishing
- 300 W peak power with a wide 26 to 17 degree beam
- Bottom tracking to around 600 ft (183 m)
- Low-profile bronze thru-hull housing for fibreglass and wood hulls
- 20 degree element for hulls with 16 to 24 degrees deadrise
- Built-in depth and temperature sensor
- Navico XSonic 9-pin connector on a 10 m cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
B&G Zeus S-12 Ultrawide 12 Inch Display
B&G Zeus3S 9 MFD
Lowrance Elite FS 7 No Transducer
Lowrance Elite-7 Ti2 No Transducer
Lowrance Elite-9 Ti Fishfinder Chartplotter TotalScan N Europe C-Map
Lowrance HDS PRO 9. No Transducer
Lowrance HDS-7 Live No Transducer
S3100 Sonar Module
Simrad NSS 4 - 10" Chartplotter and Fishfinder
Simrad NSS9 EVO3S 9 Inch MFD
Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer
Simrad S5100 high-performance CHIRP sonar module
B&G Zeus SR - 10" Chartplotter
Lowrance HDS-7 Carbon ROW with No Transducer
Lowrance HDS-7 Gen3 Multi -Touch Fishfinder Chartplotter no Transducer
Lowrance, Simrad, B&G SonarHub Sounder Module
Simrad NSS7 evo2 Combo 7-inch Multi-function Display
Simrad S2009 Dedicated 9-inch portrait display Fish Finder
Sonar
| Type | Single-element Medium CHIRP thru-hull |
| Depth & temperature | Yes |
Frequencies
| CHIRP band | Medium CHIRP, 95 kHz to 155 kHz |
Beam
| Beamwidth | 26 to 17 degrees |
Power
| Peak power | 300 W |
| Maximum depth | 183 m (600 ft) |
Connector
| Connector | Navico XSonic black 9-pin |
Cable
| Cable length | 10 m (33 ft) |
Physical
| Housing | Bronze thru-hull |
| Element tilt | 20 degrees |
| Hull deadrise | 16 to 24 degrees |
| Hull material | Fibreglass or wood |
| Weight | 1.4 kg (3 lb) |
