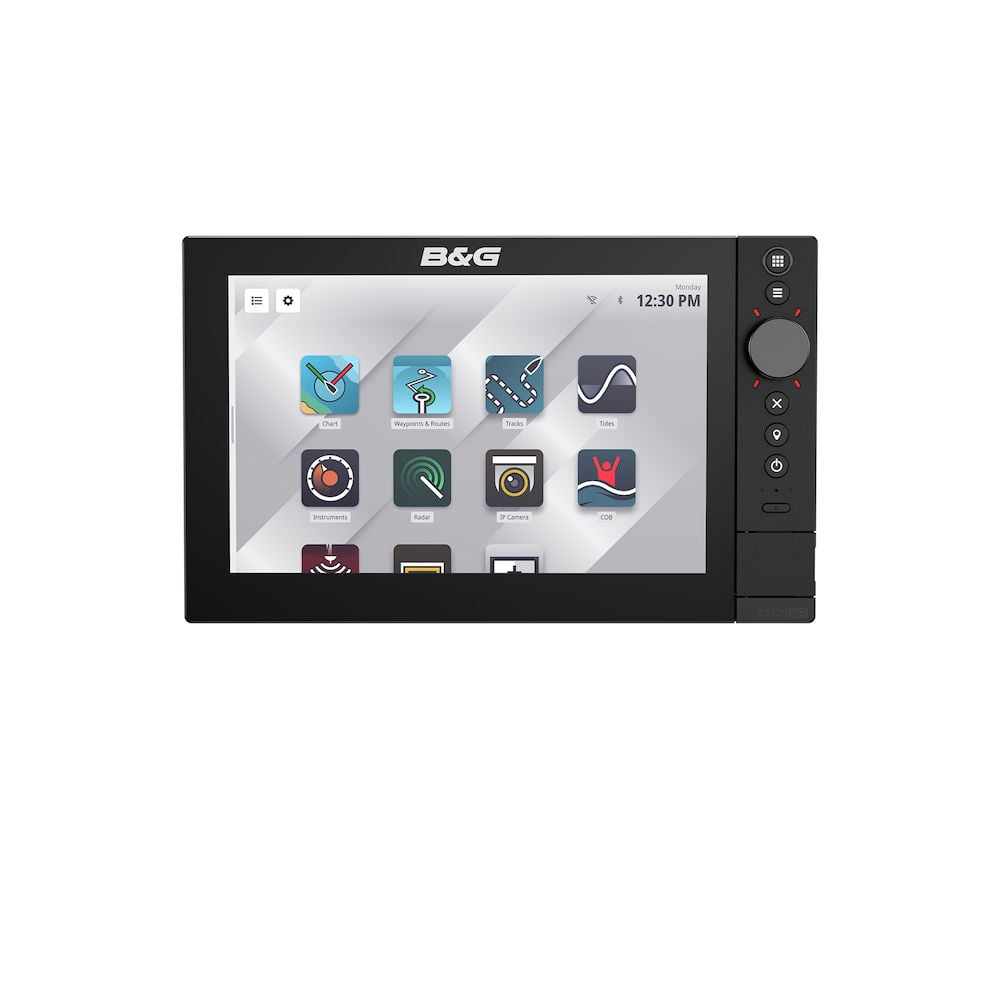

B&G Zeus SR - 10" Chartplotter B&G Zeus SR - 10" Chartplotter
B&G Zeus SR - 10" Chartplotter

B&G

B&G Zeus SR - 10" Chartplotter

£2,740.00
Tax included. Shipping calculated at checkout.
000-16022-001
The B&G Zeus SR 10 inch is a powerful sailing chartplotter driven by B&G's 8-core processor, with award-winning features like SailSteer and LayLines and tailored cruising, racing and anchoring screens. It runs C-MAP and Navionics charts and integrates with HALO radar, autopilots and instruments over Wi-Fi, Gigabit Ethernet and NMEA 2000.
✓ Available for collection or delivery in ~1 day

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Navico Extended Warranty

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

Extended cover is added to your order and confirmed with your warranty documentation.

Description

Elevate your instincts with the Zeus® SR chartplotter. Our most powerful 8-core processor delivers a smoother, faster sailing experience. A redesigned interface makes it easier to find the tools you need, with tailored screens for cruising, racing, and anchoring. And a whole host of control options gives full power to the helm in all conditions.

PRODUCT DETAILS

  • High definition SolarMAX IPS touchscreen, viewable from all angles, even with polarised glasses
  • Most powerful 8-core processor for a smoother, faster sailing experience
  • Separate modes for Cruising, Racing and Anchoring
  • Award-winning sailing features like SailSteer, LayLines, Routes and StartLine
  • Compatible with C-MAP DISCOVER X and REVEAL X charts
  • C-MAP-powered Safety Alerts
  • Full integration with HALO radars, B&G Sailing Processors, Autopilots, Triton2 and Nemesis instruments, wind sensors and more
  • B&G App integration with 12 months premium subscription when registering a C-MAP X Chart
  • Wi-Fi 5, Gigabit Ethernet & NMEA 2000 networking
  • Support for up to four IP video cameras
  • Set-up Wizard to get you up and running quickly

No exploded diagram available for this product.

9PIN HIGH SPEED SKIMMER L/H PK ASY

9PIN HIGH SPEED SKIMMER L/H PK ASY

9PIN HIGH SPEED SKIMMER M/H PK ASY

9PIN HIGH SPEED SKIMMER M/H PK ASY

ActiveImaging HD™ 2-in-1 Transducer

ActiveImaging HD™ 2-in-1 Transducer

ActiveImaging HD™ 3-in-1 FishReveal High/Wide Transducer

ActiveImaging HD™ 3-in-1 FishReveal High/Wide Transducer

ActiveImaging HD™ 3-in-1 FishReveal Transducer

ActiveImaging HD™ 3-in-1 FishReveal Transducer

ActiveImaging HD™ 3-in-1 Transducer

ActiveImaging HD™ 3-in-1 Transducer

B&G, Lowrance, Simrad TotalScan Skimmer Transducer

B&G, Lowrance, Simrad TotalScan Skimmer Transducer

B&G, Lowrance, Simrad TotalScan Thru Hull Transducer Medium High CHIRP

B&G, Lowrance, Simrad TotalScan Thru Hull Transducer Medium High CHIRP

B&G, Lowrance, Simrad TotalScan Thru Hull Transducer with Low and High CHIRP

B&G, Lowrance, Simrad TotalScan Thru Hull Transducer with Low and High CHIRP

B&G, Lowrance, Simrad XSonic Airmar B258 Bronze 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar B258 Bronze 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar B45 Bronze 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar B45 Bronze 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar M260 50-200 kHz In Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar M260 50-200 kHz In Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar P319 600W 50-200 kHz Plastic Through Hull

B&G, Lowrance, Simrad XSonic Airmar P319 600W 50-200 kHz Plastic Through Hull

B&G, Lowrance, Simrad XSonic Airmar P66 Plastic 50-200 khz Transom mount transducer

B&G, Lowrance, Simrad XSonic Airmar P66 Plastic 50-200 khz Transom mount transducer

B&G, Lowrance, Simrad XSonic Airmar P79 Plastic 50-200 kHz In Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar P79 Plastic 50-200 kHz In Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 kHz Through Hull 0 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 kHz Through Hull 0 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 12 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 12 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 20 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 20 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS260 1 kW 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar SS260 1 kW 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 0 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 0 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 12 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 12 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 20 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 20 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar TM260 Plastic 50-200 khz Transom mount transducer

B&G, Lowrance, Simrad XSonic Airmar TM260 Plastic 50-200 khz Transom mount transducer

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 0 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 0 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 12 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 12 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 20 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 20 degree tilt

B&G, Lowrance, Simrad XSonic Skimmer HDI 50-200, 455-800 kHz Transom Mount

B&G, Lowrance, Simrad XSonic Skimmer HDI 50-200, 455-800 kHz Transom Mount

B&G, Lowrance, Simrad XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount

B&G, Lowrance, Simrad XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount

Image coming soon

Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable

Lowrance Airmar TM150M Transom-Mount Transducer

Lowrance Airmar TM150M Transom-Mount Transducer

Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer

Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer

Image coming soon

Lowrance HST - DFSBL 50/200kHz transom-mount skimmer depth/temp

Image coming soon

Lowrance HST - WSBL 83/200kHz transom-mount skimmer depth/temp

Lowrance PTI-WBL - Ice transducer with Blue connector

Lowrance PTI-WBL - Ice transducer with Blue connector

Lowrance, Simrad - HDI Bronze Thru Hull Transducer Blue Plug 0 deg Tilt

Lowrance, Simrad - HDI Bronze Thru Hull Transducer Blue Plug 0 deg Tilt

Lowrance, Simrad - HDI Bronze Thru Hull Transducer Blue Plug 20 deg Tilt

Lowrance, Simrad - HDI Bronze Thru Hull Transducer Blue Plug 20 deg Tilt

Lowrance, Simrad Airmar B150M Thru-Hull Transducer 12-degree

Lowrance, Simrad Airmar B150M Thru-Hull Transducer 12-degree

Lowrance, Simrad Airmar B150M Thru-Hull Transducer 20-degree

Lowrance, Simrad Airmar B150M Thru-Hull Transducer 20-degree

Lowrance, Simrad Airmar B75H 12 Degree Tilt Bronze Thru Hull Chirp 10m Cable

Lowrance, Simrad Airmar B75H 12 Degree Tilt Bronze Thru Hull Chirp 10m Cable

Lowrance, Simrad Airmar B75M 12 Degree Tilt Thru Hull Chirp 10m Cable

Lowrance, Simrad Airmar B75M 12 Degree Tilt Thru Hull Chirp 10m Cable

Lowrance, Simrad Blue Plug Skimmer HDI 50-200, 455-800 kHz Transom Mount

Lowrance, Simrad Blue Plug Skimmer HDI 50-200, 455-800 kHz Transom Mount

Lowrance, Simrad Blue Plug Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer

Lowrance, Simrad Blue Plug Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer

Lowrance, Simrad LSS-2 - StructureScan HD Skimmer transducer

Lowrance, Simrad LSS-2 - StructureScan HD Skimmer transducer

Lowrance, Simrad Plastic StructureScan HD thru-hull transducer

Lowrance, Simrad Plastic StructureScan HD thru-hull transducer

Lowrance, Simrad Stainless Steel StructureScan HD Pair off thru-hull transducers

Lowrance, Simrad Stainless Steel StructureScan HD Pair off thru-hull transducers

Lowrance, Simrad Stainless Steel StructureScan HD Sonar thru-hull transducer.

Lowrance, Simrad Stainless Steel StructureScan HD Sonar thru-hull transducer.

Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 0 Degree Tilt

No spares or accessories listed for this product.

B&G H5000 Pilot Computer

B&G H5000 Pilot Computer

B&G Halo20 Pulse Compression Radar

B&G Halo20 Pulse Compression Radar

Image coming soon

B&G Halo20+ Pulse Compression Radar

B&G, Simrad NAC-2 Autopilot Computer

B&G, Simrad NAC-2 Autopilot Computer

B&G, Simrad NAC-3 Autopilot Computer

B&G, Simrad NAC-3 Autopilot Computer

Lowrance Halo 24 Radar

Lowrance Halo 24 Radar

Display

Backlight ColorWhite
Display Size10 inches
Screen Brightness>1200 nits
Viewing Angles80° top/bottom, 80° left/right

Connectivity

BluetoothBluetooth 4.0 with support for Bluetooth Classic (currently not used)
Ethernet Ports1 port (X-Coded M12 GbE), 1 port (yellow, 5-pin)
Wi-FiWi-Fi 5 (IEEE 802.11ax)
NMEA 2000 Connectivity1 x NMEA 2000 Micro-C port, 1 LEN
SD Card Storage2x (microSD, SDHC), 1 x USB port
VideoVideo In, Video out via USB. IP Cameras: IPCAM-1, FLIR 232/300 series, ONVIF IP Cameras

Cartography

Chart FormatC-MAP Tile (CMT) Discover X, Reveal X
Charts SupportedC-MAP Discover X, C-MAP Reveal X. Third party charts CMOR, StrikeLines (check with provider for available content)

Electrical

Recommended Fuse Rating5 A
Supply Voltage12/24 V DC (10 - 31.2 V DC)

Environment

HumidityIEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Operating Temperature Range-15°C to 55°C (5°F to 131°F)
Shock & Vibration100,000 cycles of 20 G
Storage Temperature Range-20°C to 60°C (-4°F to 140°F)
Waterproof ratingIPX6 and IPX7

GPS

Correction10 Hz high speed update (internal)
GPS Receiver Channels32 Channels
Position AccuracyHorizontal Accuracy 3 m (9.8 ft)
Update rate10 Hz

MFD

AISReceive AIS data over NMEA 2000
AutopilotNAC-1, NAC-2, NAC-3, NAC-D compatible
Digital SwitchingCZone / DDS
GPS10 Hz GNSS receiver for GPS and GLONASS, supports Galileo, Beidou, QZSS, SBAS (WAAS)
Sonar CompatibilityNo built-in echosounder ports. Compatible with Network Sonar modules S3100, S5100, other MFDs with echosounder ports
Waypoints, Routes, Tracks10,000 waypoints; 75,000 trackpoints; 75 saved tracks; 125 routes
WeatherSirius XM via WM4 module (USA only)

Physical

Compass Safe65 cm (2.1 ft)
Dimensions W x H x DSee model-specific B&G installation manual for exact dimensions
Mounting TypeBracket mount (bracket supplied), rear mount (brackets supplied)

Other

InterfaceHybrid multi-touch screen, buttons, and rotary knob
Warranty Period2 Years

No videos available for this product.

What charts does the Zeus SR 10 support?
The Zeus SR is compatible with C-MAP DISCOVER X and REVEAL X cartography as well as Navionics charts. It has two microSD card slots supporting cards up to 256 GB in FAT32, ExFAT or NTFS format for charts, software updates and user data.
Can I connect a HALO radar to the Zeus SR 10?
Yes. The Zeus SR integrates fully with B&G HALO radars, B&G Sailing Processors, autopilots, Triton 2 and Nemesis instruments and wind sensors. It has both a Gigabit Ethernet (X-coded M12) port and a yellow 5-pin Ethernet port for radar and network devices.
Does the Zeus SR support IP cameras and video?
Yes. The Zeus SR supports up to four IP video cameras, has a dedicated analogue video input, and can output video via an optional USB to video adapter.
What makes the Zeus SR different from the Zeus S?
The Zeus SR is the more powerful range, using an 8-core processor, Gigabit Ethernet, video input and support for up to four IP cameras. The Zeus S is the more streamlined range and the Zeus S Ultrawide models add an immersive ultrawide screen. All run the same award-winning B&G sailing features and C-MAP X charts.
Can the Zeus SR 10 run on a 24 V system?
Yes. The Zeus SR is designed to run on 12 or 24 V DC (10 to 31.2 V DC), protected against reverse polarity and over-voltage, and should be fitted with a 5 A fuse on the positive supply.
