B&G, Lowrance, Simrad XSonic Airmar P66 Plastic 50-200 khz Transom mount transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

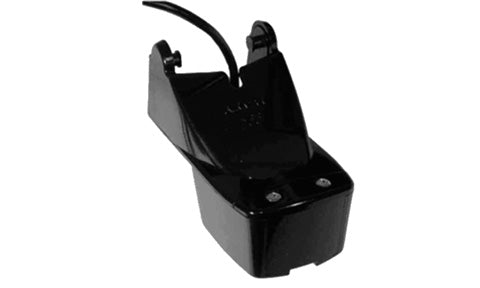

B&G, Lowrance and Simrad XSonic Airmar P66 Plastic 50-200 kHz Transom mount transducer 9 Pin connector. Multisensor features our 50/200 kHz, dual-frequency, single-ceramic element. This hydrodynamic housing with a rounded nose reduces the turbulence under the transducer’s face for accurate high-speed readings and clear display images.
PRODUCT DETAILS
- 600 W dual-frequency 50/200 kHz plastic transom-mount transducer
- Oversized single ceramic element for accurate high-speed readings
- Hydrodynamic rounded-nose housing reduces turbulence for clear images
- Provides depth and water temperature
- Kick-up bracket protects the transducer on impact
- 9-pin connector for B&G, Lowrance and Simrad displays
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
B&G Zeus S-12 Ultrawide 12 Inch Display
B&G Zeus3S 9 MFD
Lowrance Elite FS 7 No Transducer
Lowrance Elite-7 Ti2 No Transducer
Lowrance Elite-9 Ti Fishfinder Chartplotter TotalScan N Europe C-Map
Lowrance HDS PRO 9. No Transducer
Lowrance HDS-7 Live No Transducer
S3100 Sonar Module
Simrad NSS 4 - 10" Chartplotter and Fishfinder
Simrad NSS9 EVO3S 9 Inch MFD
Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer
B&G Zeus SR - 10" Chartplotter
Lowrance HDS-7 Carbon ROW with No Transducer
Lowrance HDS-7 Gen3 Multi -Touch Fishfinder Chartplotter no Transducer
Lowrance, Simrad, B&G SonarHub Sounder Module
Simrad NSS7 evo2 Combo 7-inch Multi-function Display
Simrad S2009 Dedicated 9-inch portrait display Fish Finder
Sonar
| Frequency | 50 / 200 kHz (dual frequency) |
| RMS Power | 600 W |
| Element Configuration | Oversized single ceramic element |
Sensor
| Functions | Depth and water temperature |
Installation
| Mounting | Transom mount with kick-up bracket |
| Housing Material | Plastic |
| Transom Angle Range | 2° to 22° |
| Acoustic Window | Layered plastic / urethane |
| Connector | 9-pin |
Physical
| Weight | 0.5 kg (1.1 lb) |
Application
| Recommended Boat Size | Up to 12 m (40 ft) |
Sonar Capability
| Traditional | Yes |
