ActiveImaging HD™ 3-in-1 Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

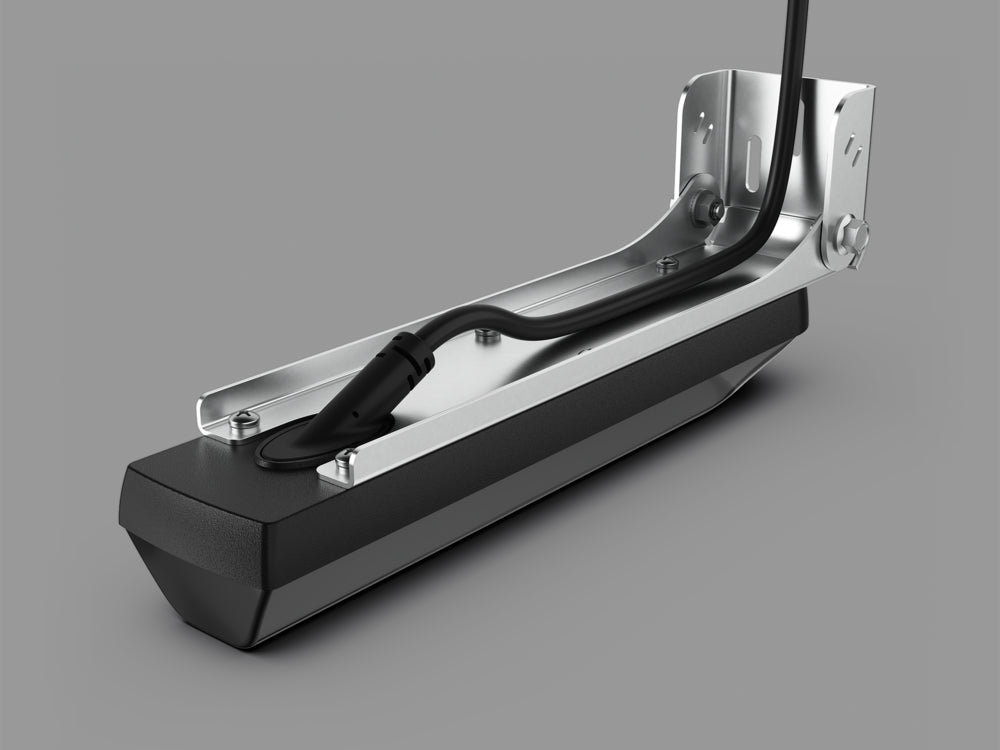

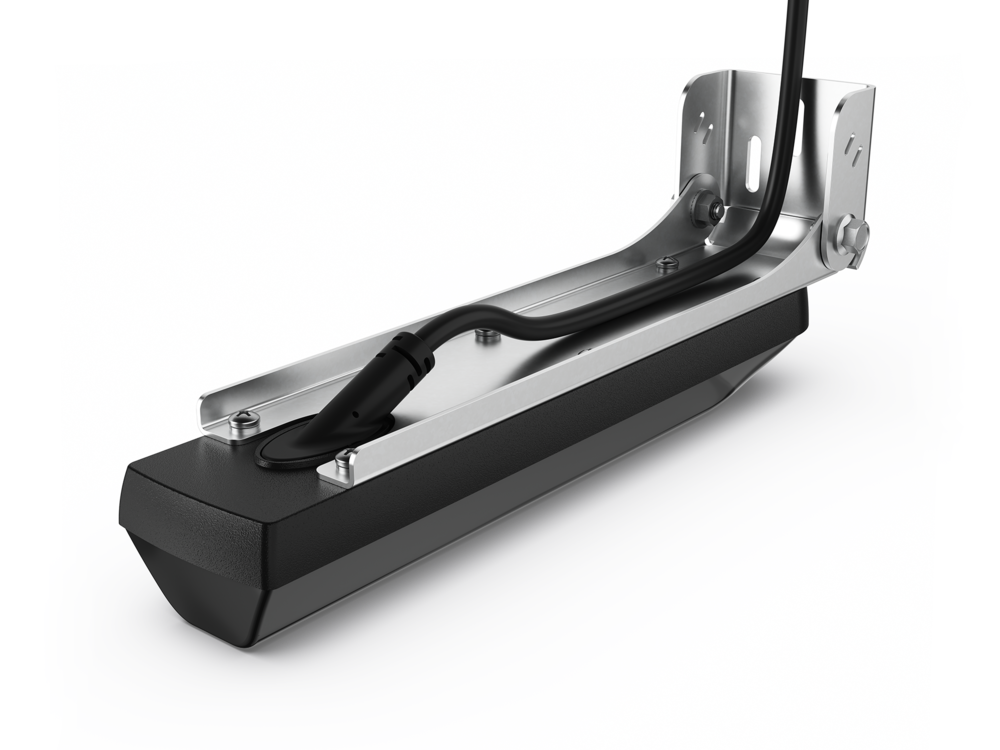

The ActiveImaging HD 3-in-1 transducer combines three Lowrance sonar technologies in a single transom-mount housing: Chirp sonar, SideScan and DownScan Imaging. High-definition imaging at up to 1.2 MHz delivers exceptionally clear pictures of fish and bottom structure, while FishReveal merges Chirp targets with DownScan detail so fish are easier to identify below the boat.
Chirp runs on the medium and high 83/200 kHz bands, with SideScan and DownScan at 455 kHz and 800 kHz up to 1.2 MHz for the sharpest near-field detail. The transducer mounts on the transom or a jackplate and connects through a 9-pin plug. Used with HDS LIVE, HDS Carbon or Elite FS displays an S3100 sonar module is required.
PRODUCT DETAILS
- Chirp, SideScan and DownScan Imaging in one transducer
- High-definition imaging up to 1.2 MHz
- FishReveal merges Chirp targets with DownScan detail
- Chirp on medium and high 83/200 kHz bands
- 9-pin connector; S3100 module required for HDS LIVE, HDS Carbon and Elite FS
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Sonar
| Chirp frequencies | Medium and High Chirp (83/200 kHz) |
| Imaging frequencies | 455 kHz, 800 kHz, up to 1.2 MHz |
| Sonar modes | Chirp, SideScan, DownScan Imaging, FishReveal |
Connectivity
| Connector | 9-pin |
| Module requirement | S3100 sonar module required for HDS LIVE, HDS Carbon and Elite FS |
Physical
| Mounting style | Transom or jackplate |
Sonar Capability
| Downscan | Yes |
| Sidescan | Yes |
| Chirp | Yes |
| Traditional | Yes |
