Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 0 Degree Tilt
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

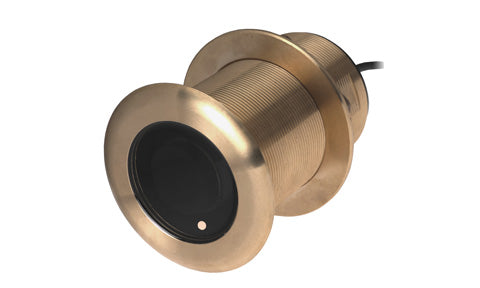

The Airmar B150M is a compact 300 W Medium CHIRP thru-hull transducer that pairs a wide search beam with broadband target detail. Its single ceramic element sweeps 95 to 155 kHz, giving good fish separation and bottom definition for inshore and coastal fishing to a maximum of around 600 ft (183 m). The wide 26 to 17 degree beam covers plenty of water, making it a popular choice for trailerable and mid-size boats.
The bronze housing suits fibreglass and wood hulls, and this 0 degree version is matched to hulls with 0 to 7 degrees of deadrise so the element fires vertically. A built-in depth and water-temperature sensor is included. The transducer terminates in a Navico XSonic black 9-pin connector on a 10 m cable for a direct connection to compatible 9-pin Simrad and Lowrance displays; legacy 7-pin XSonic displays connect using the 000-13977-001 adapter cable.
PRODUCT DETAILS
- Medium CHIRP 95 to 155 kHz for inshore and coastal fishing
- 300 W peak power with a wide 26 to 17 degree beam
- Bottom tracking to around 600 ft (183 m)
- Low-profile bronze thru-hull housing for fibreglass and wood hulls
- 0 degree element for hulls with 0 to 7 degrees deadrise
- Built-in depth and temperature sensor
- Navico XSonic 9-pin connector on a 10 m cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
B&G Zeus S-12 Ultrawide 12 Inch Display
B&G Zeus3S 9 MFD
Lowrance Elite FS 7 No Transducer
Lowrance Elite-7 Ti2 No Transducer
Lowrance Elite-9 Ti Fishfinder Chartplotter TotalScan N Europe C-Map
Lowrance HDS PRO 9. No Transducer
Lowrance HDS-7 Live No Transducer
S3100 Sonar Module
Simrad NSS 4 - 10" Chartplotter and Fishfinder
Simrad NSS9 EVO3S 9 Inch MFD
Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer
Simrad S5100 high-performance CHIRP sonar module
B&G Zeus SR - 10" Chartplotter
Lowrance HDS-7 Carbon ROW with No Transducer
Lowrance HDS-7 Gen3 Multi -Touch Fishfinder Chartplotter no Transducer
Lowrance, Simrad, B&G SonarHub Sounder Module
Simrad NSS7 evo2 Combo 7-inch Multi-function Display
Simrad S2009 Dedicated 9-inch portrait display Fish Finder
Sonar
| Type | Single-element Medium CHIRP thru-hull |
| Depth & temperature | Yes |
Frequencies
| CHIRP band | Medium CHIRP, 95 kHz to 155 kHz |
Beam
| Beamwidth | 26 to 17 degrees |
Power
| Peak power | 300 W |
| Maximum depth | 183 m (600 ft) |
Connector
| Connector | Navico XSonic black 9-pin |
Cable
| Cable length | 10 m (33 ft) |
Physical
| Housing | Bronze thru-hull |
| Element tilt | 0 degrees |
| Hull deadrise | 0 to 7 degrees |
| Hull material | Fibreglass or wood |
| Weight | 1.4 kg (3 lb) |
