B&G, Lowrance, Simrad XSonic Airmar B45 Bronze 50-200 khz Through Hull Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

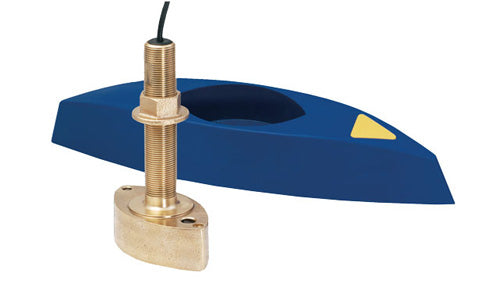

B&G, Lowrance and Simrad XSonic Airmar B45 bronze 50-200 kHz through hull transducer 9 Pin connector. The B45 is our smallest and most economical, dual-frequency, bronze, stem transducer. Its streamlined shape deflects aerated water from the transducer’s face for strong return echoes and clear display images. An Airmar High-Performance Fairing is recommended for all installations to get the best possible results.
PRODUCT DETAILS
- Compact 600 W dual-frequency 50/200 kHz bronze through-hull transducer
- Airmar's smallest bronze stem, streamlined to deflect aerated water
- Good sensitivity in an economical, low-profile housing
- Built-in depth and fast-response water-temperature sensor (+/- 0.2 C)
- High-performance fairing recommended for best results
- 9-pin connector for B&G, Lowrance and Simrad displays
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.

B&G Zeus S-12 Ultrawide 12 Inch Display

B&G Zeus3S 9 MFD

Lowrance Elite FS 7 No Transducer

Lowrance Elite-7 Ti2 No Transducer

Lowrance Elite-9 Ti Fishfinder Chartplotter TotalScan N Europe C-Map

Lowrance HDS PRO 9. No Transducer

Lowrance HDS-7 Live No Transducer

S3100 Sonar Module

Simrad NSS 4 - 10" Chartplotter and Fishfinder

Simrad NSS9 EVO3S 9 Inch MFD

Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer

B&G Zeus SR - 10" Chartplotter

Lowrance HDS-7 Carbon ROW with No Transducer

Lowrance HDS-7 Gen3 Multi -Touch Fishfinder Chartplotter no Transducer

Lowrance, Simrad, B&G SonarHub Sounder Module

Simrad NSS7 evo2 Combo 7-inch Multi-function Display

Simrad S2009 Dedicated 9-inch portrait display Fish Finder
Sonar
| Frequency | 50 / 200 kHz (dual frequency) |
| RMS Power | 600 W |
| Element Configuration | Single ceramic element |
Sensor
| Functions | Depth and water temperature |
| Temperature Accuracy | +/- 0.2 C (+/- 0.1 F) |
Installation
| Housing Material | Bronze |
| Maximum Hull Deadrise | Up to 26° with fairing |
| Acoustic Window | Urethane |
| Connector | 9-pin |
Physical
| Weight | 2.5 kg (5.5 lb) |
Application
| Recommended Boat Size | Planing-hull powerboats and cruising sailboats up to 9 m (30 ft) |
Sonar Capability
| Traditional | Yes |
