ActiveImaging HD™ 2-in-1 Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

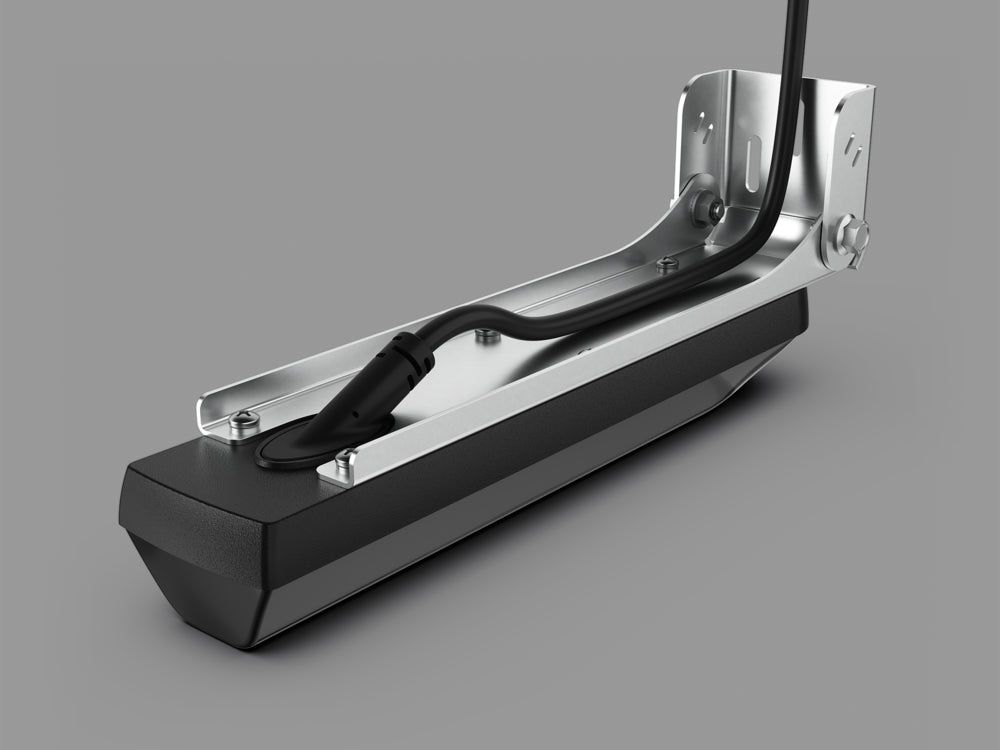

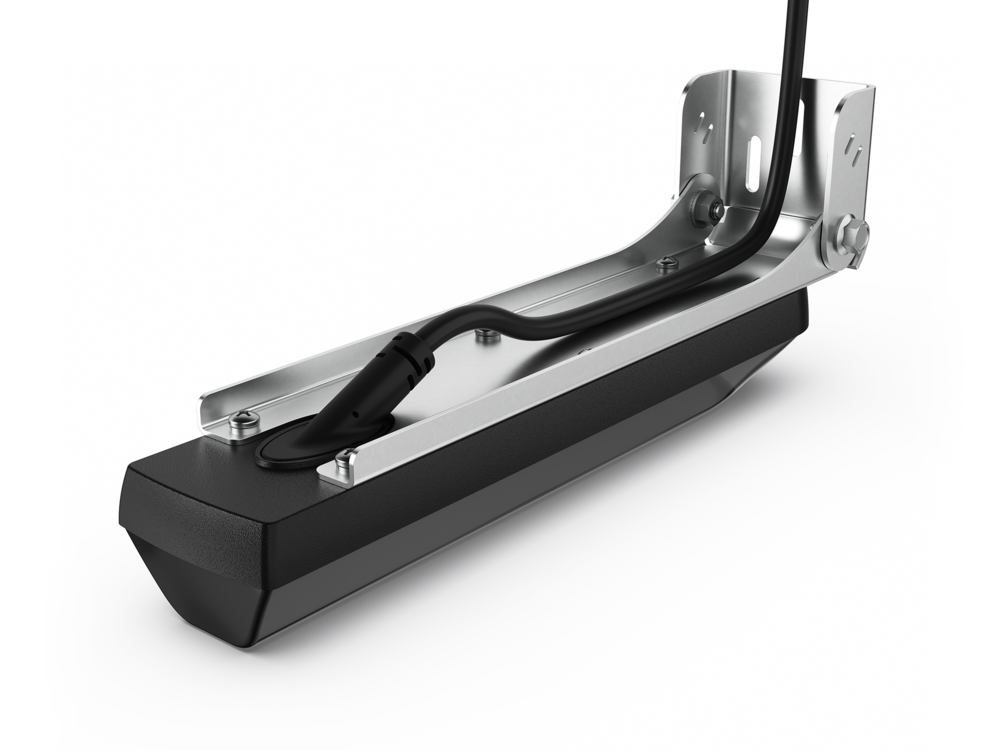

The ActiveImaging HD 2-in-1 transducer pairs high-definition SideScan and DownScan Imaging in a single transom-mount housing. Imaging at up to 1.2 MHz delivers crisp pictures of fish and structure out to the sides and directly below the boat, ideal where you want detailed imaging without a built-in Chirp element.
SideScan and DownScan run at 455 kHz and 800 kHz up to 1.2 MHz. Because there is no traditional Chirp element, a separate sonar transducer is needed for conventional 2D sonar and DownScan FishReveal. The transducer mounts on the transom or a jackplate and connects through a 9-pin plug; an S3100 sonar module is required with HDS LIVE, HDS Carbon and Elite FS displays.
PRODUCT DETAILS
- High-definition SideScan and DownScan Imaging
- Imaging up to 1.2 MHz for sharp detail
- Imaging frequencies 455 kHz and 800 kHz
- Separate transducer needed for traditional 2D sonar
- 9-pin connector; S3100 module required for HDS LIVE, HDS Carbon and Elite FS
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Physical
| Mounting style | Transom or jackplate |
Sonar
| Imaging frequencies | 455 kHz, 800 kHz, up to 1.2 MHz |
| Sonar modes | SideScan, DownScan Imaging |
| Traditional sonar | Requires separate transducer |
Connectivity
| Connector | 9-pin |
| Module requirement | S3100 sonar module required for HDS LIVE, HDS Carbon and Elite FS |
Sonar Capability
| Downscan | Yes |
| Sidescan | Yes |
