Navico

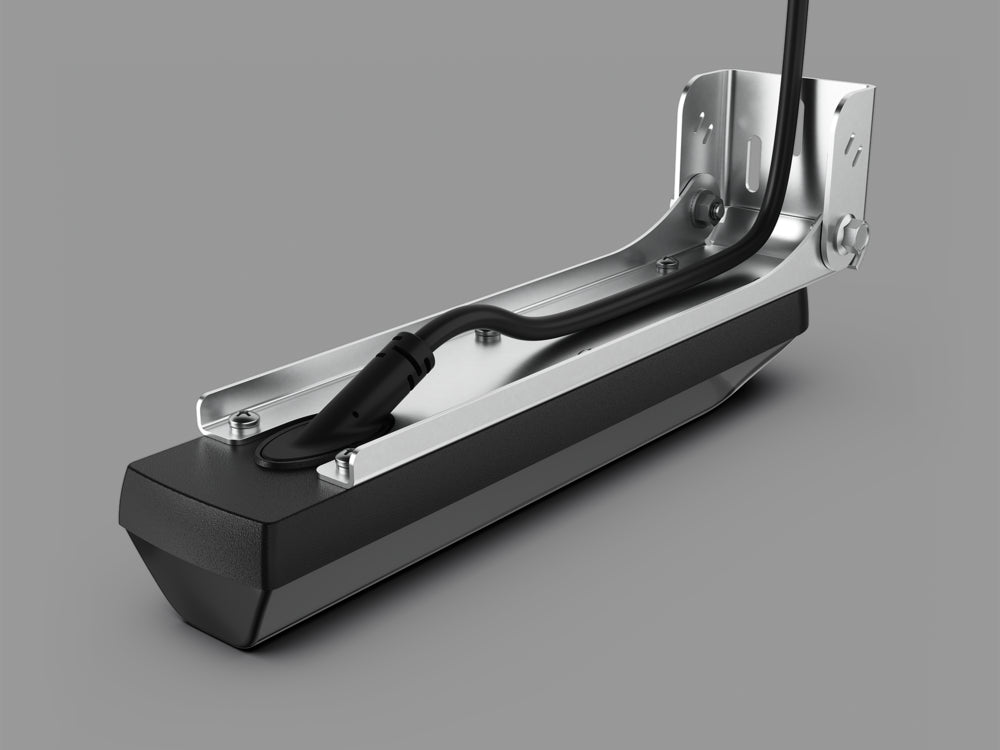

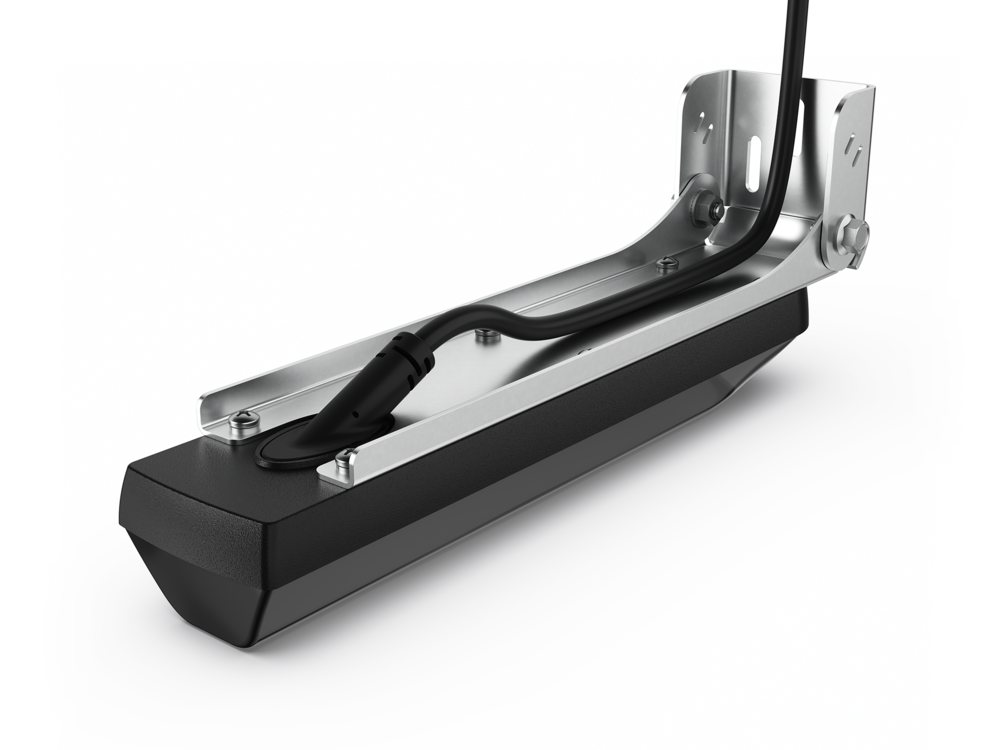

ActiveImaging HD™ 3-in-1 FishReveal Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Lowrance ActiveImaging HD 3-in-1 transducer brings together three sonar technologies in one transom-mount unit: Lowrance CHIRP for fish targeting and bottom tracking, plus high-definition SideScan and DownScan Imaging for a clear picture of structure to the sides and directly below. A redesigned element boosts signal clarity for sharper returns than the previous generation.
FishReveal overlays CHIRP fish arches onto the detailed DownScan image, making fish easier to pick out against bottom and cover. With imaging frequencies up to 1.2MHz it produces crisp, high-resolution views, and it pairs with current Lowrance HDS PRO and Simrad displays.
PRODUCT DETAILS
- Three sonar types in one: CHIRP, SideScan and DownScan Imaging
- High-definition imaging up to 1.2MHz
- FishReveal overlays CHIRP fish arches onto DownScan
- Redesigned element for improved signal clarity
- Transom-mount installation
- Pairs with Lowrance HDS PRO and Simrad displays
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Sonar
| Sonar types | CHIRP, SideScan, DownScan Imaging |
| Imaging frequencies | 455/800kHz up to 1.2MHz |
| FishReveal | CHIRP arches overlaid on DownScan |
Physical
| Mounting style | Transom mount |
Connectivity
| Compatibility | Lowrance HDS PRO and Simrad displays |
Sonar Capability
| Downscan | Yes |
| Sidescan | Yes |
| Chirp | Yes |
| Traditional | Yes |
No videos available for this product.
No downloads available for this product.
