ActiveImaging HD™ 3-in-1 FishReveal High/Wide Transducer ActiveImaging HD™ 3-in-1 FishReveal High/Wide Transducer
ActiveImaging HD™ 3-in-1 FishReveal High/Wide Transducer

Navico

ActiveImaging HD™ 3-in-1 FishReveal High/Wide Transducer

£550.00
Tax included. Shipping calculated at checkout.
000-16061-001
A 3-in-1 transom-mount transducer combining Lowrance CHIRP, SideScan and DownScan Imaging with a wider High/Wide beam. High-frequency imaging to 1.2MHz delivers detailed views to the side and below the boat.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Navico Extended Warranty

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

Extended cover is added to your order and confirmed with your warranty documentation.

Description

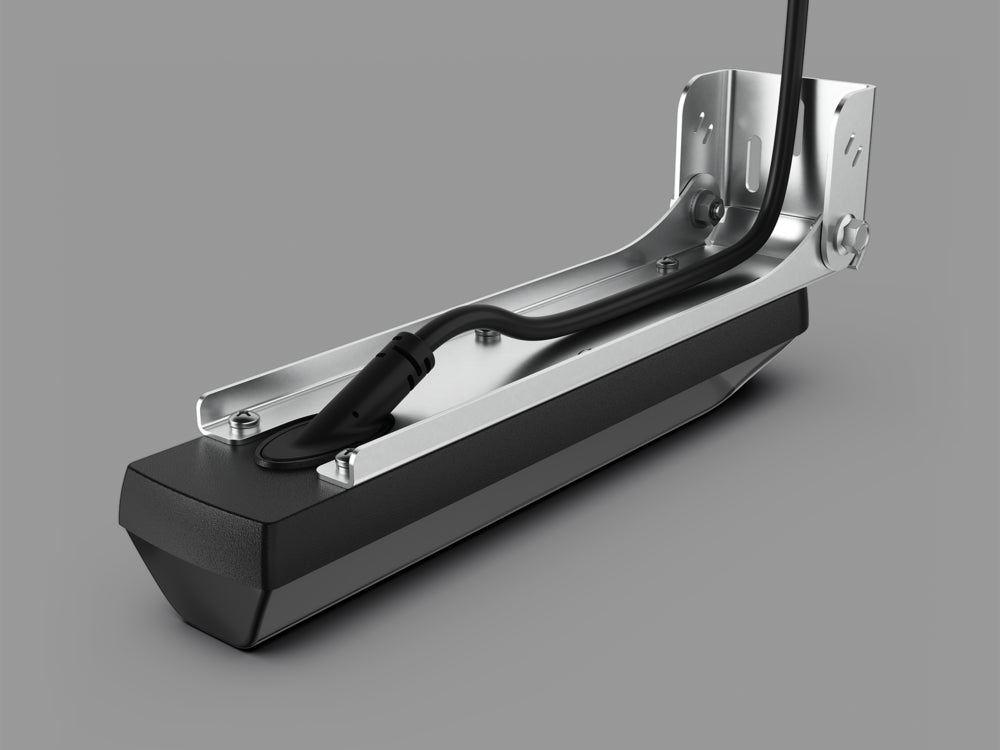

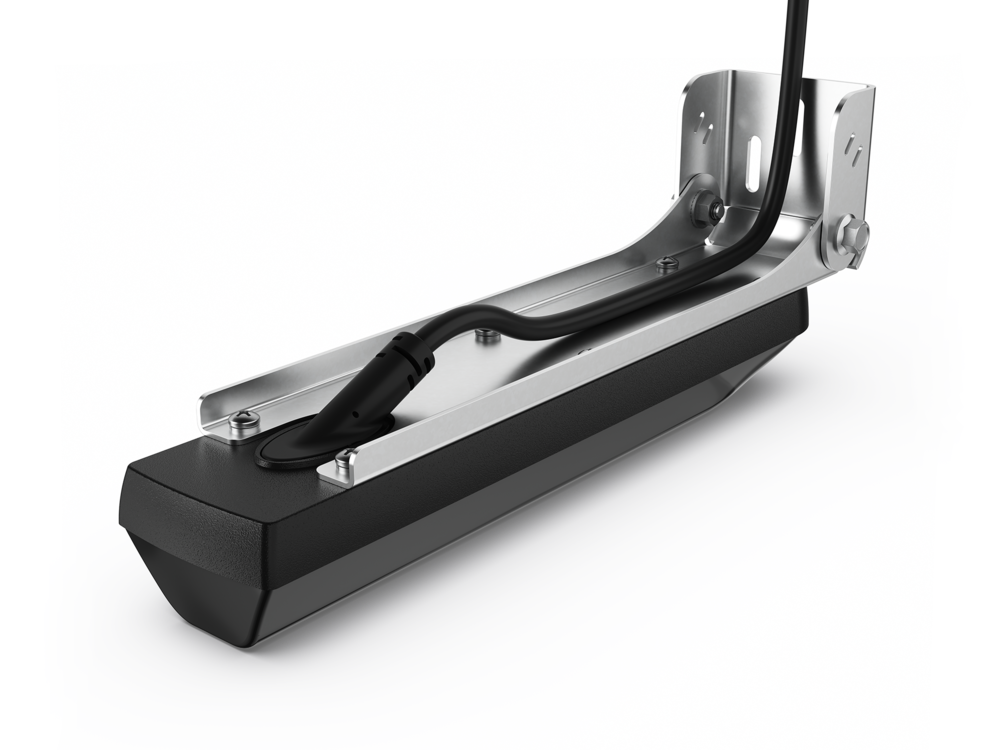

The Lowrance ActiveImaging HD 3-in-1 FishReveal High/Wide transducer brings three sonar technologies together in a single transom-mount unit: Lowrance CHIRP, SideScan and DownScan Imaging. The High/Wide configuration broadens the CHIRP beam for fuller coverage under the boat, while high-frequency imaging up to 1.2MHz produces sharp, photo-like detail of structure to the side and below.

FishReveal combines the target-finding strength of CHIRP sonar with the clarity of DownScan Imaging on one screen, making fish easier to pick out against cover. The transducer works directly with HDS PRO, or with HDS LIVE, HDS Carbon and Elite FS when paired with an S3100 module, and includes a water-temperature sensor for complete on-water information.

PRODUCT DETAILS

  • Three sonar technologies in one transducer: CHIRP, SideScan and DownScan Imaging
  • High/Wide CHIRP beam for broader coverage under the boat
  • High-frequency SideScan and DownScan Imaging up to 1.2MHz
  • FishReveal combines CHIRP targets with DownScan clarity on one view
  • Built-in water-temperature sensor
  • Direct support on HDS PRO; S3100 module for HDS LIVE, HDS Carbon and Elite FS

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

B&G Zeus SR - 10" Chartplotter

B&G Zeus SR - 10" Chartplotter

Lowrance Elite FS 7 No Transducer

Lowrance Elite FS 7 No Transducer

Lowrance HDS PRO 9. No Transducer

Lowrance HDS PRO 9. No Transducer

Lowrance HDS-7 Carbon ROW with No Transducer

Lowrance HDS-7 Carbon ROW with No Transducer

Lowrance HDS-7 Live No Transducer

Lowrance HDS-7 Live No Transducer

S3100 Sonar Module

S3100 Sonar Module

Simrad NSS 4 - 10" Chartplotter and Fishfinder

Simrad NSS 4 - 10" Chartplotter and Fishfinder

Simrad NSS9 EVO3S 9 Inch MFD

Simrad NSS9 EVO3S 9 Inch MFD

Sonar

CHIRP frequencyHigh/Wide CHIRP (200kHz)
Imaging frequency455/800kHz and up to 1.2MHz SideScan and DownScan

Physical

MountTransom mount
SensorWater temperature

Connectivity

CompatibilityHDS PRO direct; S3100 module for HDS LIVE, HDS Carbon, Elite FS

Sonar Capability

DownscanYes
SidescanYes
ChirpYes
TraditionalYes

No videos available for this product.

No downloads available for this product.

What sonar does this transducer provide?
It provides three technologies in one: Lowrance CHIRP, SideScan and DownScan Imaging.
What is different about the High/Wide version?
The High/Wide configuration broadens the CHIRP beam for fuller coverage under the boat.
What imaging frequency does it reach?
High-frequency SideScan and DownScan Imaging reach up to 1.2MHz.
Which displays does it work with?
It works directly with HDS PRO, or with HDS LIVE, HDS Carbon and Elite FS via an S3100 module.
