B&G, Lowrance, Simrad XSonic Airmar B258 Bronze 50-200 khz Through Hull Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

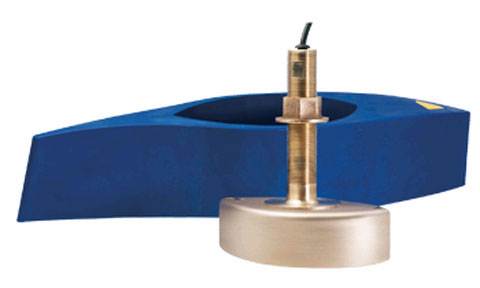

B&G, Lowrance and Simrad XSonic Airmar B258 bronze 50-200 kHz 1Kw through hull transducer 9 Pin connector. The B258 features 4 internal ceramics for increased sensitivity and better deep water performance. The included fairing block ensures uninterrupted performance, even at speed.
PRODUCT DETAILS
- 1 kW dual-frequency 50/200 kHz bronze through-hull transducer
- Four-ceramic-element construction for high sensitivity and deep-water performance
- Narrow beams clearly separate individual fish and bottom structure
- Built-in depth and fast-response water-temperature sensing
- Supplied with a high-performance fairing block for clear images at speed
- 9-pin connector for B&G, Lowrance and Simrad displays
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
B&G Zeus S-12 Ultrawide 12 Inch Display
B&G Zeus3S 9 MFD
Lowrance Elite FS 7 No Transducer
Lowrance Elite-7 Ti2 No Transducer
Lowrance Elite-9 Ti Fishfinder Chartplotter TotalScan N Europe C-Map
Lowrance HDS PRO 9. No Transducer
Lowrance HDS-7 Live No Transducer
S3100 Sonar Module
Simrad NSS 4 - 10" Chartplotter and Fishfinder
Simrad NSS9 EVO3S 9 Inch MFD
Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer
Simrad S5100 high-performance CHIRP sonar module
B&G Zeus SR - 10" Chartplotter
Lowrance HDS-7 Carbon ROW with No Transducer
Lowrance HDS-7 Gen3 Multi -Touch Fishfinder Chartplotter no Transducer
Lowrance, Simrad, B&G SonarHub Sounder Module
Simrad NSS7 evo2 Combo 7-inch Multi-function Display
Simrad S2009 Dedicated 9-inch portrait display Fish Finder
Sonar
| Frequency | 50 / 200 kHz (dual frequency) |
| RMS Power | 1 kW |
| Beamwidth (50 kHz) | 15° x 21° |
| Beamwidth (200 kHz) | 3° x 5° |
| Maximum Depth | 647 m at 50 kHz / 294 m at 200 kHz |
| Element Configuration | Four ceramic elements |
Sensor
| Functions | Depth and water temperature |
Installation
| Housing Material | Bronze |
| Maximum Hull Deadrise | Up to 26° with fairing |
| Acoustic Window | Epoxy / urethane |
| Connector | 9-pin |
Physical
| Weight | 3.6 kg (7.9 lb) |
Application
| Recommended Boat Size | Sportfishing boats above 9 m (30 ft) |
Sonar Capability
| Traditional | Yes |
