This product has been discontinued by Simrad and is no longer available to buy.
Simrad

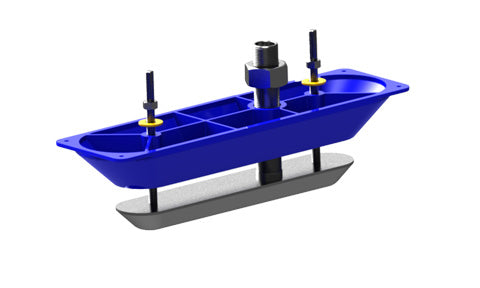

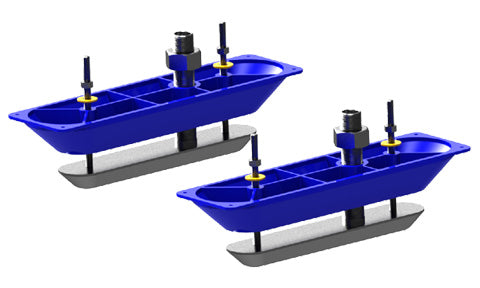

Lowrance, Simrad Plastic StructureScan HD thru-hull transducer
Description
This StructureScan HD plastic thru-hull transducer delivers detailed 455 and 800 kHz SideScan and DownScan Imaging of structure and bottom contours. DownScan resolves detail to around 300 ft (92 m), while SideScan reaches around 600 ft (183 m) on each side at 455 kHz. The low-profile plastic thru-hull housing is a permanent installation for a clean, drag-free fit.
This is a legacy StructureScan HD product. It connects directly to compatible Lowrance and Simrad displays and sonar modules, and the StructureScan 3D range has since superseded it for new installations.
PRODUCT DETAILS
- StructureScan HD: 455/800 kHz SideScan and DownScan Imaging
- DownScan detail to 300 ft and SideScan to 600 ft each side
- Low-profile plastic thru-hull housing
- 9 m (30 ft) cable
- Legacy product, superseded by StructureScan 3D
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
B&G Zeus3S 9 MFD
Lowrance Elite FS 7 No Transducer
Lowrance Elite-7 Ti2 No Transducer
Lowrance Elite-9 Ti Fishfinder Chartplotter TotalScan N Europe C-Map
Lowrance HDS PRO 9. No Transducer
Lowrance HDS-7 Carbon ROW with No Transducer
Lowrance HDS-7 Gen3 Multi -Touch Fishfinder Chartplotter no Transducer
Lowrance HDS-7 Live No Transducer
Lowrance, Simrad, B&G SonarHub Sounder Module
S3100 Sonar Module
Simrad NSS 4 - 10" Chartplotter and Fishfinder
Simrad NSS7 evo2 Combo 7-inch Multi-function Display
Simrad NSS9 EVO3S 9 Inch MFD
B&G Zeus S-12 Ultrawide 12 Inch Display
B&G Zeus SR - 10" Chartplotter
Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer
Sonar
| Type | StructureScan HD plastic thru-hull |
| Imaging | SideScan and DownScan Imaging |
Frequencies
| StructureScan | 455 and 800 kHz |
Power
| DownScan max depth | 92 m (300 ft) |
| SideScan range | 183 m (600 ft) at 455 kHz, 61 m (200 ft) at 800 kHz |
Cable
| Cable length | 9 m (30 ft) |
Physical
| Housing | Plastic thru-hull |
No videos available for this product.
No downloads available for this product.
No frequently asked questions for this product.
