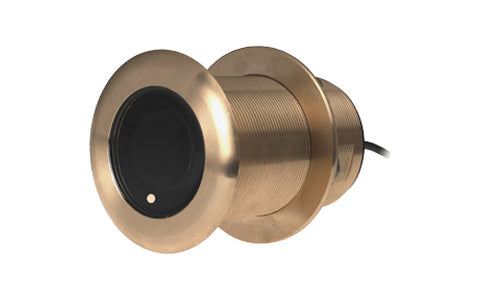

Lowrance, Simrad Airmar B75H 12 Degree Tilt Bronze Thru Hull Chirp 10m Cable

Name: Lowrance, Simrad Airmar B75H 12 Degree Tilt Bronze Thru Hull Chirp 10m Cable
Brand: Simrad
SKU: 000-12496-001
Availability: Discontinued

000-12496-001

The Airmar B75H is a low-profile bronze thru-hull single-element transducer delivering High CHIRP across 130 to 210 kHz at 600 W with depth and temperature sensing, giving sharp target detail to around 700 ft. This 12 degree version suits hulls with 8 to 15 degrees of deadrise and uses a blue 7-pin connector on a 10 m cable.

Description

The Airmar B75H is a 600 W High CHIRP thru-hull transducer built for crisp, high-resolution returns in shallow to mid-range water. Its single broadband ceramic element sweeps 130 to 210 kHz, resolving individual fish, bait and fine bottom structure to a maximum of around 700 ft (214 m). The narrow 15 to 9 degree beam keeps returns tight and detailed for confident target identification.

The compact bronze housing suits fibreglass and wood hulls, and this 12 degree version is matched to hulls with 8 to 15 degrees of deadrise so the element fires vertically. A built-in depth and water-temperature sensor is included. This version terminates in a legacy blue 7-pin connector on a 10 m cable; connection to current 9-pin XSonic Simrad and Lowrance displays uses the 000-13313-001 adapter cable.

PRODUCT DETAILS

High CHIRP 130 to 210 kHz for sharp target resolution
600 W peak power with a narrow 15 to 9 degree beam
Bottom tracking to around 700 ft (214 m)
Compact bronze thru-hull housing for fibreglass and wood hulls
12 degree element for hulls with 8 to 15 degrees deadrise
Built-in depth and temperature sensor
Blue 7-pin connector on a 10 m cable

No exploded diagram available for this product.

No compatible transducers listed for this product.

Lowrance, Simrad 7 pin Transducer to 9 pin Sonar Airmar XDCRS

Lowrance HDS-7 Carbon ROW with No Transducer

Lowrance HDS-7 Gen3 Multi -Touch Fishfinder Chartplotter no Transducer

Lowrance, Simrad, B&G SonarHub Sounder Module

Simrad NSS7 evo2 Combo 7-inch Multi-function Display

Simrad S2009 Dedicated 9-inch portrait display Fish Finder

B&G Zeus S-12 Ultrawide 12 Inch Display

B&G Zeus SR - 10" Chartplotter

B&G Zeus3S 9 MFD

Lowrance Elite FS 7 No Transducer

Lowrance Elite-7 Ti2 No Transducer

Lowrance Elite-9 Ti Fishfinder Chartplotter TotalScan N Europe C-Map

Lowrance HDS PRO 9. No Transducer

Lowrance HDS-7 Live No Transducer

S3100 Sonar Module

Simrad NSS 4 - 10" Chartplotter and Fishfinder

Simrad NSS9 EVO3S 9 Inch MFD

Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer

Simrad S5100 high-performance CHIRP sonar module

Sonar

Type	Single-element High CHIRP thru-hull
Depth & temperature	Yes

Frequencies

CHIRP band

High CHIRP, 130 kHz to 210 kHz

Beam

Beamwidth

15 to 9 degrees

Power

Peak power	600 W
Maximum depth	214 m (700 ft)

Connector

Connector

Blue 7-pin

Cable

Cable length

10 m (33 ft)

Physical

Housing	Bronze thru-hull
Element tilt	12 degrees
Hull deadrise	8 to 15 degrees
Hull material	Fibreglass or wood

No videos available for this product.

No downloads available for this product.

What frequency does the B75H operate at?

The B75H is a High CHIRP transducer operating across 130 to 210 kHz, giving sharp target resolution.

What is the power rating and maximum depth?

It has a peak power of 600 W and can track the bottom to around 700 ft (214 m) in good conditions.

Which hull does it suit?

The 12 degree element suits hulls with 8 to 15 degrees of deadrise. The bronze housing fits fibreglass and wood hulls.

Does it measure depth and water temperature?

Yes. The B75H has a built-in depth and water-temperature sensor.

What connector does it use?

This version uses a blue 7-pin connector on a 10 m cable. To connect it to a current 9-pin XSonic display, use the 000-13313-001 adapter cable.
